Vacuum generator
VADMI-300
162511
GTIN 4052568131333
Vendor Festo
- Nominal width of Laval nozzle
- 3 mm
- Max. vacuum
- 85 %
- Operating pressure
- 2 bar - 8 bar
Regular price
$751.22
Unit price
VADMI-300 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VADMI-300
Regular price
$751.22
Unit price
VADMI-300 is backordered and will ship as soon as it is back in stock.

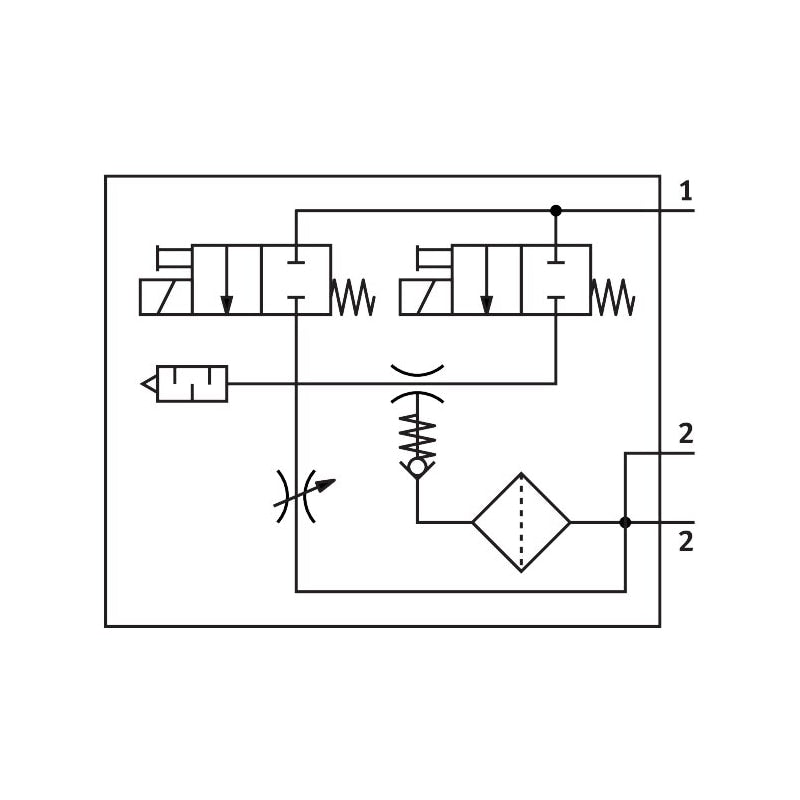

vacuum generator VADMI-300 With integrated solenoid valve for vacuum On/Off and ejector pulse Nominal size, Laval nozzle=3 mm, Grid dimension=22 mm, Design, silencer=closed, Assembly position=Any, Ejector characteristic=High vacuum
| Nominal size, Laval nozzle | 3 mm |
|---|---|
| Grid dimension | 22 mm |
| Design, silencer | closed |
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Grade of filtration | <= 40 µm |
| Manual override | Pushing |
| Integrated function | Ejector pulse valve, electricalFlow control valveElectrical on-off valveFilterNon-return valve |
| Valve function | closed |
| Operating pressure | 2 ... 8 bar |
| Max. vacuum | 0.85 |
| Nominal operating pressure | 6 bar |
| Air supply time at nominal operating pressure | 0.2 s |
