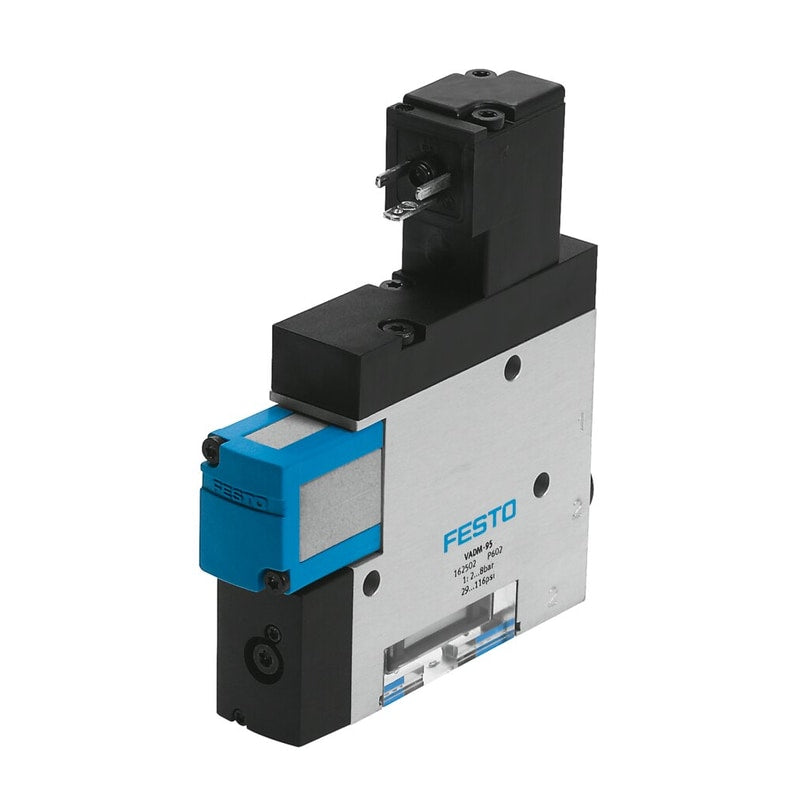

Vacuum generator
VADM-95
162502
GTIN 4052568131241
Vendor Festo
- Nominal width of Laval nozzle
- 0.95 mm
- Max. vacuum
- 85 %
- Operating pressure
- 2 bar - 8 bar
Regular price
$370.68
Unit price
VADM-95 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VADM-95
Regular price
$370.68
Unit price
VADM-95 is backordered and will ship as soon as it is back in stock.

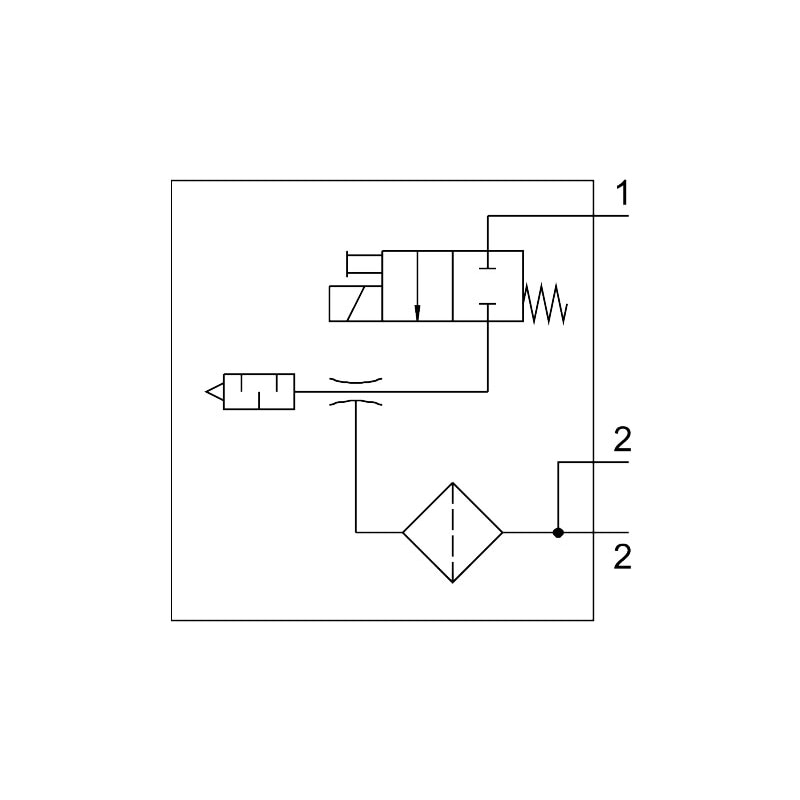

vacuum generator VADM-95 With integrated solenoid valve for vacuum On/Off Nominal size, Laval nozzle=0,95 mm, Grid dimension=18 mm, Design, silencer=closed, Assembly position=Any, Ejector characteristic=High vacuum
| Nominal size, Laval nozzle | 0.95 mm |
|---|---|
| Grid dimension | 18 mm |
| Design, silencer | closed |
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Grade of filtration | <= 40 µm |
| Manual override | Pushing |
| Integrated function | Electrical on-off valveFilter |
| Valve function | closed |
| Operating pressure | 2 ... 8 bar |
| Max. vacuum | 0.85 |
| Nominal operating pressure | 6 bar |
| Air supply time at nominal operating pressure | 1.18 s |
