Motor controller

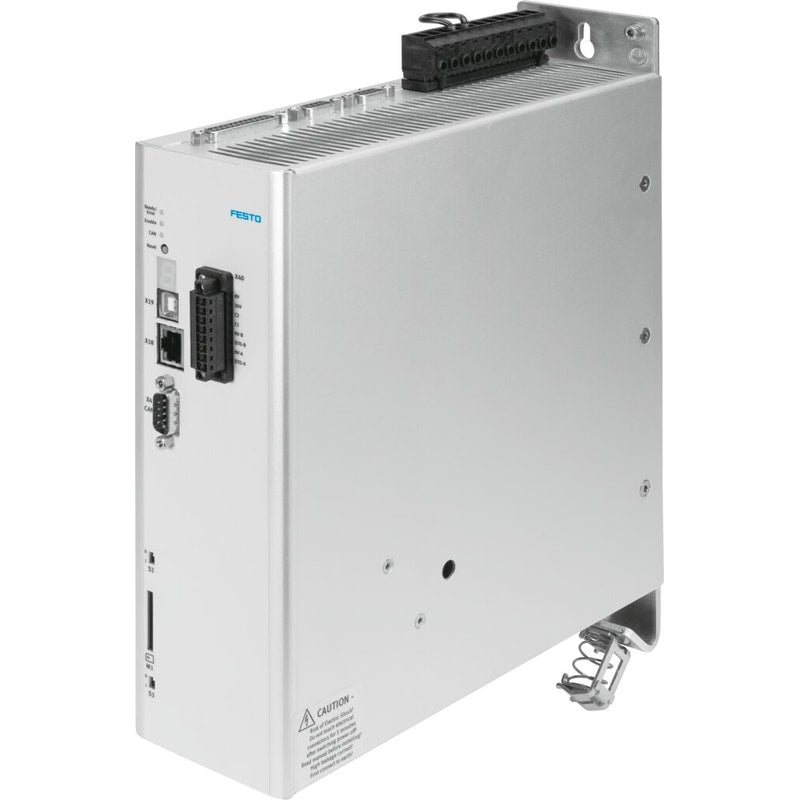

CMMP-AS-C5-11A-P3-M0
1622903
GTIN 4052568243265
Vendor Festo
- Nominal current
- 5.5 A
- Nominal operating voltage AC
- 400 V
- Nominal operating voltage phases
- 3-phase
- Controller nominal power
- 3000 VA
- Fieldbus coupling
- CANopen - Modbus®/TCP
Regular price
$2,696.48
Unit price
CMMP-AS-C5-11A-P3-M0 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMMP-AS-C5-11A-P3-M0
Regular price
$2,696.48
Unit price
CMMP-AS-C5-11A-P3-M0 is backordered and will ship as soon as it is back in stock.
| Type code | CMMP-AS |
|---|---|
| Line filter | Integrated |
| Safety function | Safe torque off (STO)Safe stop 1 (SS1) |
| Safety integrity level (SIL) | Safe torque off (STO)/SIL 3/SILCL 3 |
| Performance Level (PL) | Safe torque off (STO)/category 4, performance level e |
| Display | Seven-segment display |
| Output frequency | 0 Hz ... 1000 Hz |
| Output voltage range AC | 3x 0 - 360 V |
| Braking resistor | 68 Ohm |
| Diagnostic coverage | 0.97 |
| Characteristics of digital logic outputs | Galvanically isolatedFreely configurable in some cases |
| Hardware fault tolerance | 1 |
| Impedance of setpoint input | 20 kOhm |
| Pulse power of braking resistor | 8.5 kVA |
| Max. current of digital logic outputs | 100 mA |
| Max. peak current duration | 5 s |
| Max. DC link voltage | 560 V |
| Nominal output current | 0.208333333333333 |
| Nominal operating voltage AC | 400 V |
| Controller nominal power | 3000 VA |
| Nominal voltage, logic supply DC | 24 V |
| Nominal current | 5.5 A |
| Nominal current per phase, effective | 0.208333333333333 |
| Parameterization interface | Parameterization and commissioningEthernetUSB |
| Nominal operating voltage phases | 3-phase |
| SFF safe failure fraction | 0.9917 |
| Peak power | 6000 VA |
| Peak current per phase, effective | 15 A |
| Max. current consumption for logic supply without clamping brake | 0.0416666666666667 |
| Contamination level | 2 |
| Permissible range of logic voltage | ± 20 % |
| Permissible voltage fluctuations | +/- 10 % |
| Certificate issuing authority | German Technical Control Board (TÃœV) Rheinland |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU machinery directiveAs per EU low voltage directive |
| Storage temperature | -25 °C ... 70 °C |
| Relative air humidity | 0 - 90 % |
| Degree of protection | IP10IP20 |
| Ambient temperature | 0 °C ... 40 °C |
| Certification | RCM compliance markc UL us - Listed (OL) |
| Proof test interval | 20 y |
| Product weight | 3800 g |
| Number of analog monitor outputs | 2 |
| Number of analog setpoint inputs | 2 |
| Number of digital logic outputs 24Â VÂ DC | 5 |
| Number of digital logic inputs | 10 |
| Communication profile | DS301/DSP402 |
| Process interfacing | I/O couplingFor 256 positioning blocks |
| Work range of logic input | 8 V ... 30 V |
| Working range of monitor outputs | ± 10 V |
| Work range of setpoint input | ± 10 V |
| Resolution of monitor outputs | 9 bit |
| Encoder interface output, characteristics | Resolution 16384 ppr |
| Encoder interface input, characteristics | RS422SINCOSEnDat®HIPERFACE3-phase encoder signals |
| Characteristics of monitor outputs | Short circuit-proof |
| Characteristics of setpoint inputs | Configurable for rotational speedDifferential inputsConfigurable for current |
| Characteristics of logic input | Freely configurableGalvanically isolated |
| Output encoder interface, function | Actual value feedback via encoder signals in speed control mode.Setpoint specification for downstream slave actuator. |
| Input encoder interface, function | As speed setting of the slave actuator in synchronous mode.Encoder signal speed setpoint value. |
| Bus connection | Plug9-pinSub-D |
| Fieldbus coupling | CANopenModbus®/TCP |
| Max. fieldbus transmission rate | 1 Mbit/s |
| Type of mounting | On sub-baseScrewed tightly |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
