Twin cylinder
DPZJ-32-100-P-A-KF-S2
162157
GTIN 4052568130879
Vendor Festo
- Piston diameter
- 32 mm
- Theoretical force at 6 bar, advancing
- 724 N
- Stroke
- 100 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$2,177.75
Unit price
DPZJ-32-100-P-A-KF-S2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DPZJ-32-100-P-A-KF-S2
Regular price
$2,177.75
Unit price
DPZJ-32-100-P-A-KF-S2 is backordered and will ship as soon as it is back in stock.

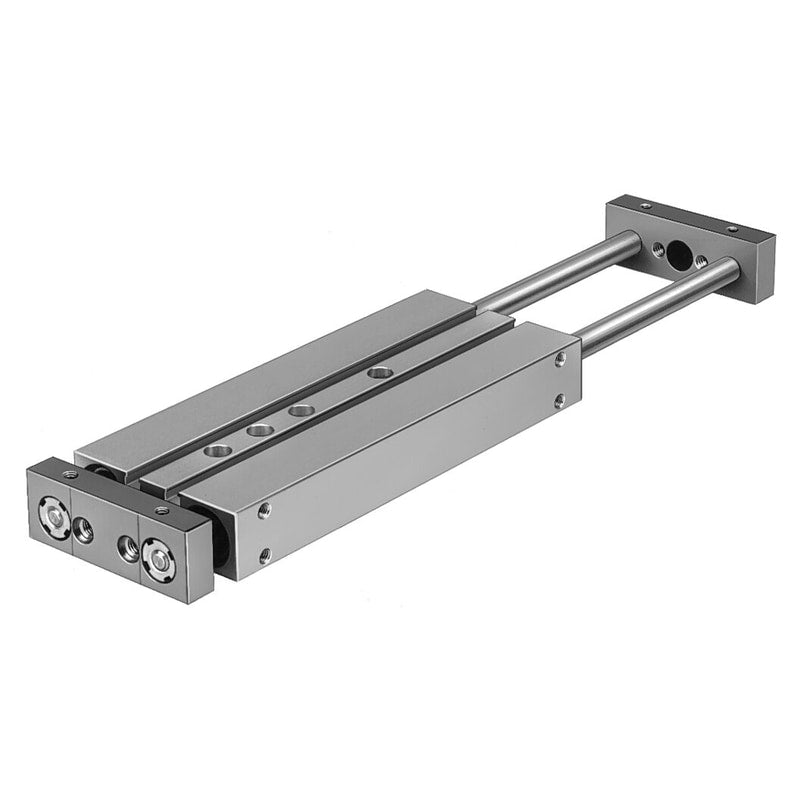

twin-piston cylinder DPZJ-32-100-P-A-KF-S2 With two parallel, double-ended piston rods and yoke plates, for proximity sensing, with elastic cushioning rings in end positions. Stroke=100 mm, Adjustable end-position range/length=10 mm, Piston diameter=32 mm, Operating mode of drive unit=Yoke, Cushioning=P: Flexible cushioning rings/plates at both ends
| Stroke | 100 mm |
|---|---|
| Adjustable end-position range/length | 10 mm |
| Piston diameter | 32 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Position detection | For proximity sensor |
| Variants | Through piston rod |
| Operating pressure | 1 ... 10 bar |
| Max. speed | 1 m/s |
| Mode of operation | double-acting |
