Proportional directional control valve
MPYE-5-1/8-LF-420-B
161978
GTIN 4052568129460
Vendor Festo

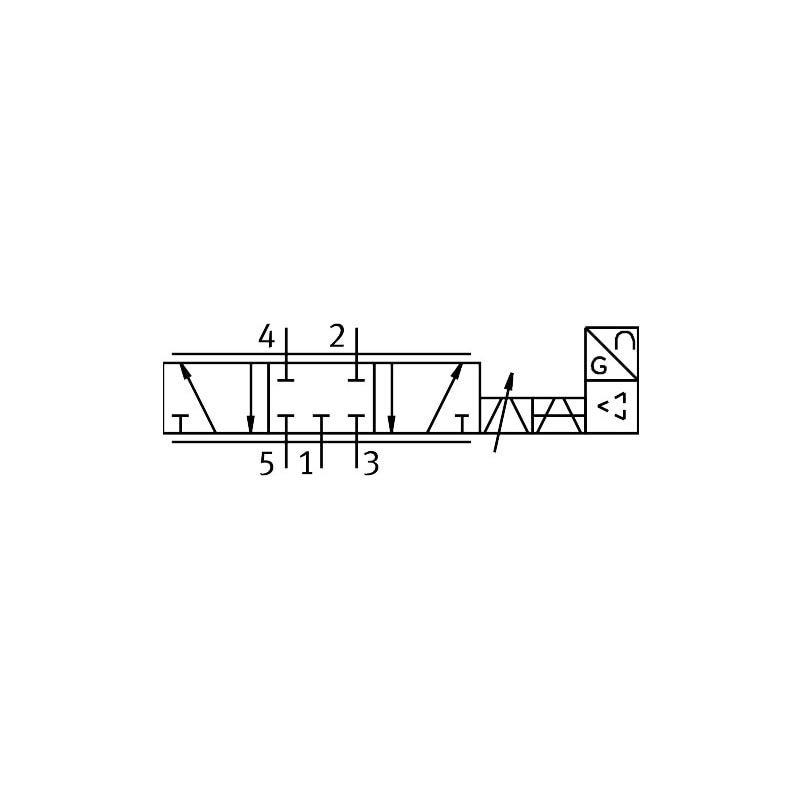

- Valve function
- 5/3, closed
- Pneumatic connection 1
- G1/8
- Normal nominal flow rate (normalized to DIN 1343)
- 350 l/min
- DC operating voltage range
- 17 V - 30 V
Regular price
$1,300.08
Unit price
MPYE-5-1/8-LF-420-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MPYE-5-1/8-LF-420-B
Regular price
$1,300.08
Unit price
MPYE-5-1/8-LF-420-B is backordered and will ship as soon as it is back in stock.
Screw-in exhaust air control with balanced noise emission.
| Type code | SE |
|---|---|
| Valve function | Quick exhaust |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Type of mounting | Screw-in |
| Standard nominal flow rate exhaust air 6->5 bar | 2760 l/min |
| Standard nominal flow rate pressurization 6->5 bar | 2880 l/min |
| Operating pressure | 0.2 bar ... 10 bar |
| Ambient temperature | -20 °C ... 75 °C |
| Housing material | Die-cast aluminum |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Nominal width | 11 mm |
| Mounting position | Any |
| Symbol | 00991459 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 75 °C |
| Product weight | 125 g |
| Pneumatic connection 3 | G3/8 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
