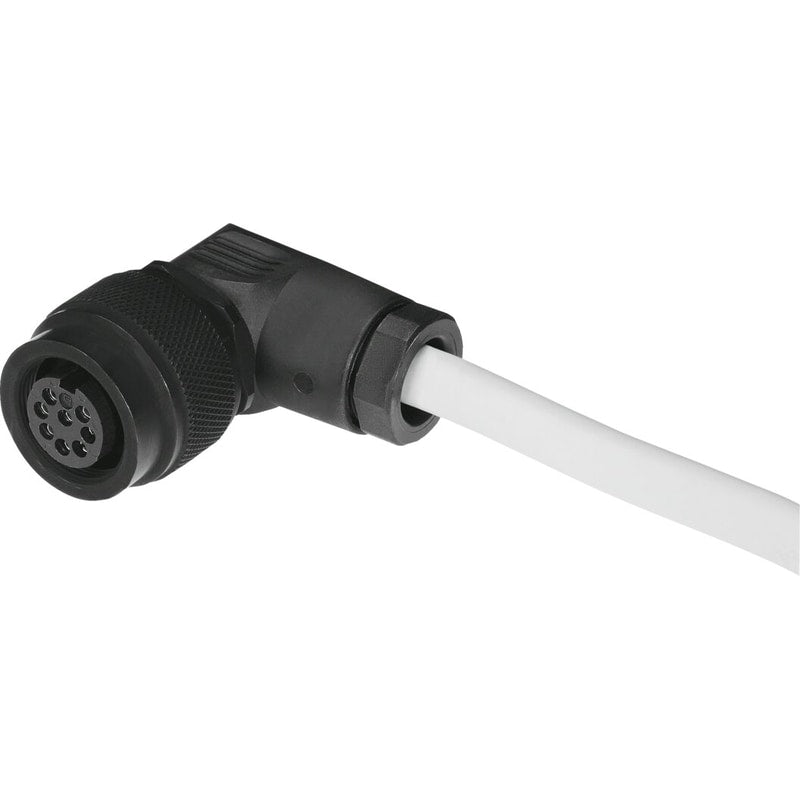

Plug socket with cable
KMPPE-B-5
161878
GTIN 4052568072124
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M16x0.75 as per EN 61076-2-106
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 5 m
Regular price
$154.88
Unit price
KMPPE-B-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMPPE-B-5
Regular price
$154.88
Unit price
KMPPE-B-5 is backordered and will ship as soon as it is back in stock.
| Type code | KMPPE |
|---|---|
| Conforms to standard | DIN 47100 |
| Cable designation | With accessories |
| Contact durability | 500 |
| Product weight | 459 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | M16x0.75 as per EN 61076-2-106 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 995734 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 0.208333333333333 |
| Surge resistance | 0.6 kV |
| Cable length | 5 m |
| Connector cable test conditions | Test conditions on request |
| Cable diameter | 6.8 mm |
| Cable design | 8 x 0.25 mm²Shielded |
| Nominal conductor cross section | 0.25 mm² |
| Wire ends | Cut off bluntly |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -30 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 1 |
| Material of cable sheath | PVC |
| Color cable sheath | Gray |
| Housing material | PA |
| Material of screw-type lock | PA |
