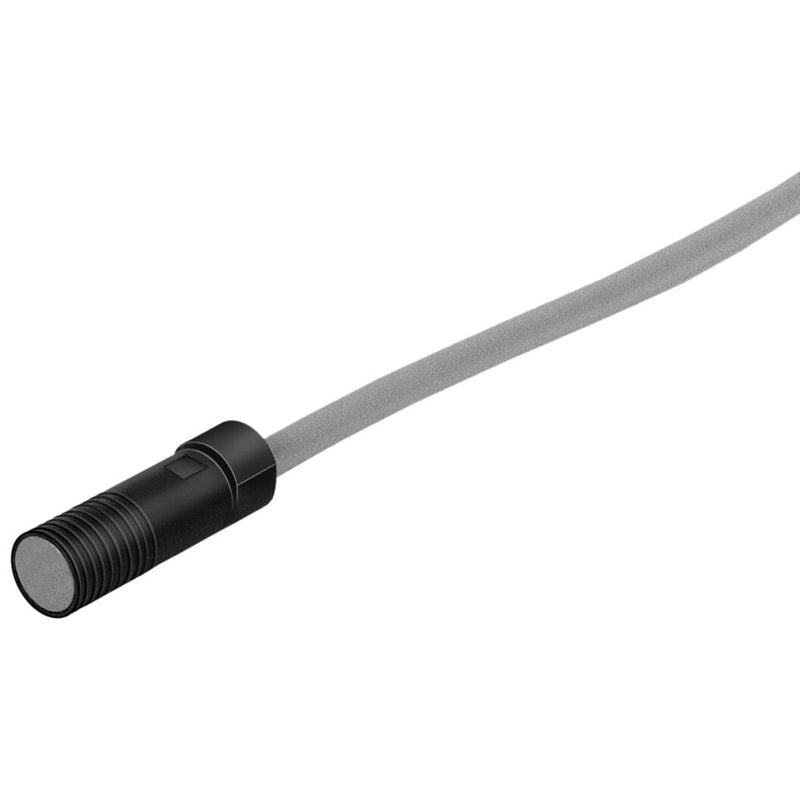

Proximity sensor
CRSMEO-4-K-LED-24
161775
GTIN 4052568071974
Vendor Festo
Regular price
$109.46
Unit price
CRSMEO-4-K-LED-24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRSMEO-4-K-LED-24
Regular price
$109.46
Unit price
CRSMEO-4-K-LED-24 is backordered and will ship as soon as it is back in stock.
proximity sensor CRSMEO-4-K-LED-24 Corrosion resistant, with cable, without mounting kit CRSMB/CRSMBR. Design=Round, Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE, Measuring principle=Reed magnetic
| Design | Round |
|---|---|
| Authorisation | RCM Mark |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Measuring principle | Reed magnetic |
| Ambient temperature | '-20 ... 60 °C |
| Switch output | with contact, bipolar |
| Switching element function | Normally open contact |
| Reproducibility of switching value | '+/- 0,1 mm |
| Switch-on time | <= 0.5 ms |
| Switch-off time | 0.03 ms |
| Max. output current | 500 mA |
| Max. contact rating DC | 10 W |
