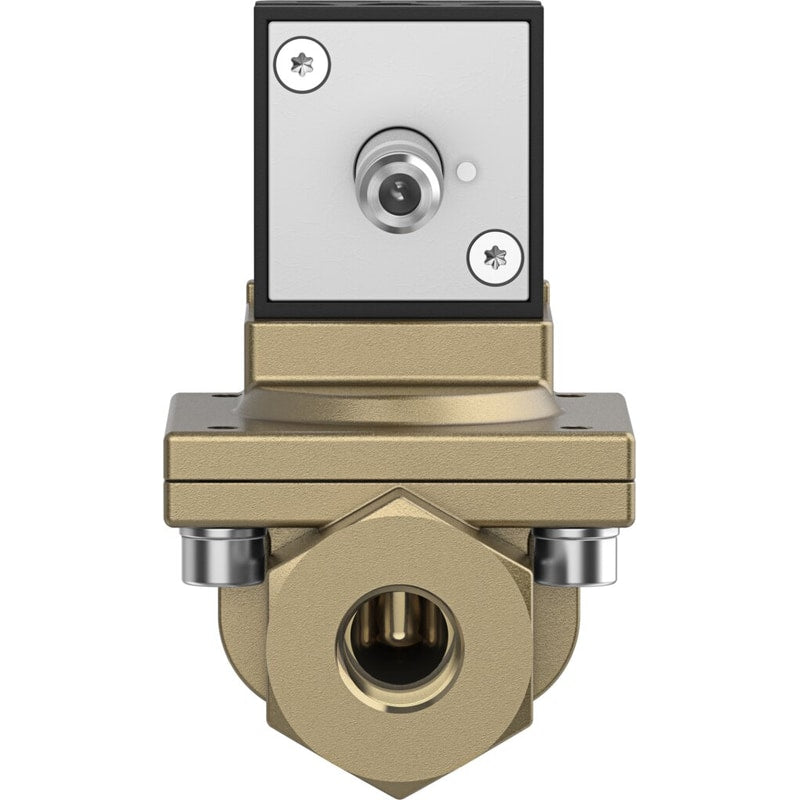

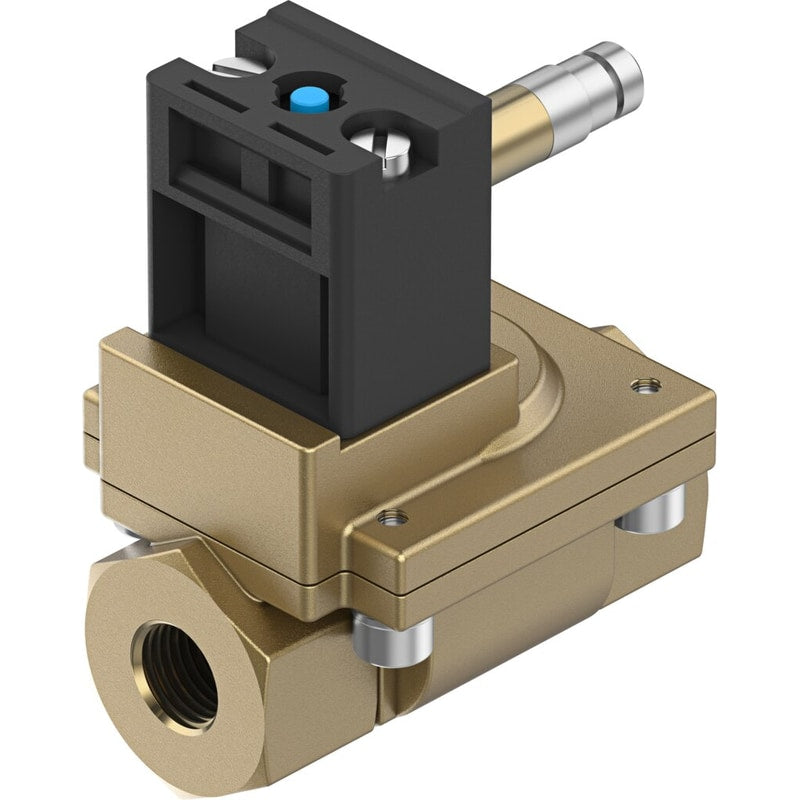

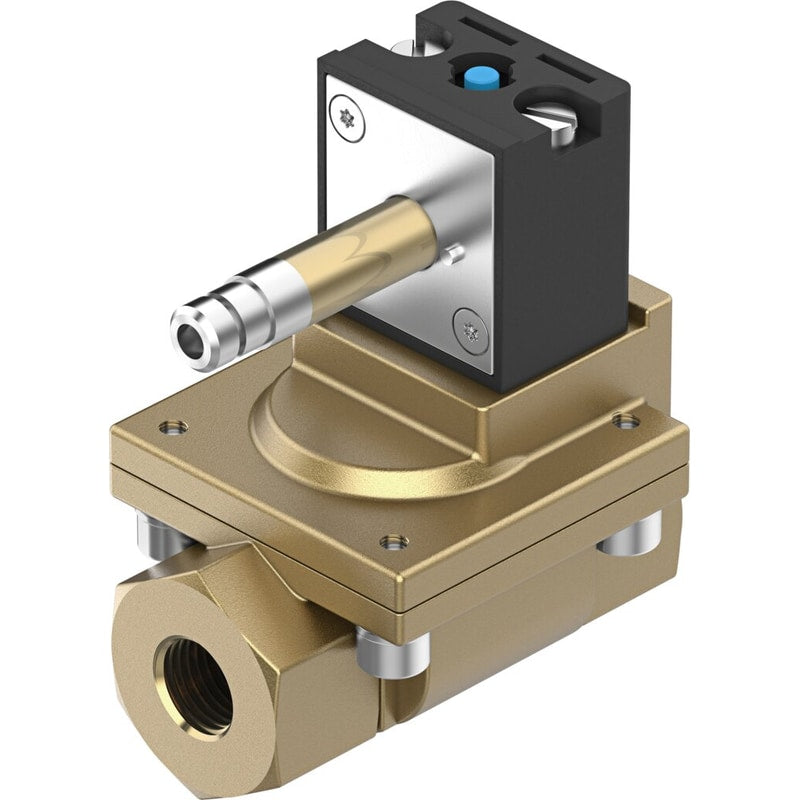

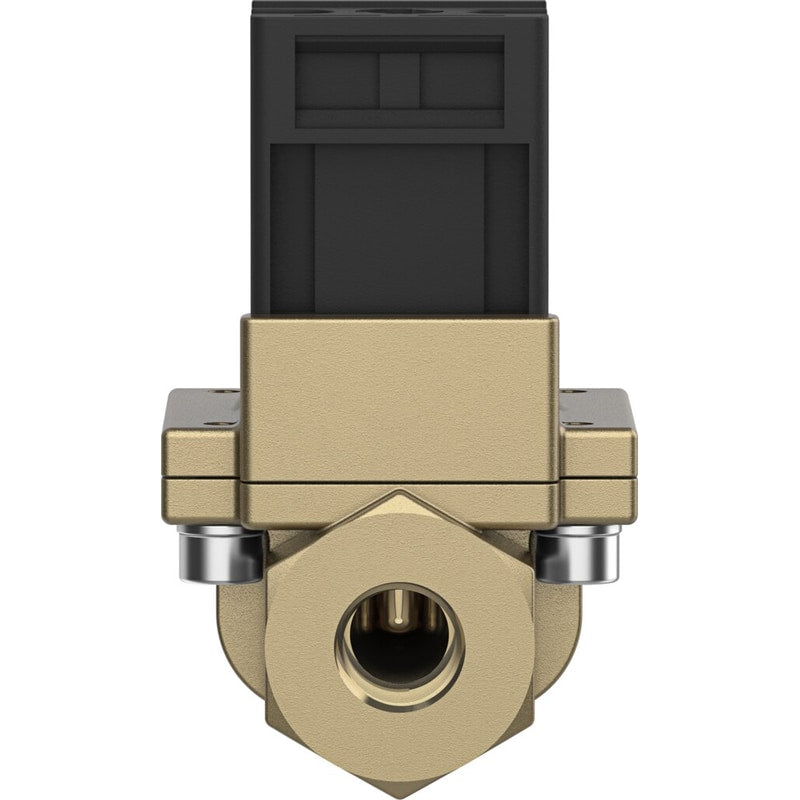

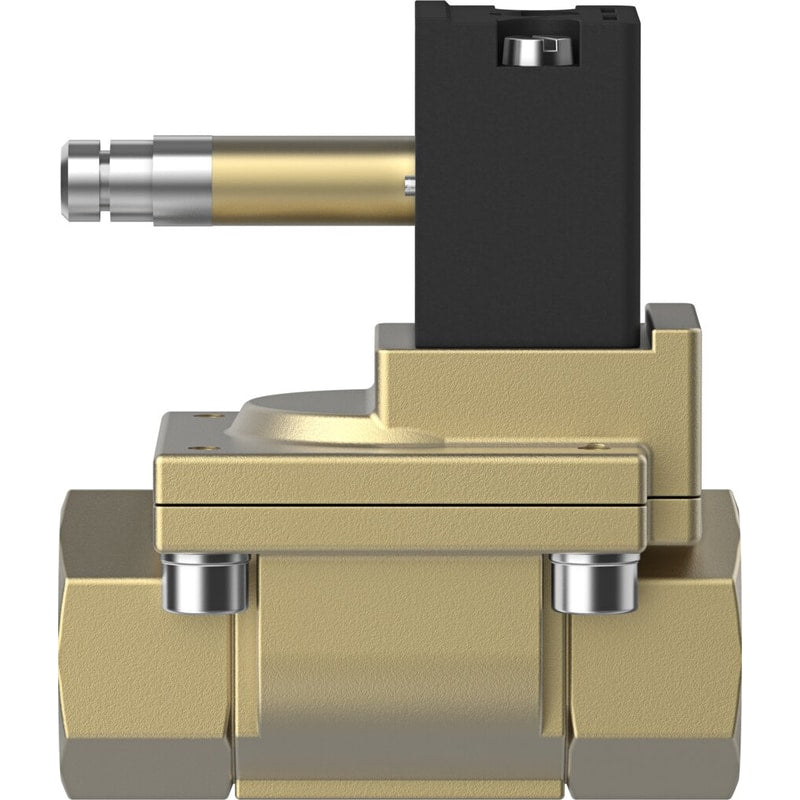

Air solenoid valve
MN1H-2-1 1/2-MS
161734
GTIN 4052568129262
Vendor Festo
- Structural design
- Diaphragm valve
- Valve function
- 2/2, closed, monostable
- Fitting connection
- G1 1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 30500 l/min
- Medium pressure
- 0.5 bar - 10 bar
Regular price
$870.30
Unit price
MN1H-2-1 1/2-MS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MN1H-2-1 1/2-MS
Regular price
$870.30
Unit price
MN1H-2-1 1/2-MS is backordered and will ship as soon as it is back in stock.
The proportional valve VPPX from the valve family VPPM. With the freely programmable PID controller and external sensor input, even customer-specific tasks can be performed simply and easily. For maximum flexibility and optimum process quality.
| KC characters | KC EMC |
|---|---|
| Nominal width pressurization | 6 mm |
| Exhaust nominal width | 4.5 mm |
| Type code | VPPX |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections |
| Safety instructions | If the supply cable breaks, the outlet pressure is retained without control. |
| Symbol | 00995303 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve |
| Display type | LED |
| Pressure regulation range | 0.1 bar ... 10 bar |
| Inlet pressure 1 | 0 bar ... 11 bar |
| Max. pressure hysteresis | 0.05 bar |
| Standard nominal flow rate | 1400 l/min |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Max. current consumption | 300 mA |
| Duty cycle | 100% |
| Max. electrical power consumption | 7 W |
| Residual ripple | 10 % |
| Analog output signal range | 4 - 20 mA0 - 10 V0 - 20 mA |
| Analog input signal range | 0 - 10 V4 - 20 mA0 - 20 mA |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 10 °C ... 50 °C |
| Degree of protection | IP65 |
