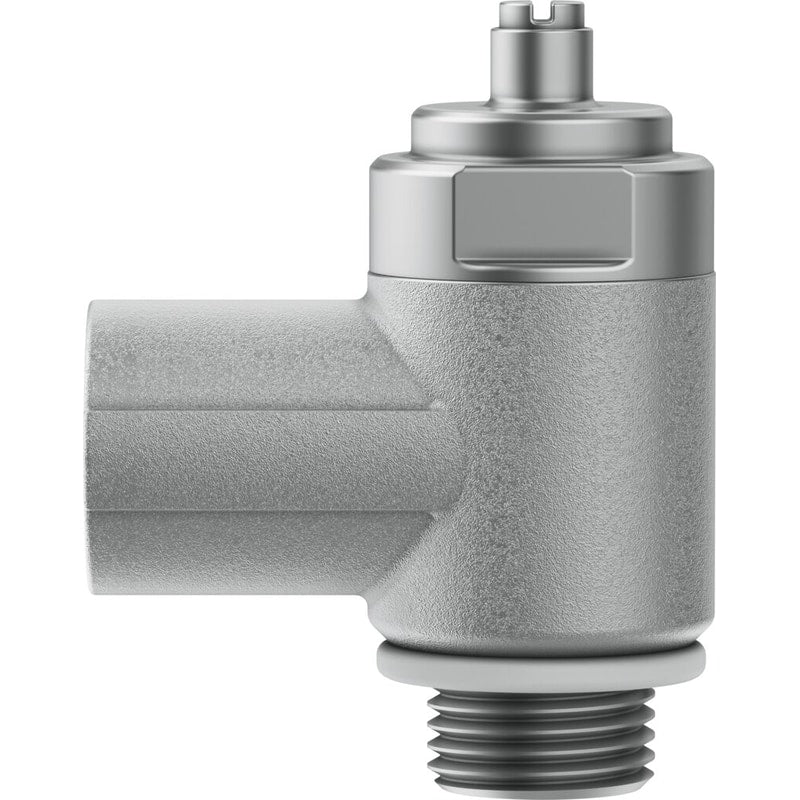

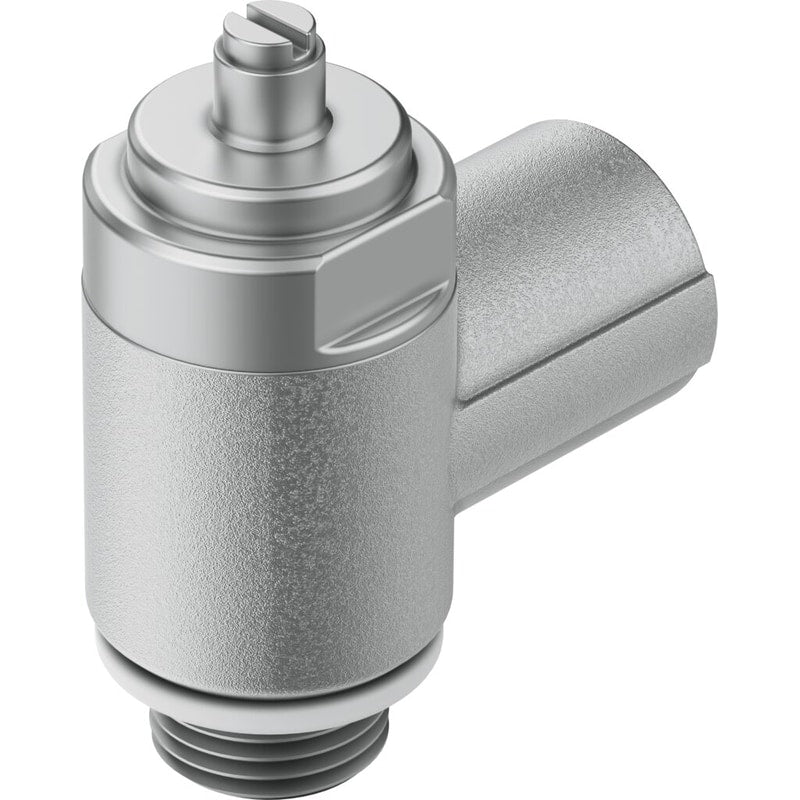

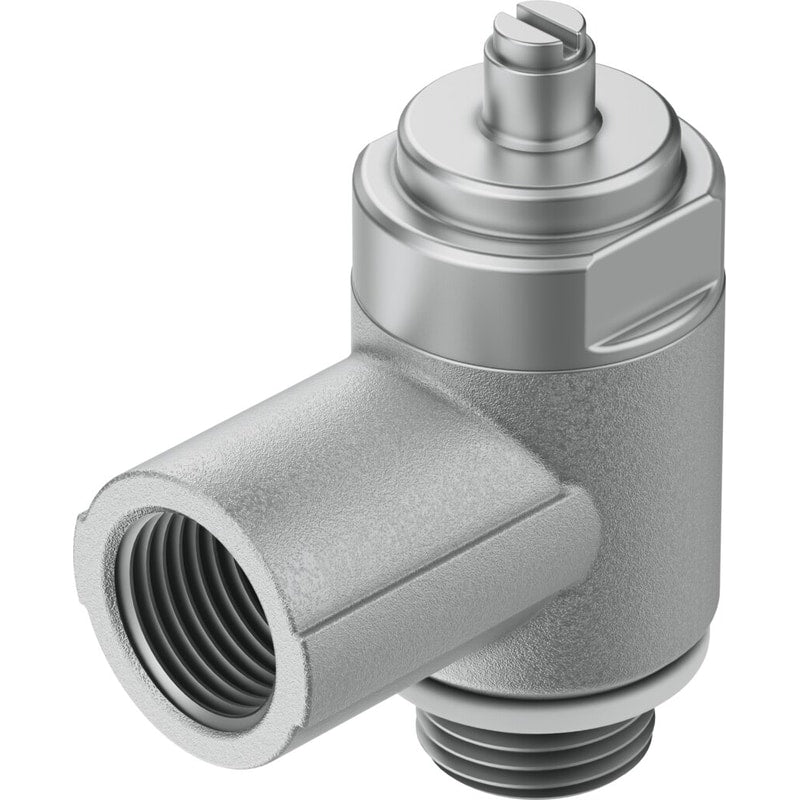

One-way flow control valve
CRGRLA-1/8-B
161404
GTIN 4052568071936
Vendor Festo
- Valve function
- Flow control non-return function
- Standard nominal flow rate in flow control direction
- 340 l/min
- Pneumatic connection 1
- G1/8
- Adjusting element
- Slotted screw
Regular price
$104.24
Unit price
CRGRLA-1/8-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRGRLA-1/8-B
Regular price
$104.24
Unit price
CRGRLA-1/8-B is backordered and will ship as soon as it is back in stock.
one-way flow control valve CRGRLA-1/8-B Corrosion resistant, with swivel joint and female thread. Valve function=One-way flow control function, Pneumatic connection, port 1=G1/8, Pneumatic connection, port 2=G1/8, Adjusting element=Slotted head screw, Mounting type=Threaded
| Valve function | One-way flow control function |
|---|---|
| connection 1 | G1/8 |
| connection 2 | G1/8 |
| Adjusting element | Slotted head screw |
| Mounting type | Threaded |
| Standard nominal flow rate in flow control direction | 340 l/min |
| Standard nominal flow rate in non-return direction | 260 ... 420 l/min |
| Operating pressure | 0.3 ... 10 bar |
| Ambient temperature | '-20 ... 80 °C |
| Assembly position | Any |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 580 l/min |
| Standard flow rate in blocked direction: 6 -> 0 bar | 530 ... 590 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Design | Elbow |
