PFML-90-HP3-AST
1612487
Vendor Festo
Regular price
$3,461.42
Unit price
PFML-90-HP3-AST is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

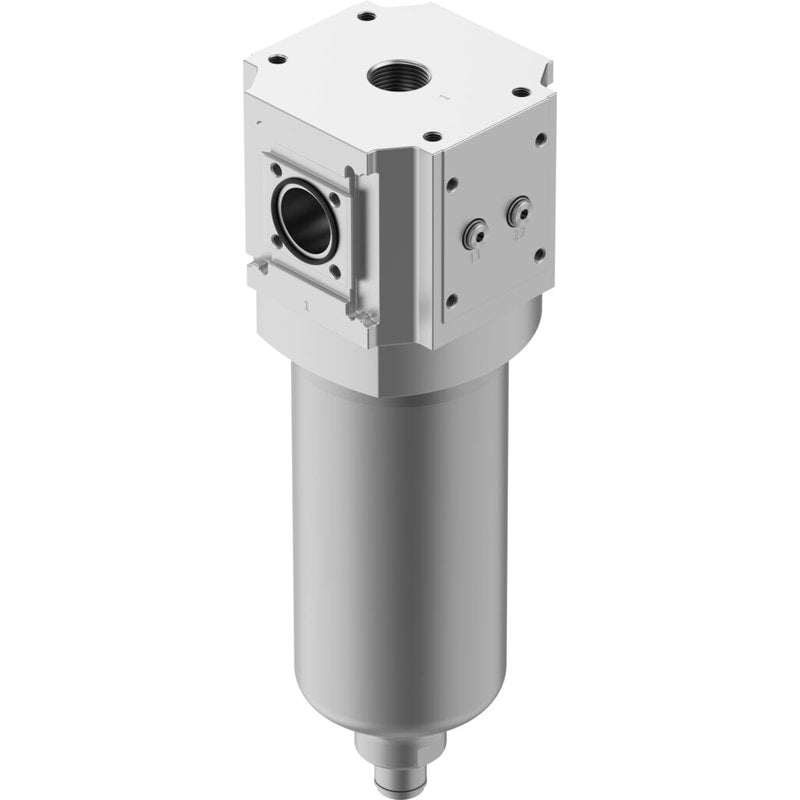

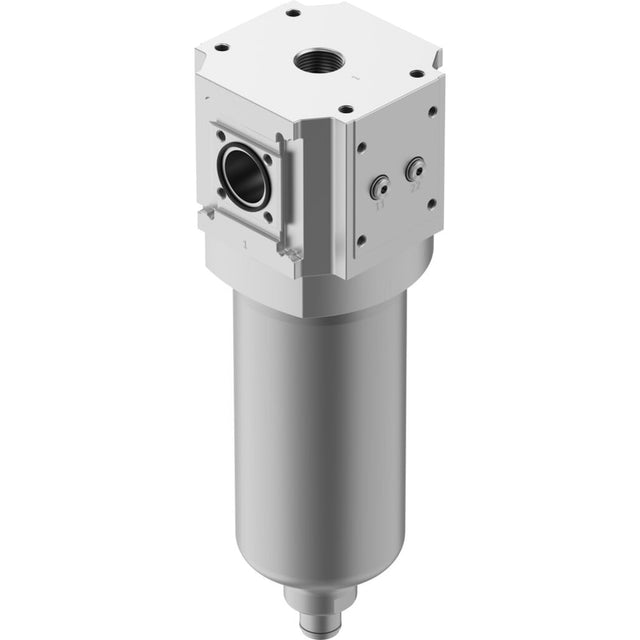

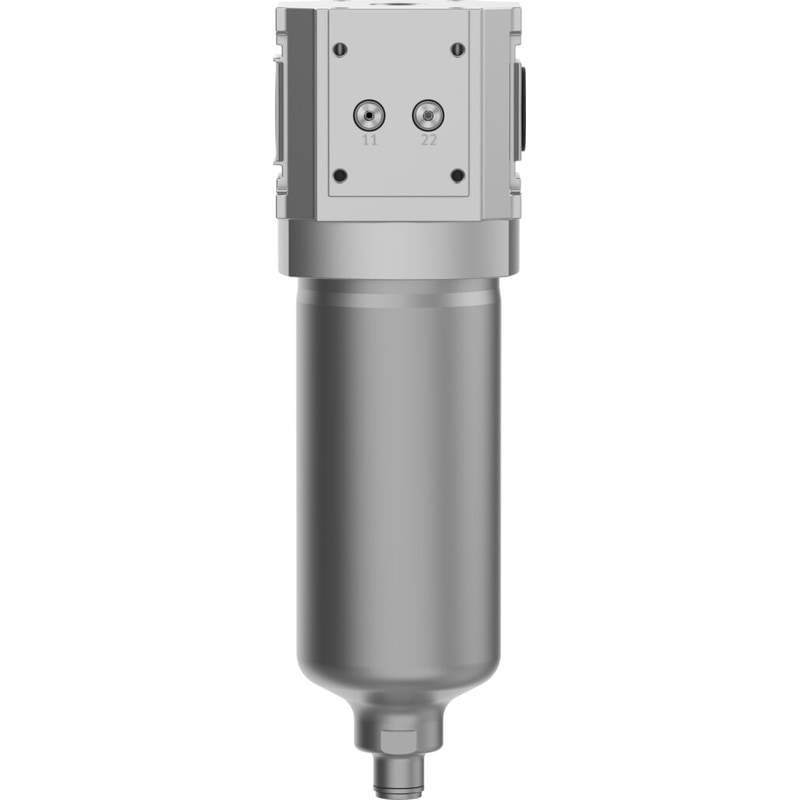

PFML-90-HP3-AST
Regular price
$3,461.42
Unit price
PFML-90-HP3-AST is backordered and will ship as soon as it is back in stock.
| Series | L |
|---|---|
| Size | 90 |
| Type code | PFML |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Manual |
| Symbol | 00991519 |
| Operating pressure | 0 bar ... 50 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [2:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:2] |
| Filter efficiency | 99.99998 % |
| Max. condensate volume | 200 ml |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 5 °C ... 60 °C |
| Ambient temperature | 5 °C ... 60 °C |
| Storage temperature | -10 °C ... 60 °C |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Type of mounting | Line installation |
| Mounting position | Vertical +/- 5° |
| Housing material | Wrought aluminum alloy |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | High-alloy stainless steel |
| Seals material | NBR |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Product weight | 7700 g |
| Volume | 3 |
| For use in the food industry | See supplementary material information |
