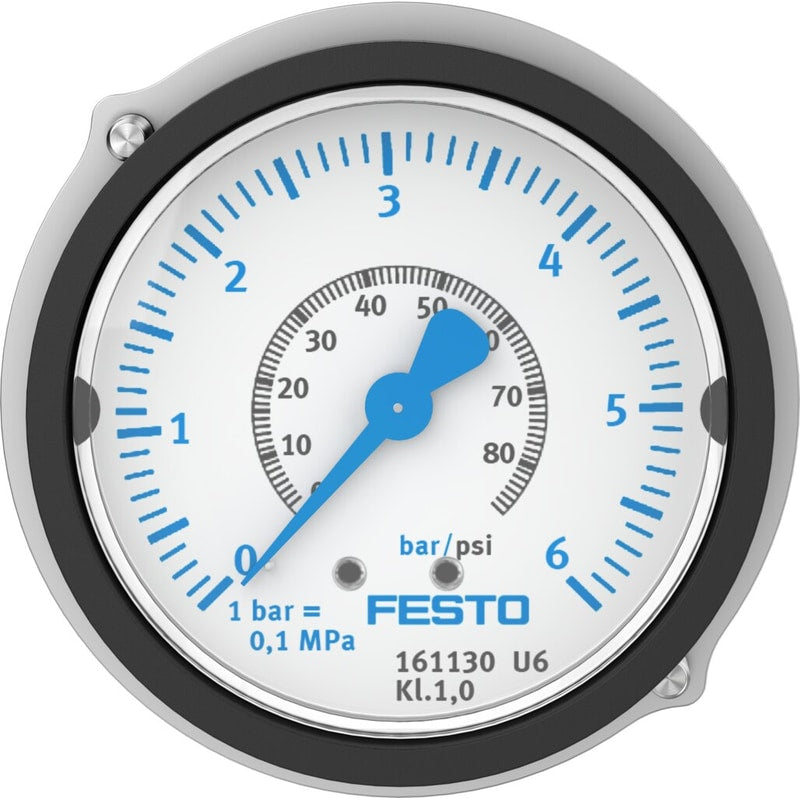

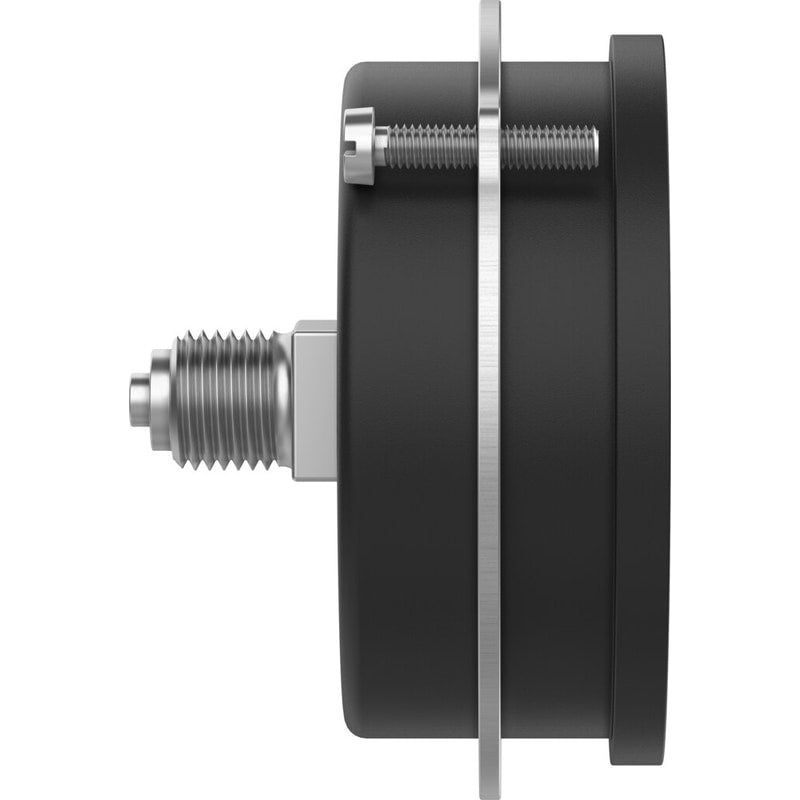

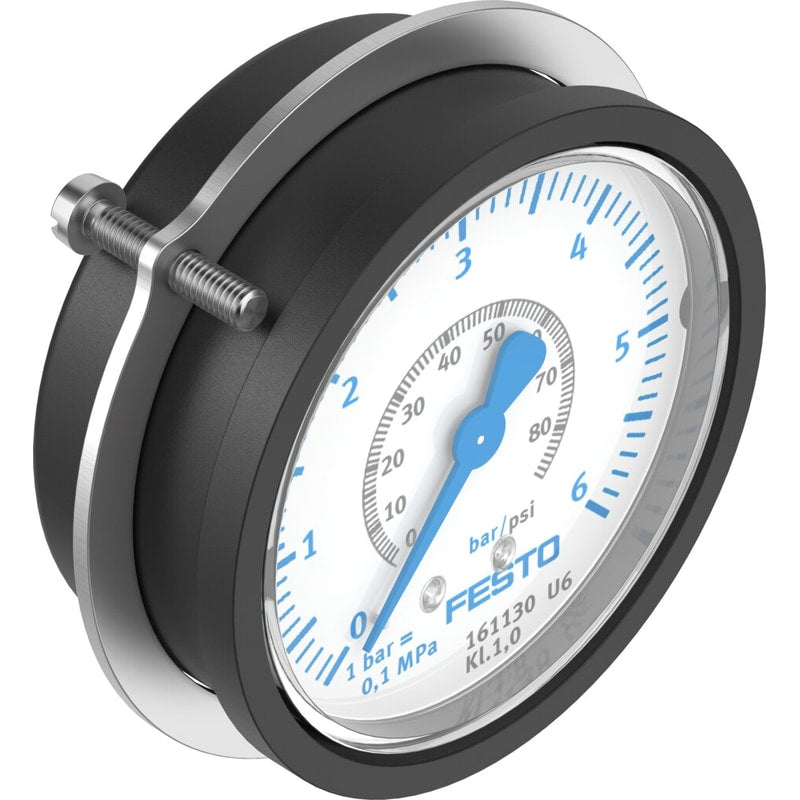

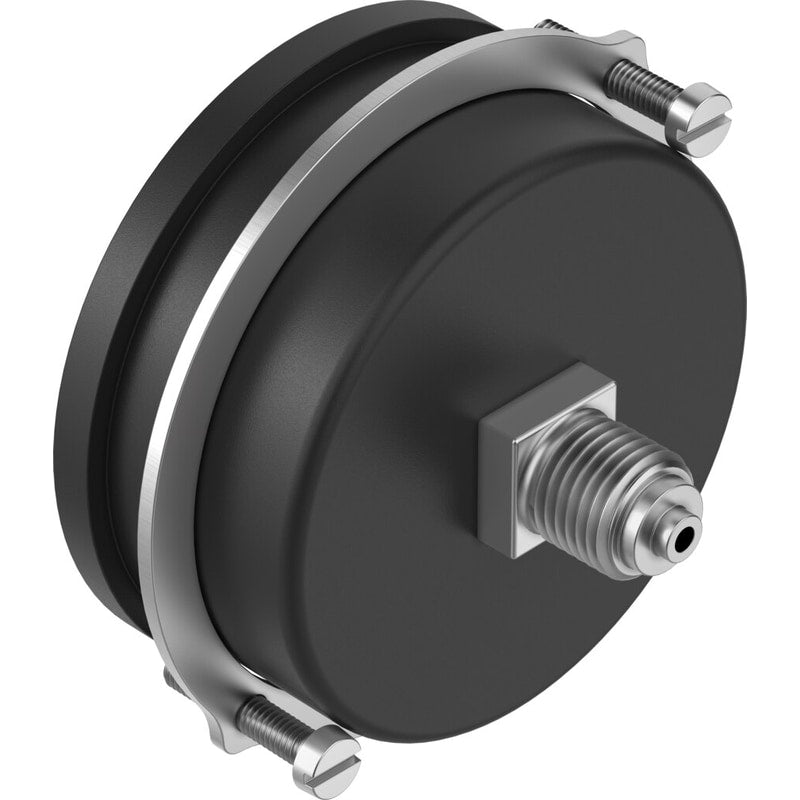

Flanged precision pressure gauge
FMAP-63-6-1/4-EN
161130
GTIN 4052568071844
Vendor Festo
- Type of mounting
- Front panel mounting
- Display range
- 0 bar - 6 bar
- Pneumatic connection
- G1/4
- Measurement accuracy class
- 1
Regular price
$72.30
Unit price
Flanged precision pressure gauge FMAP-63-6-1/4-EN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FMAP-63-6-1/4-EN
Regular price
$72.30
Unit price
Flanged precision pressure gauge FMAP-63-6-1/4-EN is backordered and will ship as soon as it is back in stock.
flanged precision pressure gauge FMAP-63-6-1/4-EN With display unit in bar and psi. Indicating range [bar]=0 - 6 bar, Conforms to standard=EN 837-1, Nominal size of pressure gauge=63, Design structure=Bourdon-tube pressure gauge, Mounting type=Front panel installation
| Indicating range [bar] | 0 ... 6 bar |
|---|---|
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 63 |
| Design structure | Bourdon-tube pressure gauge |
| Mounting type | Front panel installation |
| Operating medium | Inert gasesNeutral fluids |
| Operating pressure | 0 ... 6 bar |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 1 |
| Protection class | IP43 |
| Medium temperature | '-20 ... 60 °C |
| Ambient temperature | '-20 ... 60 °C |
| Materials note | Conforms to RoHS |
