Manifold sub-base
NAW-1/8-02-VDMA
161110
GTIN 4052568012236
Vendor Festo
Regular price
$43.74
Unit price
NAW-1/8-02-VDMA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NAW-1/8-02-VDMA
Regular price
$43.74
Unit price
NAW-1/8-02-VDMA is backordered and will ship as soon as it is back in stock.

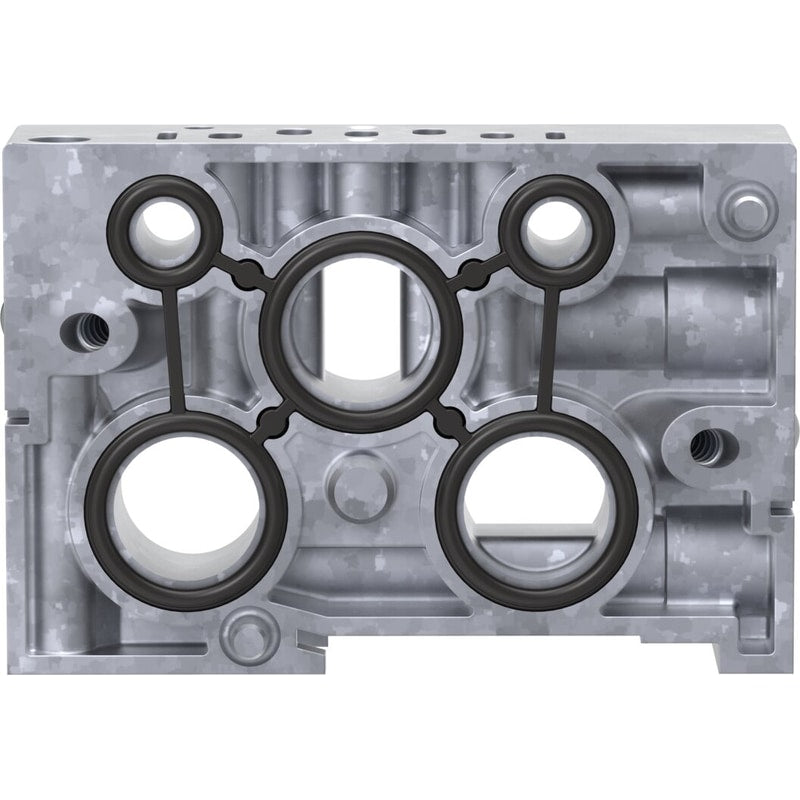

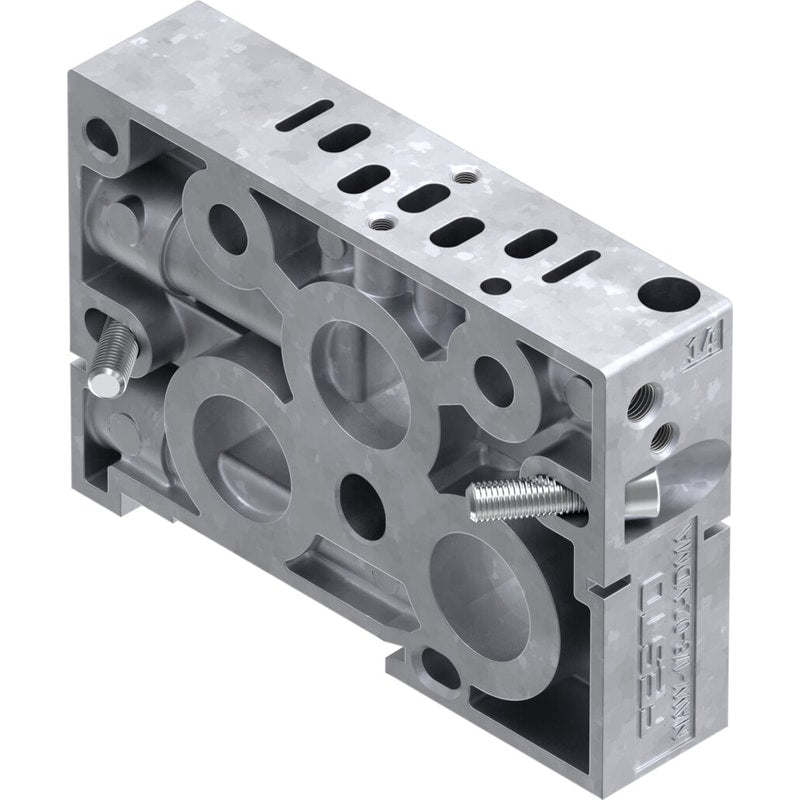

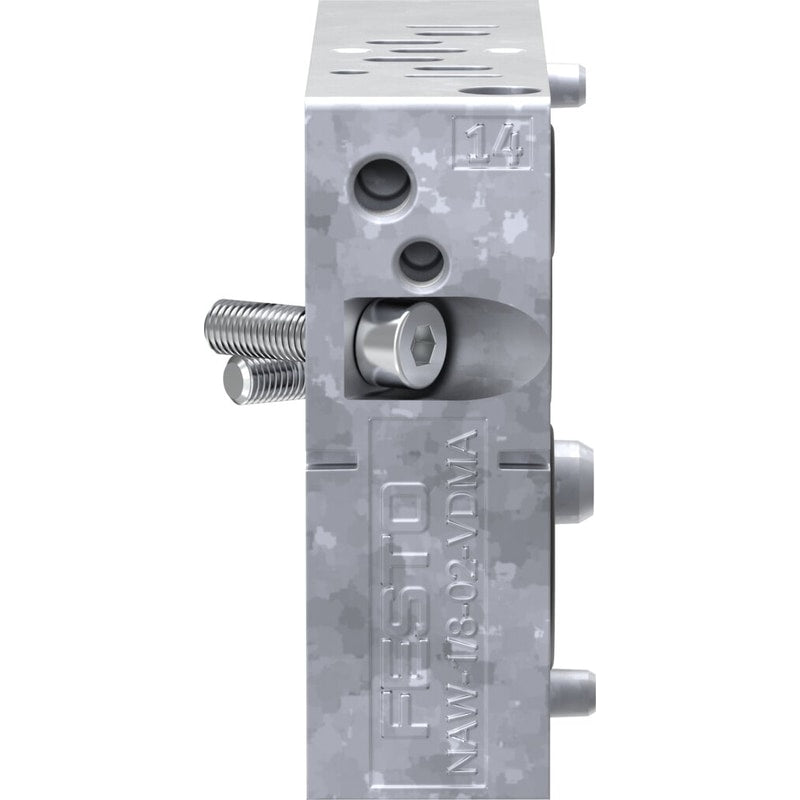

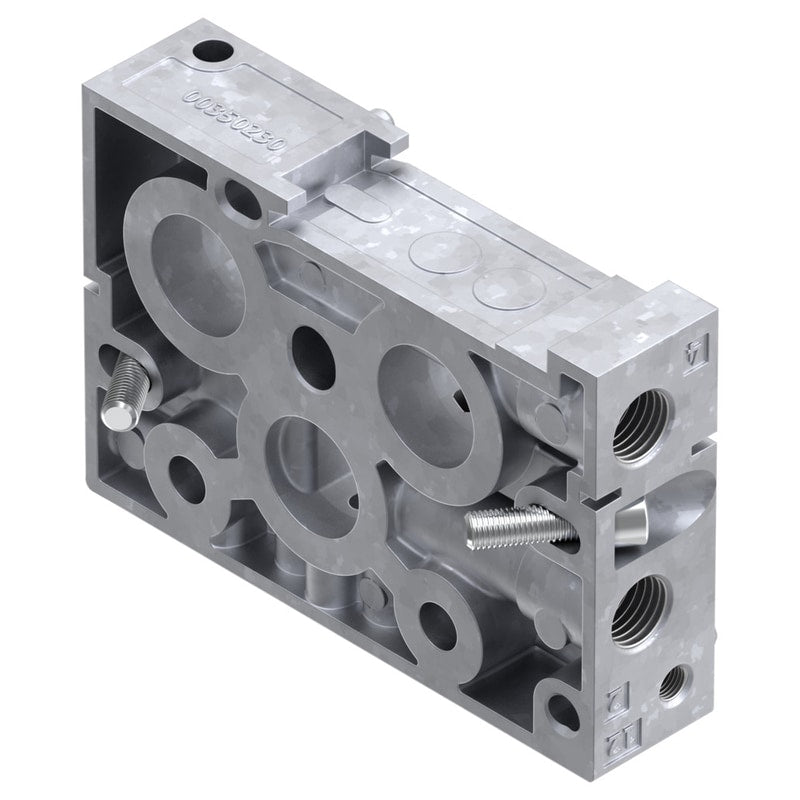

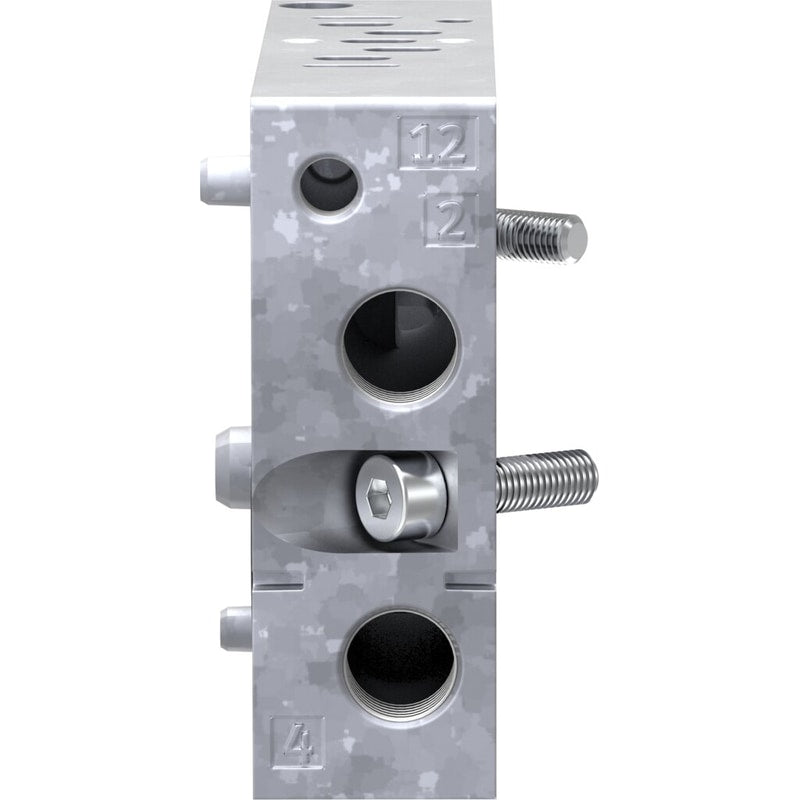

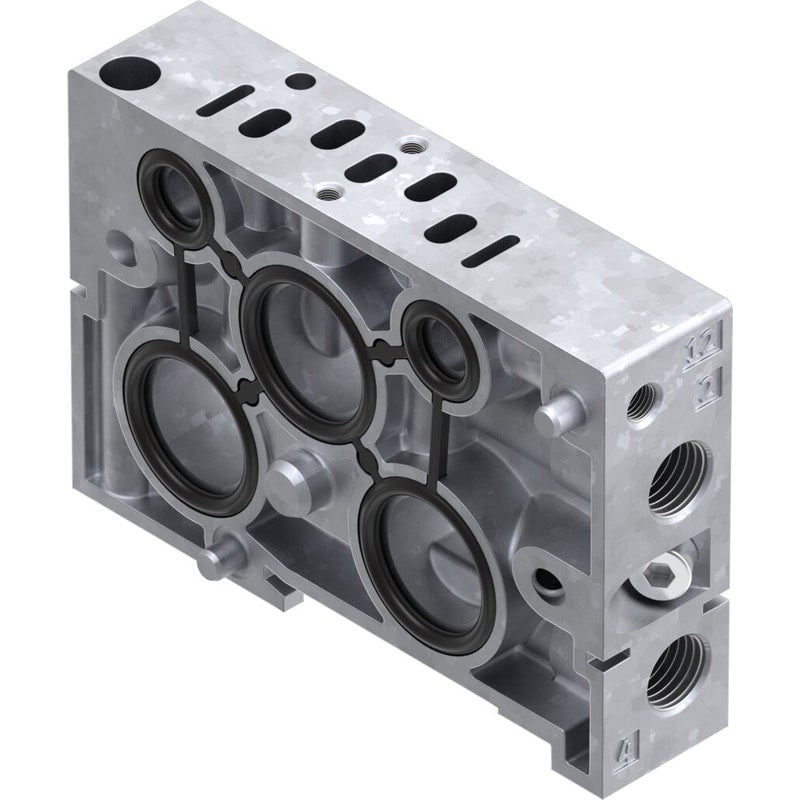

manifold sub-base NAW-1/8-02-VDMA Connections at side. Width=18 mm, Based on the standard=ISO 15407-1, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Product weight=130 g
| Width | 18 mm |
|---|---|
| Based on the standard | ISO 15407-1 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Product weight | 130 g |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Material housing | Aluminium die cast |
