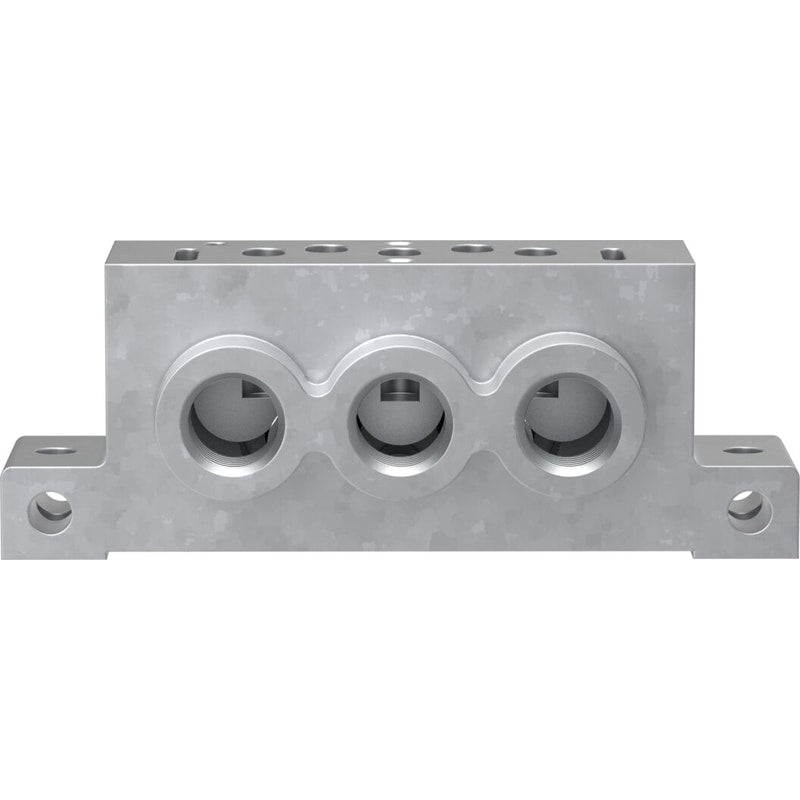

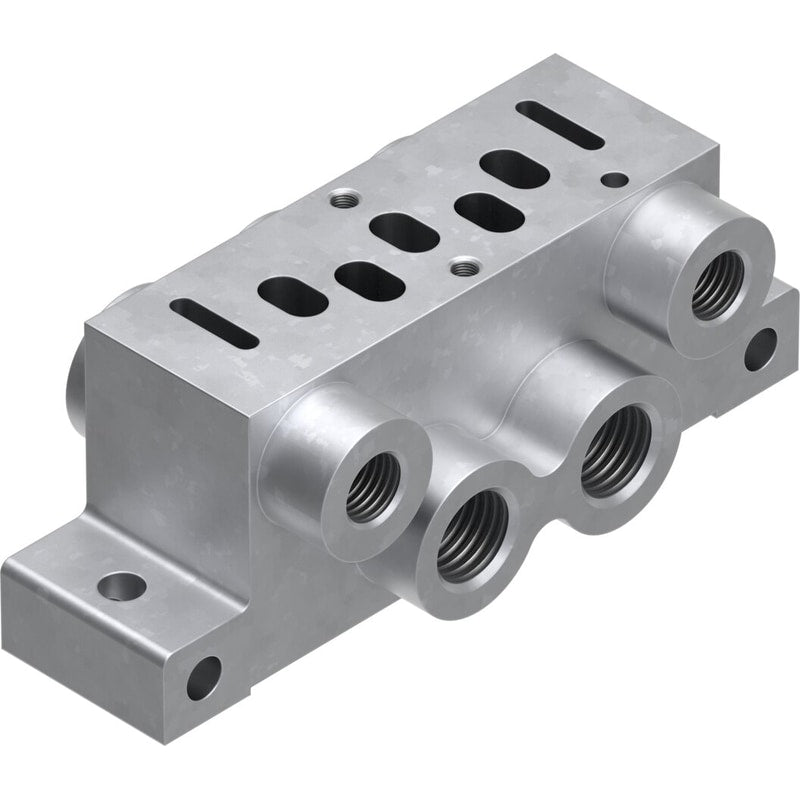

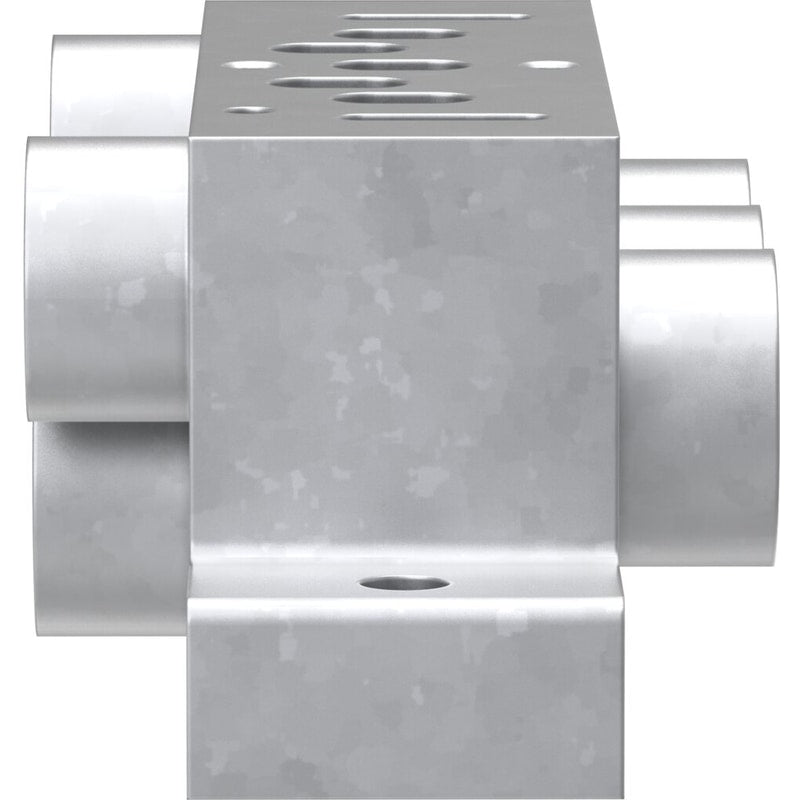

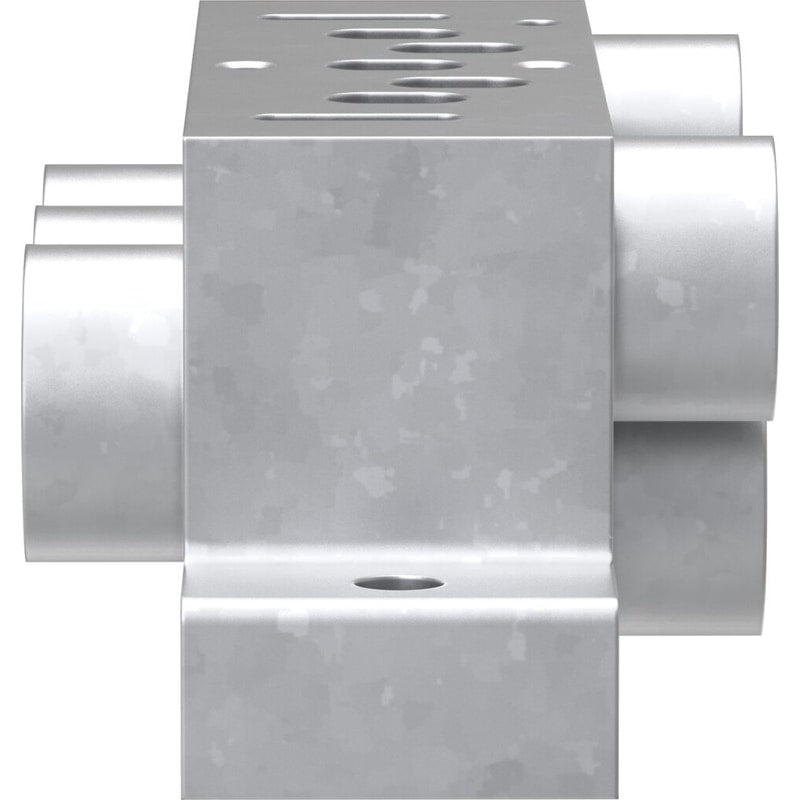

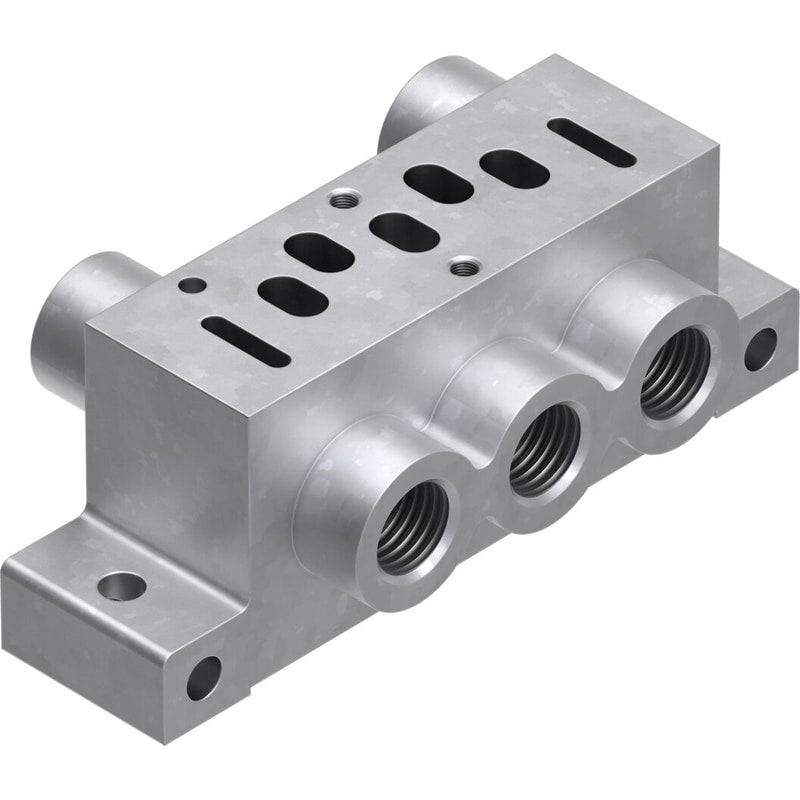

Individual subbase
NAS-1/4-01-VDMA
161109
GTIN 4052568004514
Vendor Festo
Regular price
$36.93
Unit price
NAS-1/4-01-VDMA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NAS-1/4-01-VDMA
Regular price
$36.93
Unit price
NAS-1/4-01-VDMA is backordered and will ship as soon as it is back in stock.
individual sub-base NAS-1/4-01-VDMA Connections at side. Based on the standard=ISO 15407-1, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Product weight=160 g, Mounting type=with through hole
| Based on the standard | ISO 15407-1 |
|---|---|
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Product weight | 160 g |
| Mounting type | with through hole |
| Auxiliary pilot air port 12/14 | G1/8 |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Materials note | Free of copper and PTFE |
| Material of connecting plate | Aluminium die cast |
