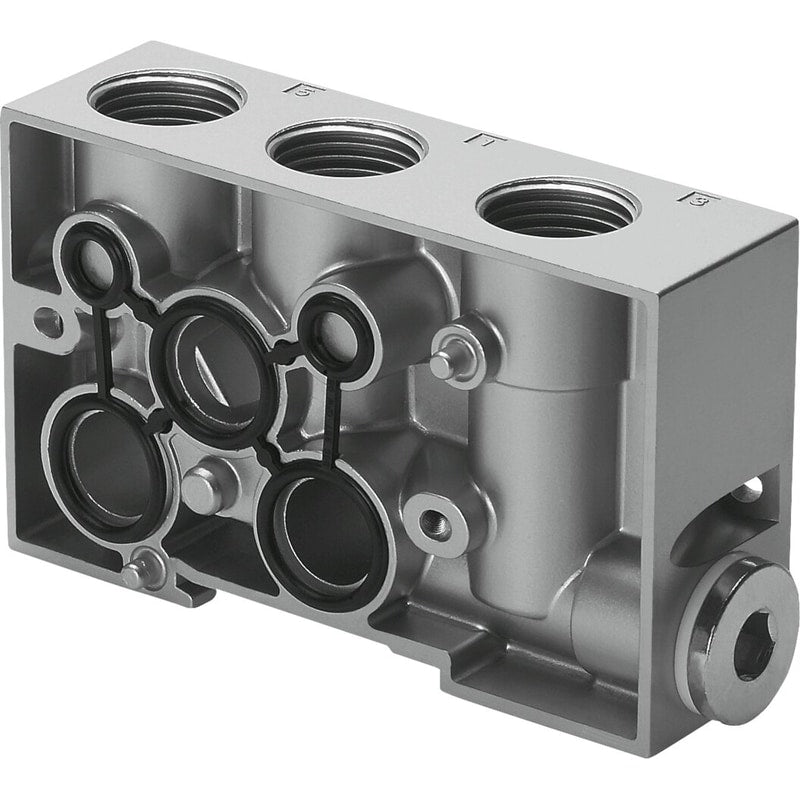

Intermediate plate
NZV-01/02-VDMA
161108
GTIN 4052568071820
Vendor Festo
Regular price
$82.87
Unit price
NZV-01/02-VDMA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NZV-01/02-VDMA
Regular price
$82.87
Unit price
NZV-01/02-VDMA is backordered and will ship as soon as it is back in stock.
intermediate plate NZV-01/02-VDMA Allows the combination of different sizes of standard manifold sub-bases. Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Product weight=270 g, Pneumatic connection, port 1=G1/2, Pneumatic connection, port 3=G1/2
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
|---|---|
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Product weight | 270 g |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 3 | G1/2 |
| Pneumatic connection, port 5 | G1/2 |
| Materials note | Free of copper and PTFE |
| Material of connecting plate | Aluminium die cast |
