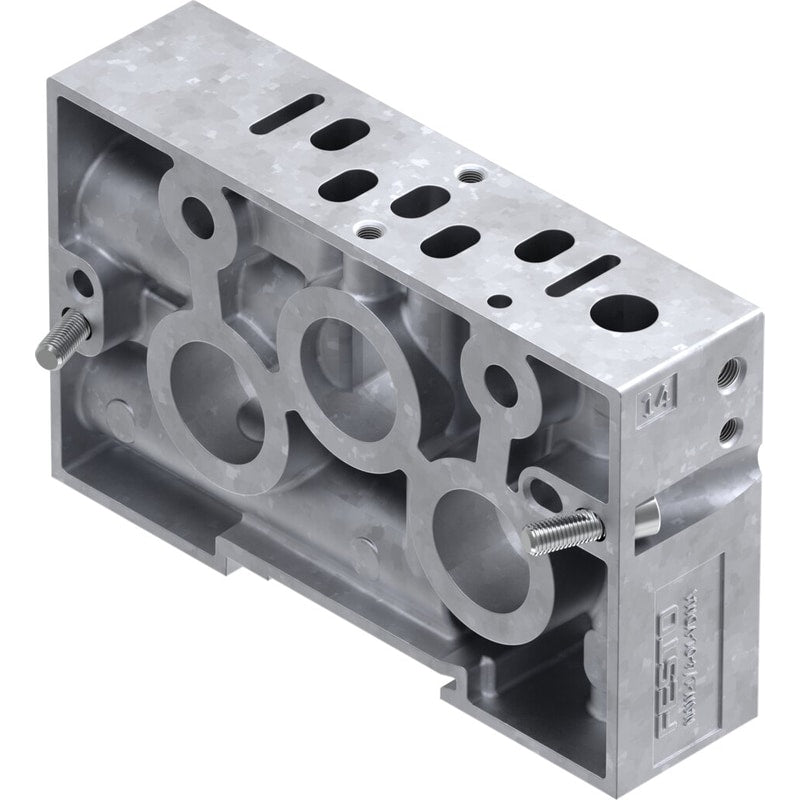

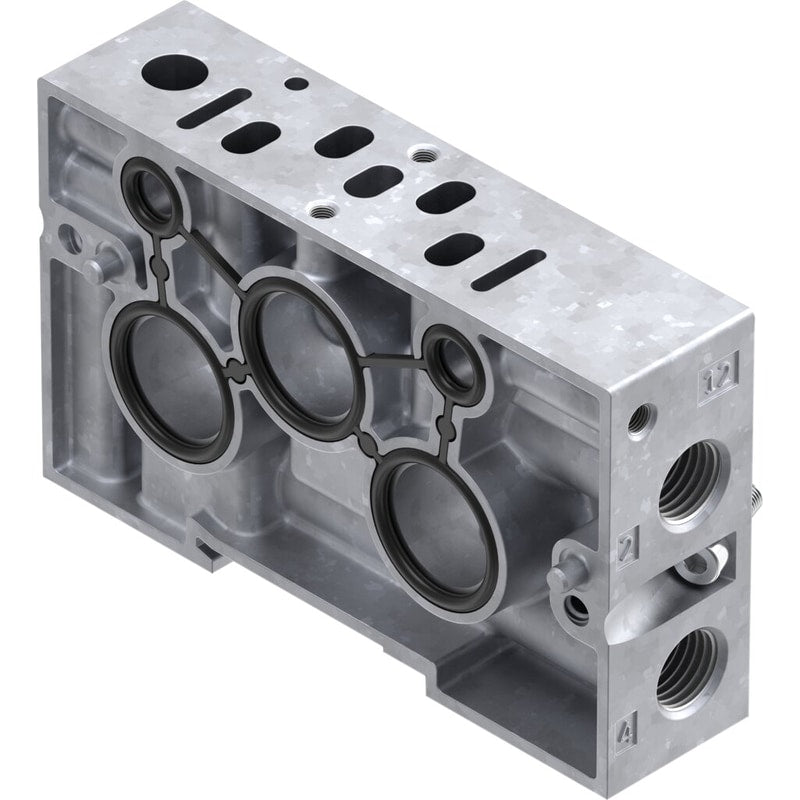

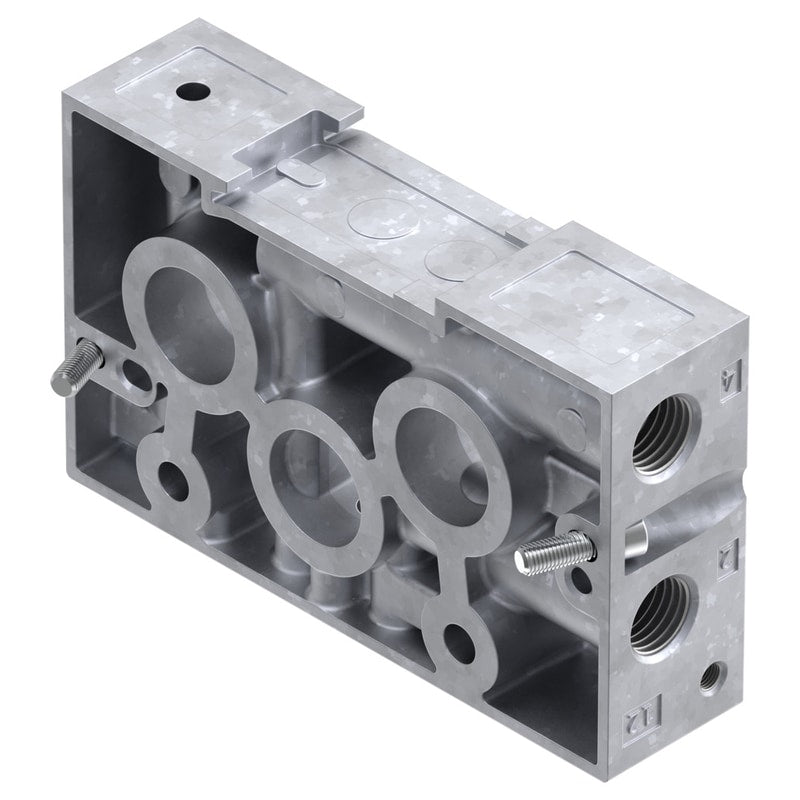

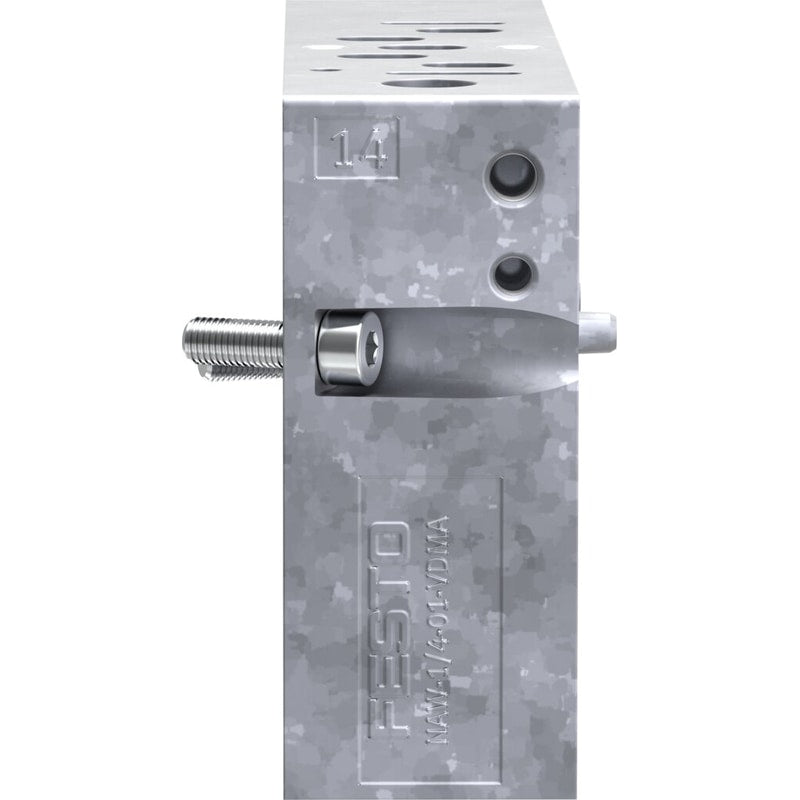

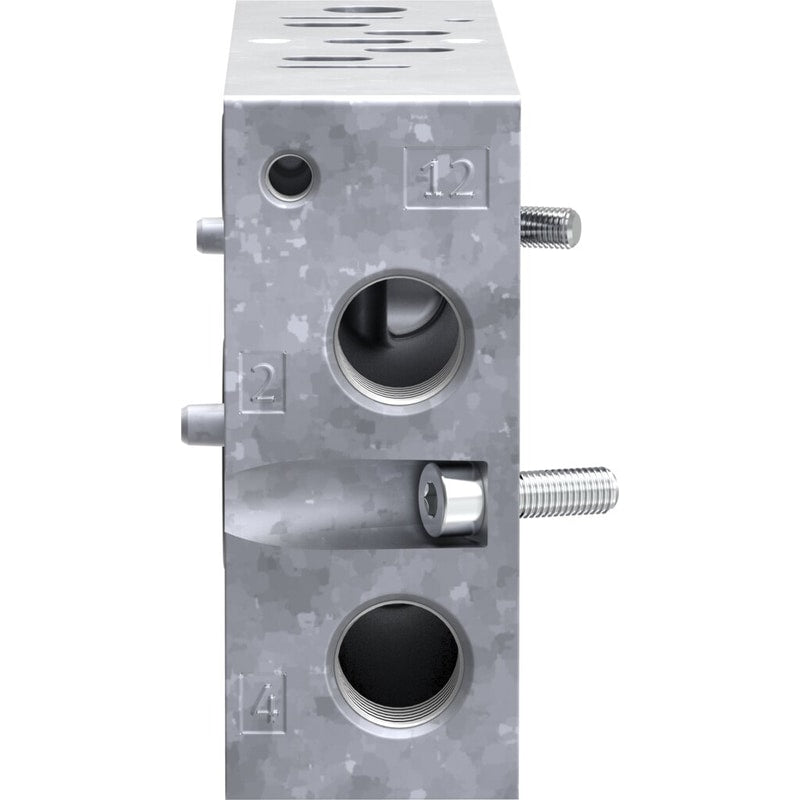

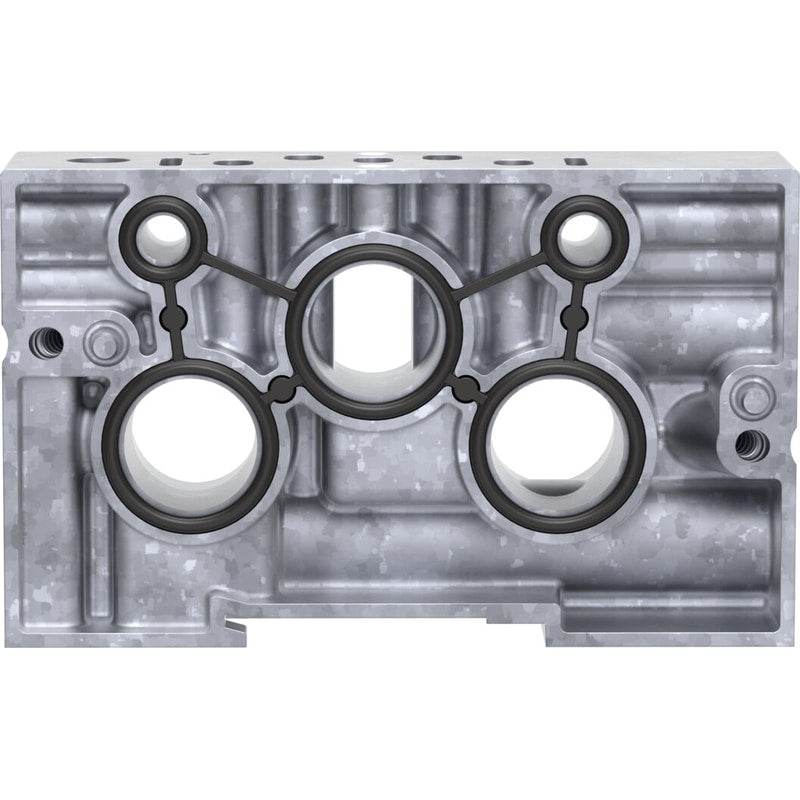

Manifold sub-base
NAW-1/4-01-VDMA-VL
161103
GTIN 4052568071813
Vendor Festo
Regular price
$43.74
Unit price
NAW-1/4-01-VDMA-VL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NAW-1/4-01-VDMA-VL
Regular price
$43.74
Unit price
NAW-1/4-01-VDMA-VL is backordered and will ship as soon as it is back in stock.
manifold sub-base NAW-1/4-01-VDMA-VL Connections at side. Width=26 mm, Based on the standard=ISO 15407-1, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Product weight=225 g
| Width | 26 mm |
|---|---|
| Based on the standard | ISO 15407-1 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Product weight | 225 g |
| Pilot air port 12 | M5 |
| Pilot air port 14 | M5 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Material of connecting plate | Aluminium die cast |
