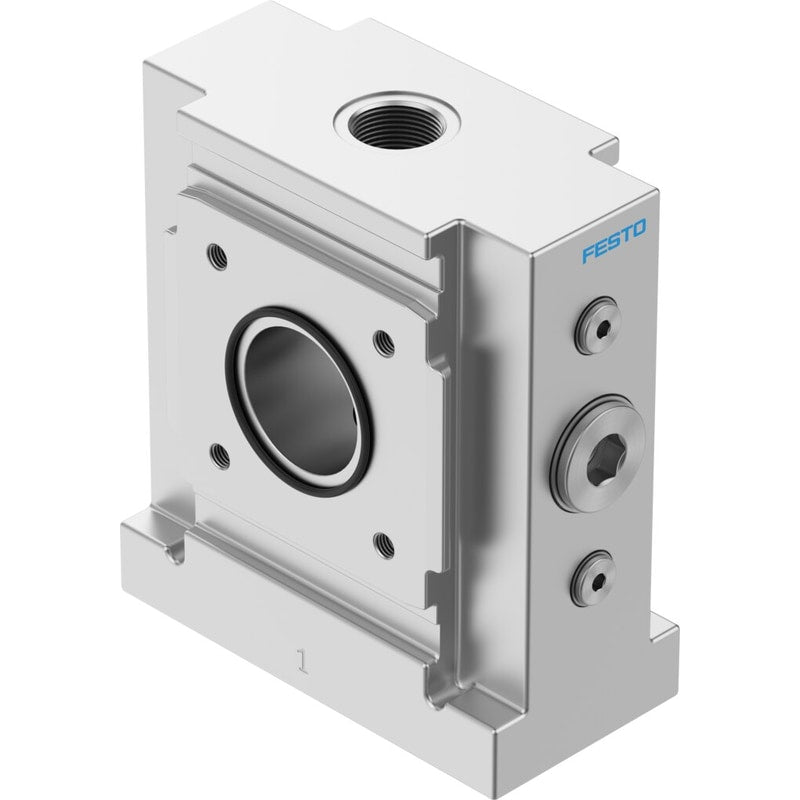

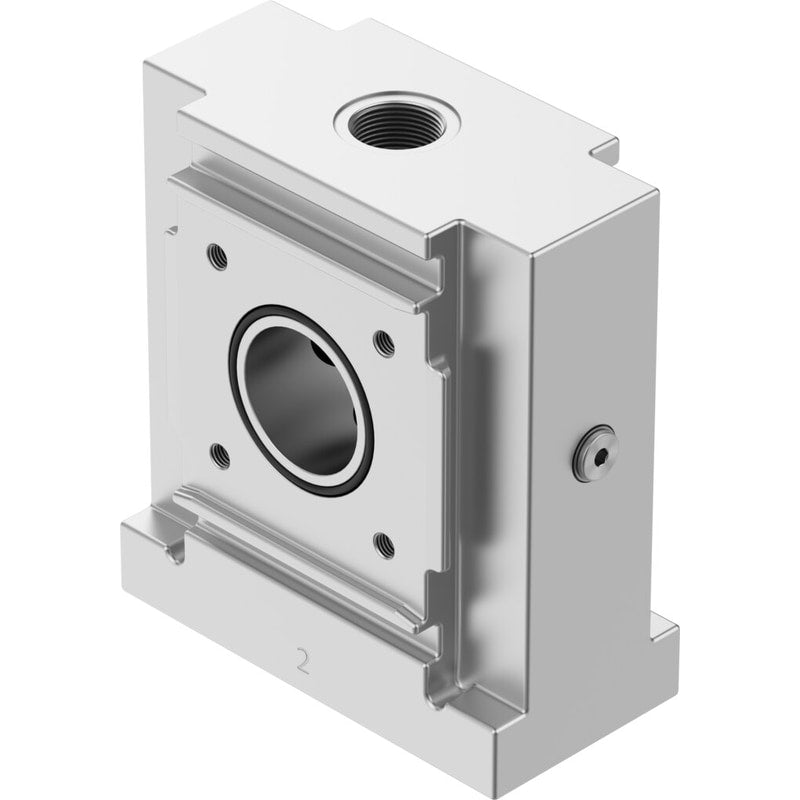

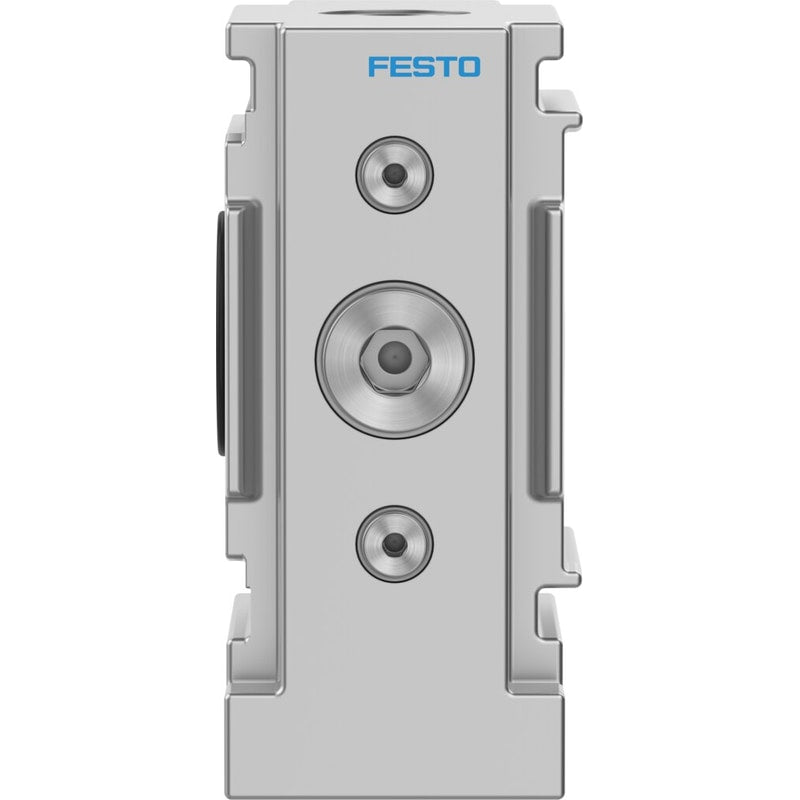

Branching module
PMBL-186-HP3-H
1609073
GTIN 4052568263607
Vendor Festo
- Pneumatic connection 3
- G1
- Ambient temperature
- 5 °C - 60 °C
- Operating pressure
- 0 bar - 50 bar
Regular price
$1,477.22
Unit price
Branching module PMBL-186-HP3-H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PMBL-186-HP3-H
Regular price
$1,477.22
Unit price
Branching module PMBL-186-HP3-H is backordered and will ship as soon as it is back in stock.
| Nominal width DN | 54 |
|---|---|
| Series | L |
| Mounting position | Any |
| Structural design | Branching module |
| Symbol | 00991510 |
| Operating pressure | 0MPa |
| Operating pressure | 0bar |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -10°C |
| For use in the food industry | See supplementary material information |
| Temperature of medium | 5°C |
| Ambient temperature | 5°C |
| Pneumatic connection 3 | G1 |
| Pneumatic connection 4 | G1 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
