Proximity sensor
SME-8-O-K-LED-24
160251
GTIN 4052568071752
Vendor Festo
- DC operating voltage range
- 12 V - 30 V
- Switching element function
- N/C contact
- Switching output
- Contact-based, bipolar
Regular price
$90.27
Unit price
SME-8-O-K-LED-24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SME-8-O-K-LED-24
Regular price
$90.27
Unit price
SME-8-O-K-LED-24 is backordered and will ship as soon as it is back in stock.

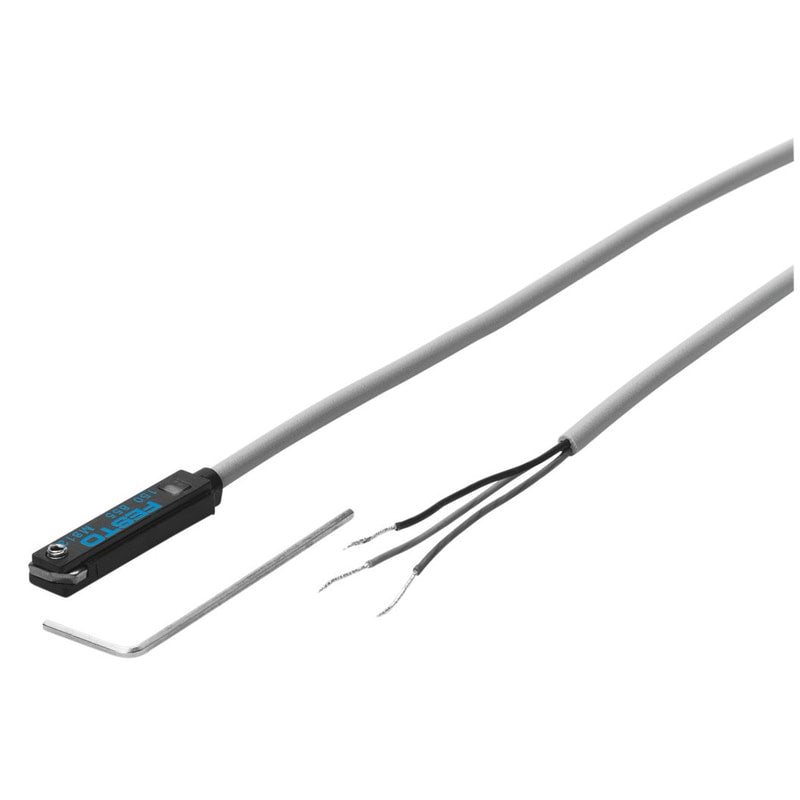

proximity sensor SME-8-O-K-LED-24 Electric, with reed contact, N/C contact, for drives with T-slot, with cable. Design=for T-slot, Conforms to standard=EN 60947-5-2, Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS)
| Design | for T-slot |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Mark |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Measuring principle | Reed magnetic |
| Ambient temperature | '-40 ... 60 °C |
| Switch output | with contact, bipolar |
| Switching element function | Normally closed contact |
| Reproducibility of switching value | '+/- 0,1 mm |
| Switch-on time | 2 ms |
| Switch-off time | 0.2 ms |
| Max. output current | 50 mA |
