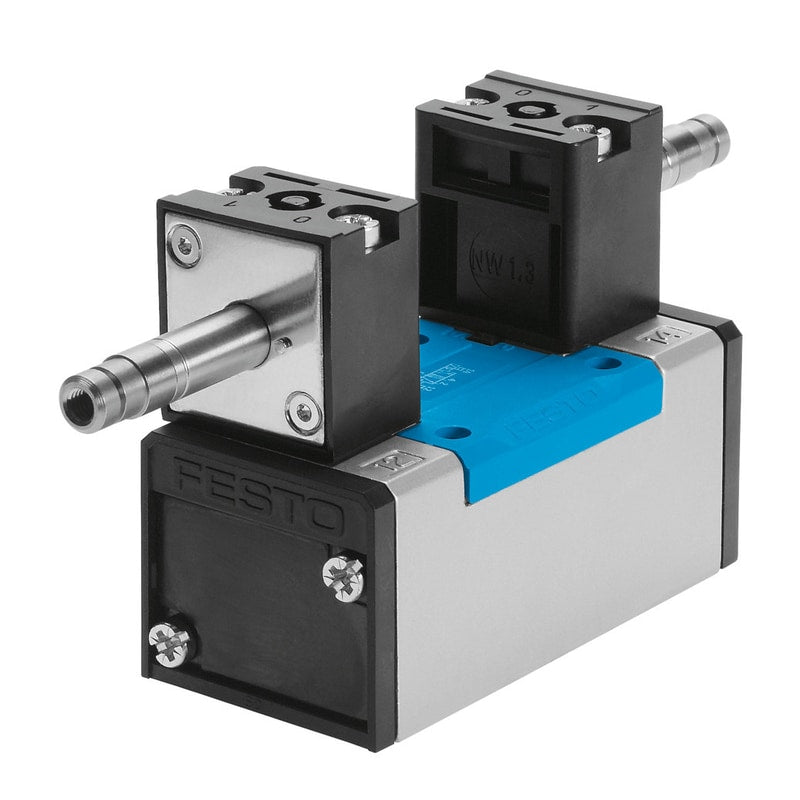

Air solenoid valve
JMN1H-5/2-D-1-S-C
159689
GTIN 4052568126841
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic connection 1
- Sub-base, size 1 as per ISO 5599-1
- Actuation type
- Electrical
Regular price
$205.15
Unit price
JMN1H-5/2-D-1-S-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMN1H-5/2-D-1-S-C
Regular price
$205.15
Unit price
JMN1H-5/2-D-1-S-C is backordered and will ship as soon as it is back in stock.

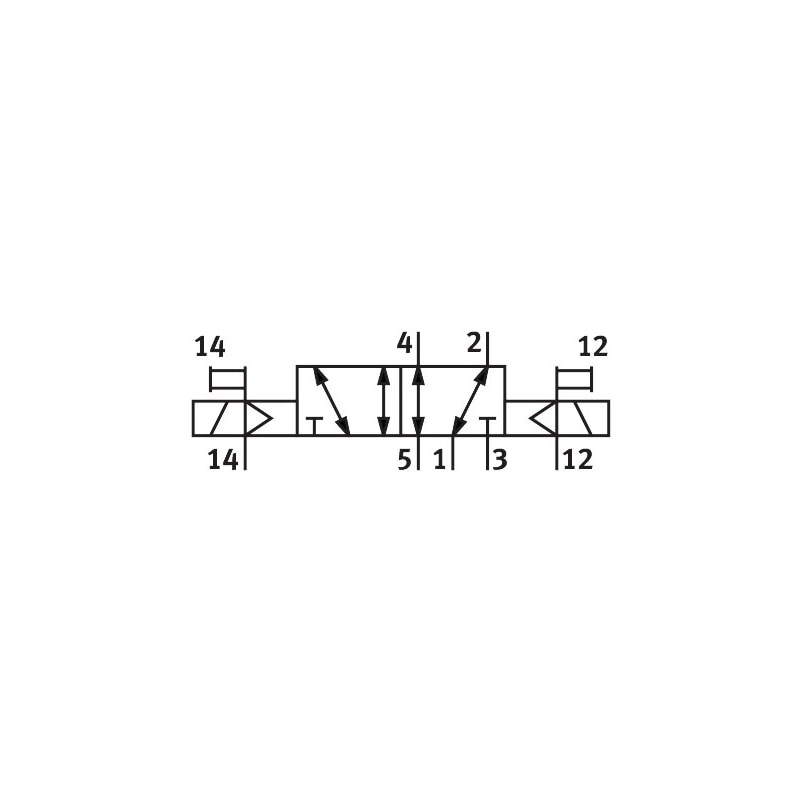

solenoid valve JMN1H-5/2-D-1-S-C As per ISO 5599/1, with manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function=5/2 bistable, Type of actuation=electrical, Width=42 mm, Standard nominal flow rate=1200 l/min, Operating pressure=-0,9 - 16 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1,200 l/min |
| Operating pressure | '-0.9 ... 16 bar |
| Design structure | Piston slide |
| Protection class | IP65 |
| Maritime classification | see certificate |
| Nominal size | 8 mm |
| Grid dimension | 43 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
