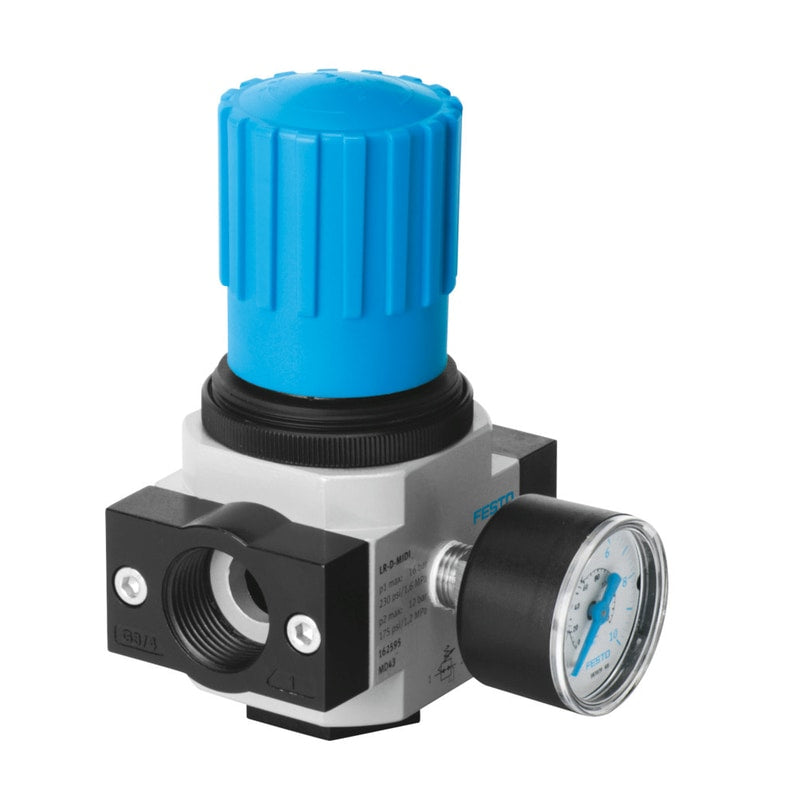

Pressure regulator
LR-1-D-MAXI
159627
GTIN 4052568011871
Vendor Festo
- Pneumatic connection 1
- G1
- Normal nominal flow rate (normalized to DIN 1343)
- 11500 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Max. pressure hysteresis
- 0.4 bar
Regular price
$365.28
Unit price
Pressure regulator LR-1-D-MAXI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LR-1-D-MAXI
Regular price
$365.28
Unit price
Pressure regulator LR-1-D-MAXI is backordered and will ship as soon as it is back in stock.

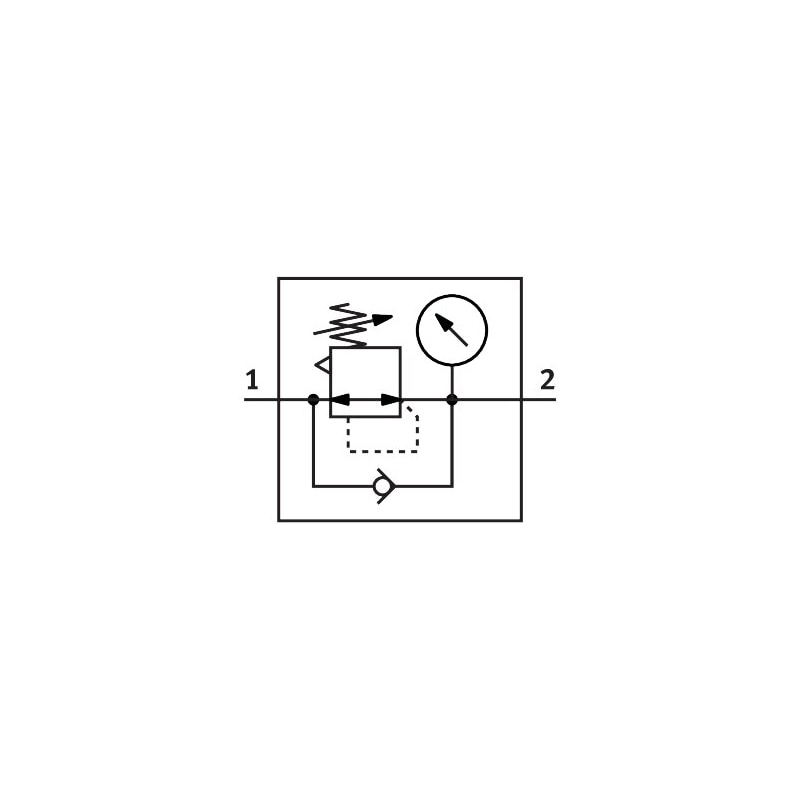

pressure regulator LR-1-D-MAXI With pressure gauge, working pressure up to 12 bar. Size=Maxi, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Any, Design structure=Piloted piston regulator
| Size | Maxi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Any |
| Design structure | Piloted piston regulator |
| Controller function | Output pressure constantwith secondary exhaust |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0 ... 16 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 11,500 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
