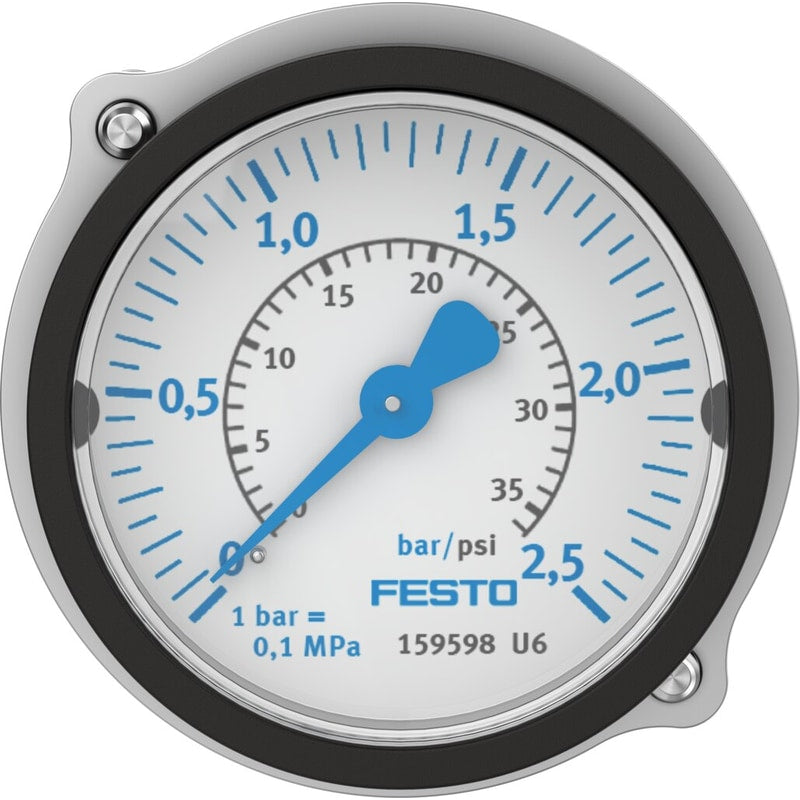

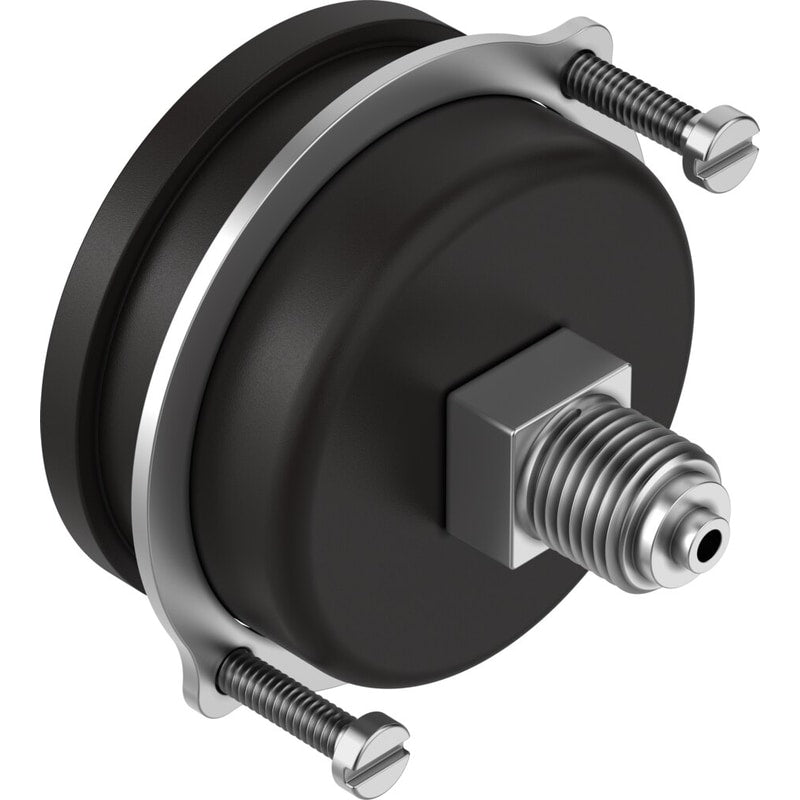

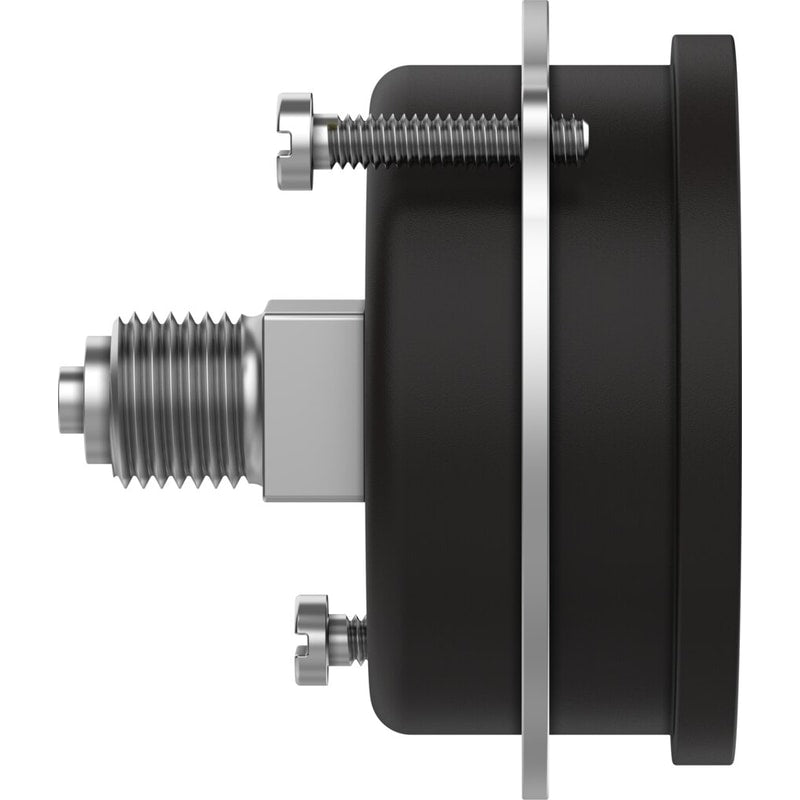

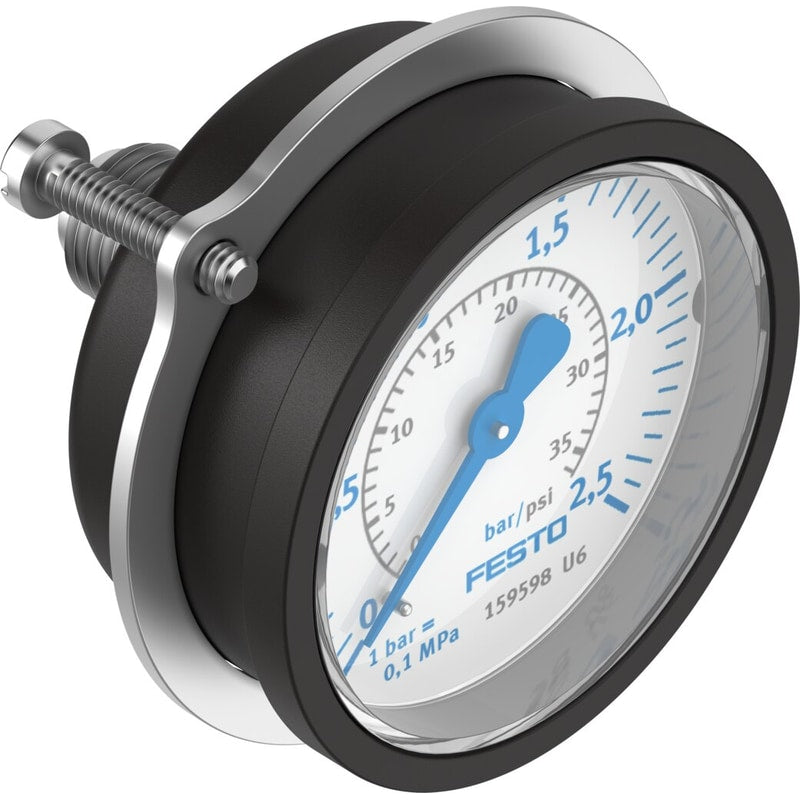

Flanged pressure gauge
FMA-50-2,5-1/4-EN
159598
GTIN 4052568071646
Vendor Festo
- Type of mounting
- Front panel mounting
- Display range
- 0 bar - 2.5 bar
- Pneumatic connection
- G1/4
- Measurement accuracy class
- 2.5
Regular price
$56.05
Unit price
Flanged pressure gauge FMA-50-2,5-1/4-EN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FMA-50-2,5-1/4-EN
Regular price
$56.05
Unit price
Flanged pressure gauge FMA-50-2,5-1/4-EN is backordered and will ship as soon as it is back in stock.
flanged pressure gauge FMA-50-2,5-1/4-EN With display unit in bar and psi. Indicating range [bar]=0 - 2,5 bar, Conforms to standard=EN 837-1, Nominal size of pressure gauge=50, Design structure=Bourdon-tube pressure gauge, Mounting type=Front panel installation
| Indicating range [bar] | 0 ... 2.5 bar |
|---|---|
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 50 |
| Design structure | Bourdon-tube pressure gauge |
| Mounting type | Front panel installation |
| Operating medium | Inert gasesNeutral fluids |
| Operating pressure | 0 ... 2.5 bar |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 2,5 |
| Protection class | IP43 |
| Medium temperature | '-20 ... 60 °C |
| Ambient temperature | '-20 ... 60 °C |
| Materials note | Conforms to RoHS |
