Filter
LF-1/2-D-MIDI
159578
GTIN 4052568011758
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 3000 l/min
- Operating pressure
- 0 bar - 16 bar
- Grade of filtration
- 40 µm
Regular price
$133.96
Unit price
LF-1/2-D-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

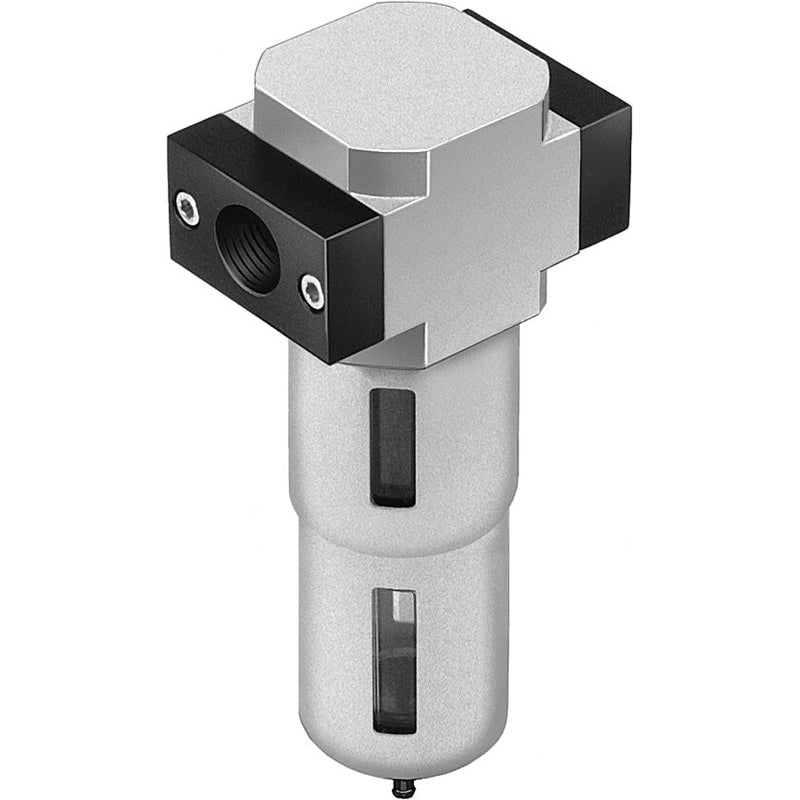

LF-1/2-D-MIDI
Regular price
$133.96
Unit price
LF-1/2-D-MIDI is backordered and will ship as soon as it is back in stock.
filter LF-1/2-D-MIDI With metal bowl guard. Size=Midi, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=manual rotary
| Size | Midi |
|---|---|
| Series | D |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | manual rotary |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 43 cm3 |
| Bowl guard | Metal bowl guard |
| Operating pressure | 0 ... 16 bar |
| Standard nominal flow rate | 3,000 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
