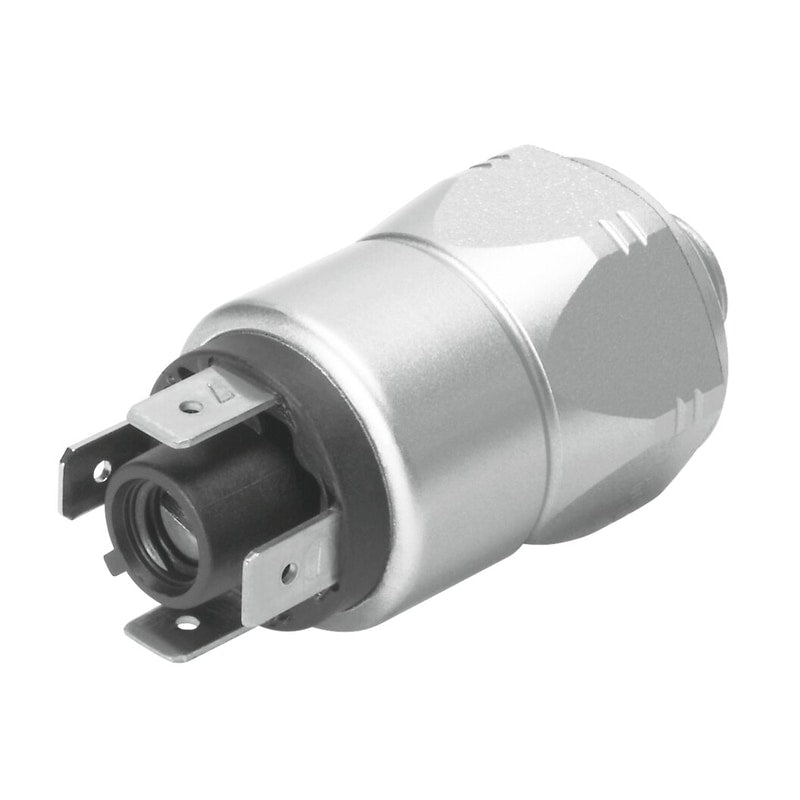

Pressure switch
PEV-1/4-A-SW27
159259
GTIN 4052568126544
Vendor Festo
Regular price
$179.31
Unit price
PEV-1/4-A-SW27 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PEV-1/4-A-SW27
Regular price
$179.31
Unit price
PEV-1/4-A-SW27 is backordered and will ship as soon as it is back in stock.
pressure switch PEV-1/4-A-SW27 Opens or closes an electrical circuit when a certain pressure value is reached. Adjustable pressure switching point. CE mark (see declaration of conformity)=to EU directive low-voltage devices, Measured variable=Relative pressure, Measurement method=Pneu./elect. pressure transducer, Pressure measuring range=1 - 10 bar, Operating pressure=1 - 10 bar
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
|---|---|
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Pressure measuring range | 1 ... 10 bar |
| Operating pressure | 1 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-20 ... 80 °C |
| Ambient temperature | '-20 ... 100 °C |
| Switching element function | Changeover switch |
| Max. switching frequency | 3 Hz |
| Max. switching output voltage AC | 250 V |
| Max. switching output voltage DC | 250 V |
