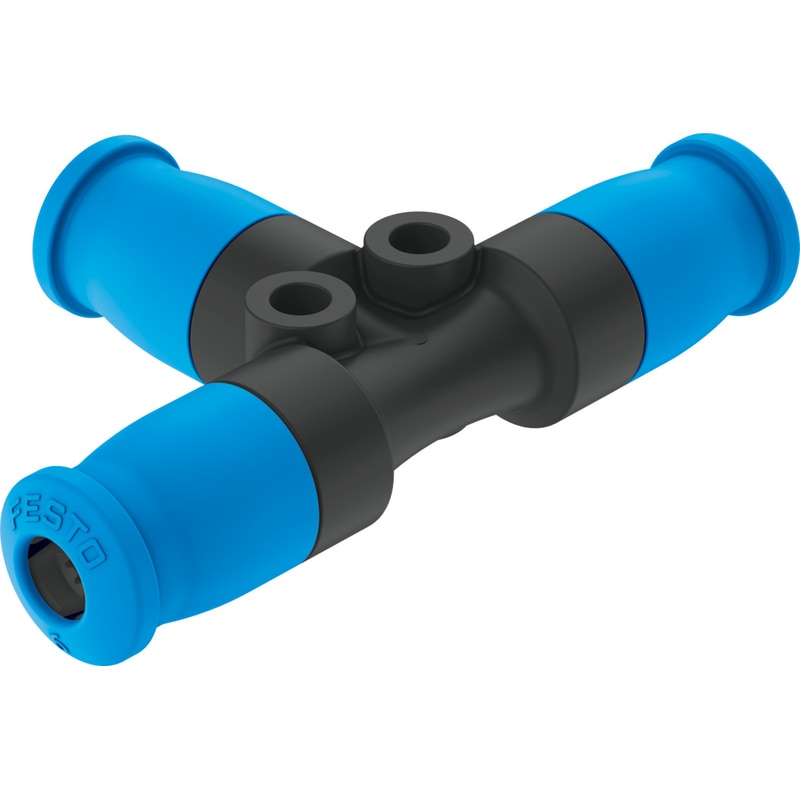

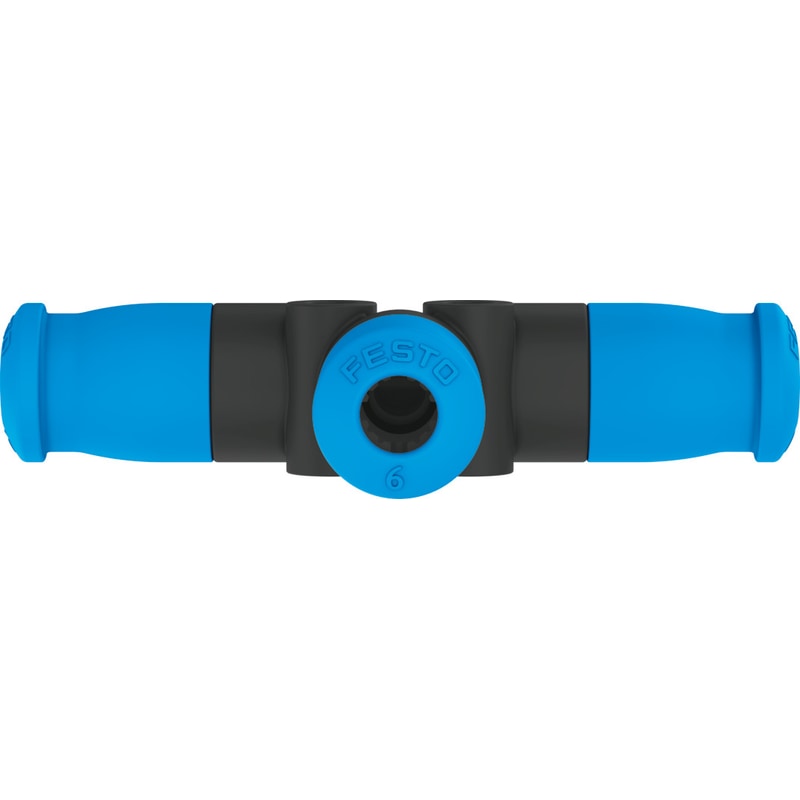

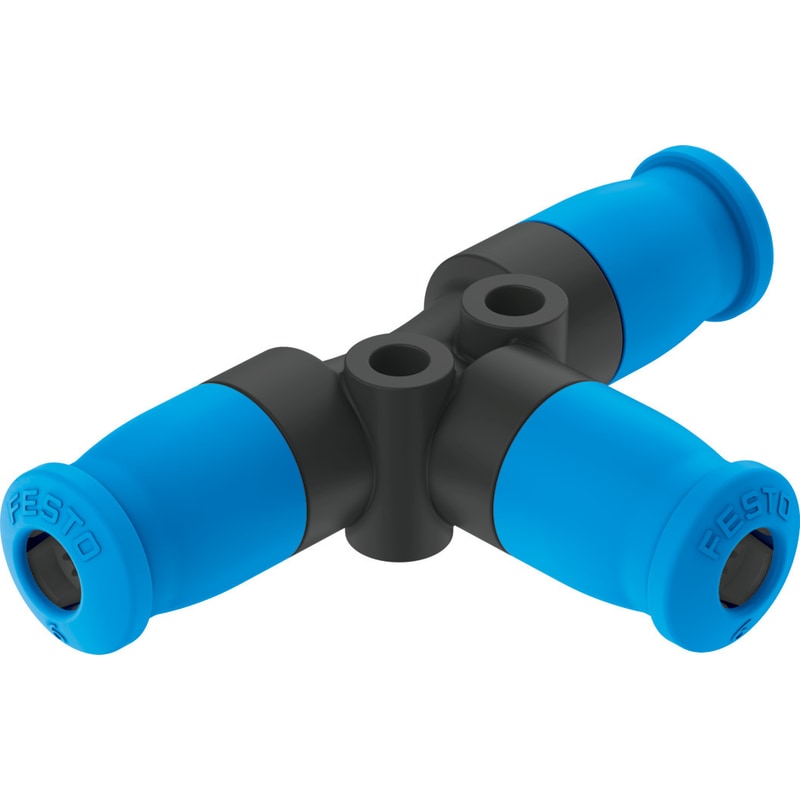

Click T-connector
NPKA-T-Q6-E-P10
1590710
GTIN 4052568062217
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Ambient temperature
- -10 °C - 60 °C
Regular price
$9.71
Unit price
NPKA-T-Q6-E-P10 Click T-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPKA-T-Q6-E-P10
Regular price
$9.71
Unit price
NPKA-T-Q6-E-P10 Click T-connector is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 4 mm |
| Type code | NPKA |
| Mounting position | Any |
| Pack size | 10 |
| Design | Push-pull principle |
| Operating pressure | -0.95 bar ... 10 bar |
| Temperature-dependent operating pressure | -0.95 bar ... 10 bar |
| Operating medium | Water as per manufacturer's declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| For use in the food industry | See supplementary material information |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 12.5 g |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Note on materials | RoHS-compliant |
| Housing material | PA66-GF30 |
| Material of threaded seal | PA66-GF30/TPE-U |
| Sleeve material | POM |
| Material of tubing seal | NBR |
