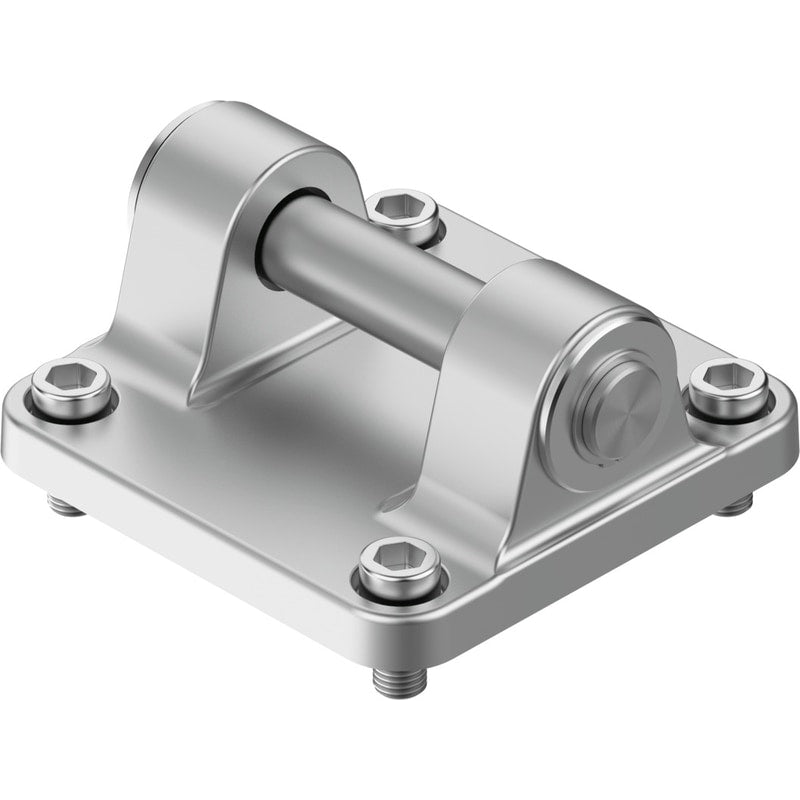

Clevis flange
SNGB-320
157513
GTIN 4052568125165
Vendor Festo
Regular price
$1,664.72
Unit price
SNGB-320 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SNGB-320
Regular price
$1,664.72
Unit price
SNGB-320 is backordered and will ship as soon as it is back in stock.
swivel flange SNGB-320 Suitable clevis foot LN, LSN. Size=320, Based on the standard=ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290), Corrosion resistance classification CRC=2 - Moderate corrosion stress, Ambient temperature=-40 - 90 °C, Product weight=26636 g
| Size | 320 |
|---|---|
| Based on the standard | ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-40 ... 90 °C |
| Product weight | 26,636 g |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material mounting | Nodular graphite cast iron |
| Material mounting pin | SteelGalvanised |
| Material bearing | Plastic |
| Material disc | steel, galvanized |
| Material screws | SteelGalvanised |
| Material lock | Spring steel, galvanised |
