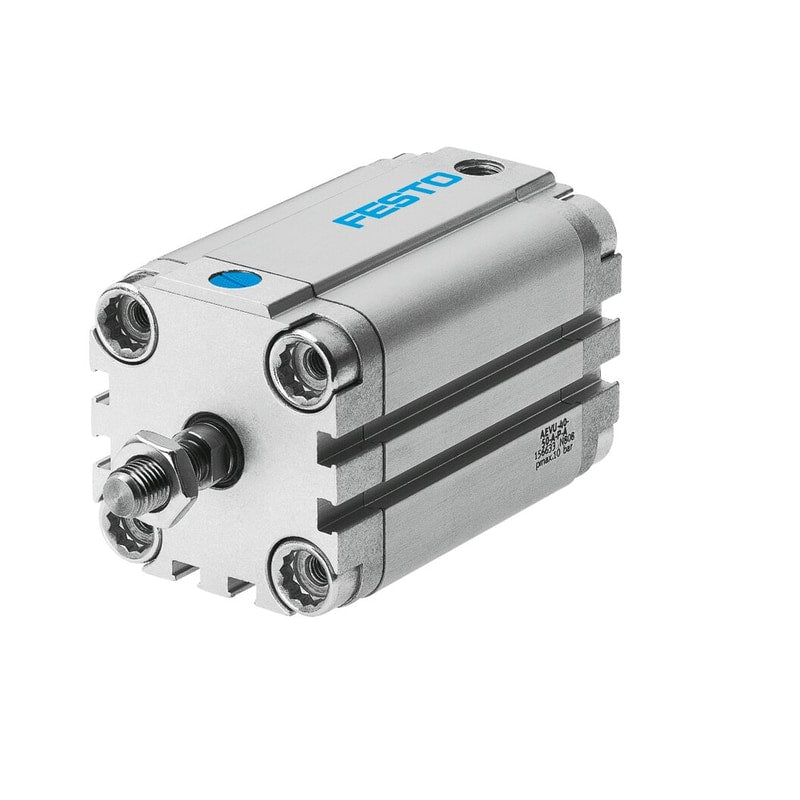

Compact cylinder
AEVU-50-20-A-P-A
157008
GTIN 4052568122447
Vendor Festo
- Mode of operation
- Pushing - Single-acting
- Piston diameter
- 50 mm
- Theoretical force at 6 bar, advancing
- 1121 N
- Stroke
- 20 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$405.18
Unit price
AEVU-50-20-A-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
AEVU-50-20-A-P-A
Regular price
$405.18
Unit price
AEVU-50-20-A-P-A is backordered and will ship as soon as it is back in stock.
compact cylinder AEVU-50-20-A-P-A Part number: 157008 Classic For proximity sensing, piston-rod end with male thread. Modern alternatives can be found by entering the first four characters of the type code in the search field.
| Stroke | 20 mm |
|---|---|
| Piston diameter | 50 mm |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | single-actingpushing action |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 0.8 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
