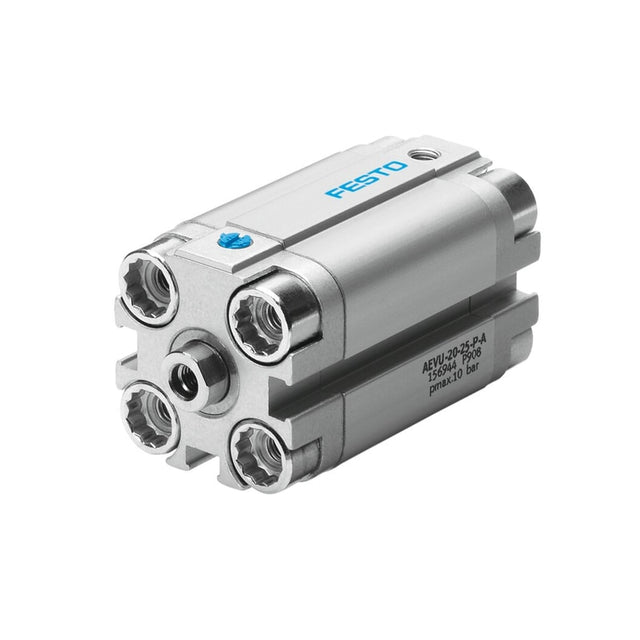

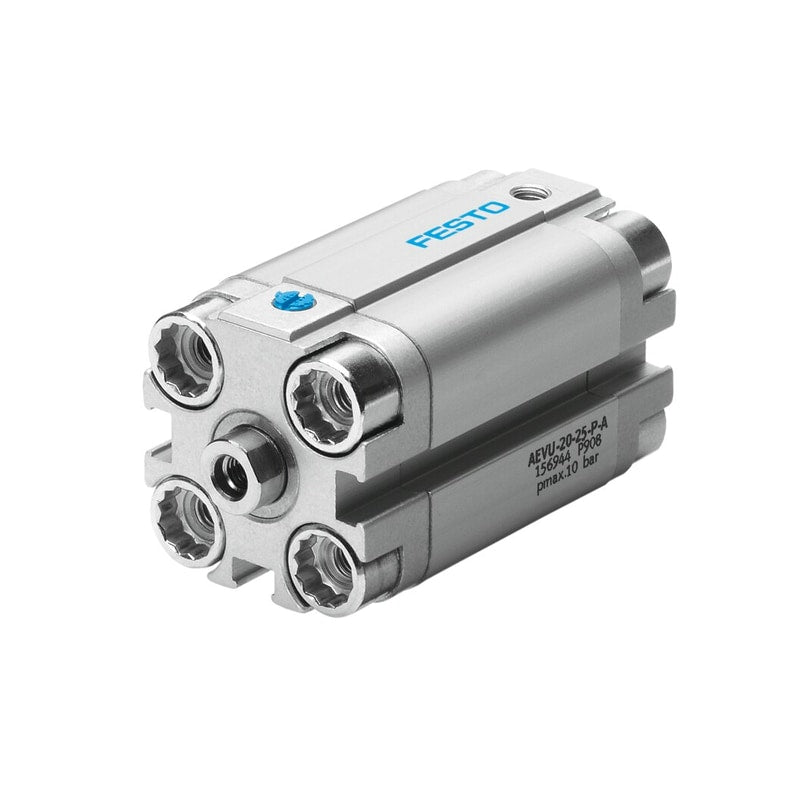

Compact cylinder
AEVU-16-25-P-A
156939
GTIN 4052568121822
Vendor Festo
- Mode of operation
- Pushing - Single-acting
- Piston diameter
- 16 mm
- Theoretical force at 6 bar, advancing
- 111 N
- Stroke
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$202.57
Unit price
AEVU-16-25-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
AEVU-16-25-P-A
Regular price
$202.57
Unit price
AEVU-16-25-P-A is backordered and will ship as soon as it is back in stock.
| Stroke | 25 mm |
|---|---|
| Piston diameter | 16 mm |
| Type code | AEVU |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | PushingSingle-acting |
| Piston rod end | Internal thread |
| Design | Piston rodPiston |
| Position sensing | For proximity sensor |
| Symbol | 991729 |
| Variants | Piston rod at one end |
| Operating pressure | 1.3 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -20 °C ... 80 °C |
| Impact energy in the end positions | 0.1 J |
| Theoretical force at 6 bar, advancing | 111 N |
| Moving mass at 0Â mm stroke | 12 g |
| Additional weight per 10Â mm stroke | 15 g |
| Basic weight with 0Â mm stroke | 89 g |
| Additional moving mass per 10Â mm stroke | 4 g |
| Type of mounting | With accessoriesOptionally:With through-hole |
| Flange screws material | High-alloy stainless steel |
| Cover material | Wrought aluminum alloy |
| Material of dynamic seals | TPE-U(PU)NBR |
| Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy |
