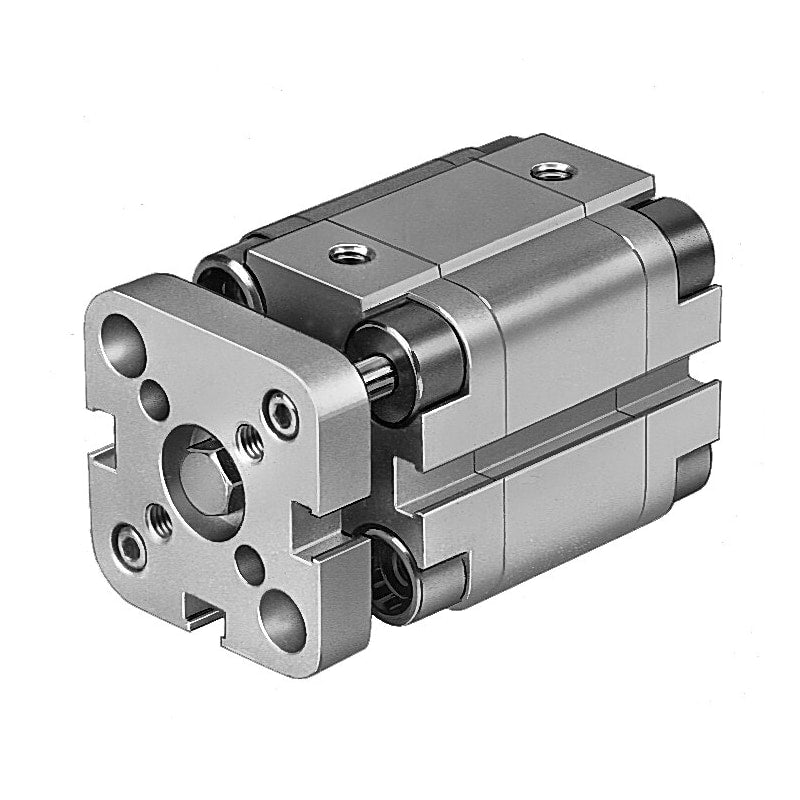

Compact cylinder
ADVUL-12-25-P-A
156848
GTIN 4052568121013
Vendor Festo
- Piston diameter
- 12 mm
- Theoretical force at 6 bar, advancing
- 68 N
- Stroke
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$302.89
Unit price
ADVUL-12-25-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ADVUL-12-25-P-A
Regular price
$302.89
Unit price
ADVUL-12-25-P-A is backordered and will ship as soon as it is back in stock.
| Stroke | 25 mm |
|---|---|
| Piston diameter | 12 mm |
| Type code | ADVUL |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Design | Piston rodPiston |
| Position sensing | For proximity sensor |
| Symbol | 991737 |
| Variants | Piston rod at one end |
| Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -20 °C ... 80 °C |
| Impact energy in the end positions | 0.07 J |
| Theoretical force at 6 bar, retracting | 51 N |
| Theoretical force at 6 bar, advancing | 68 N |
| Type of mounting | Optionally:With through-holeWith accessories |
| Pneumatic connection | M5 |
| Flange screws material | High-alloy stainless steel |
| Cover material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy |
