Barb tubing fitting
N-3/4-P-13-MS
15637
GTIN 4052568022068
Vendor Festo
- Pneumatic connection 1
- External thread G3/4
- Pneumatic connection 2
- for pneumatic tubing inside diameter 13 mm
- Nominal width
- 11 mm
Regular price
$32.73
Unit price
N-3/4-P-13-MS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
N-3/4-P-13-MS
Regular price
$32.73
Unit price
N-3/4-P-13-MS is backordered and will ship as soon as it is back in stock.

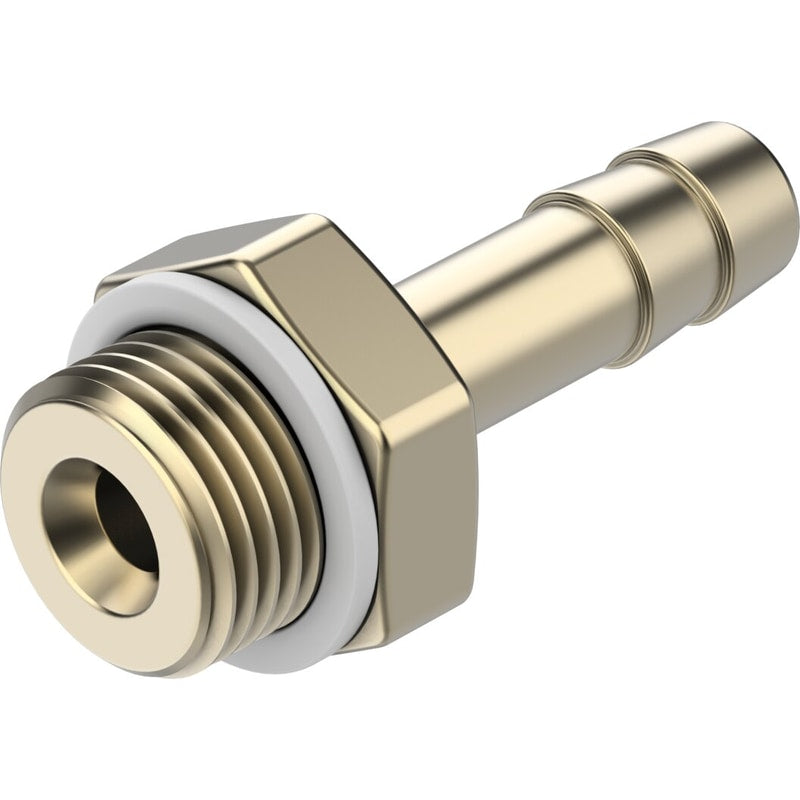

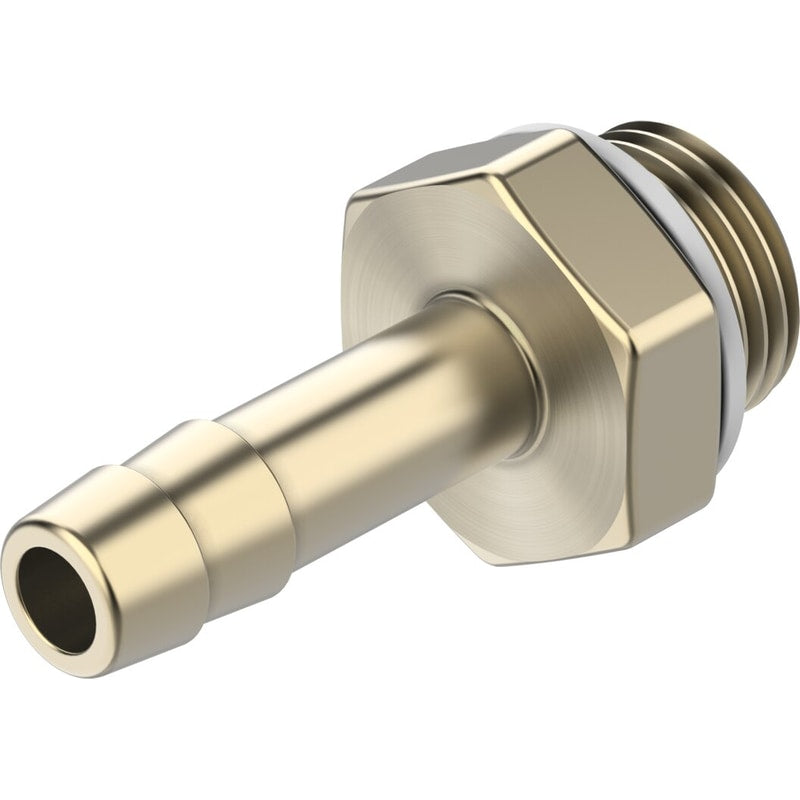

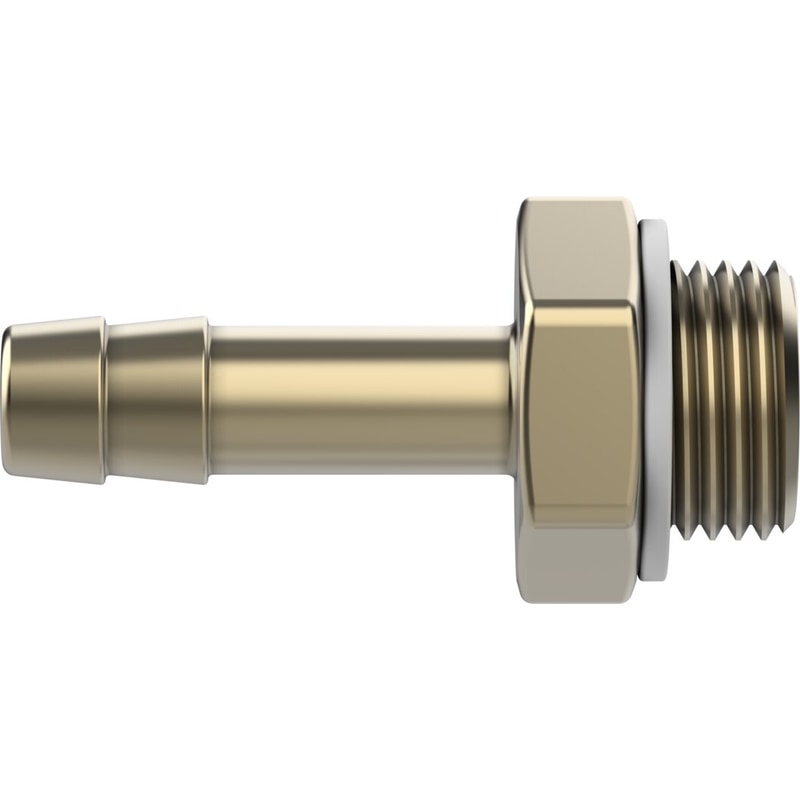

barbed hose fitting N-3/4-P-13-MS Part number: 15637 Brass version
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 11 mm |
| Type of seal on screw-in stud | Sealing ring |
| Operating pressure complete temperature range | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| connection 1 | Male thread G3/4 |
| connection 2 | For tubing internal diameter 13 mm |
| Materials note | Conforms to RoHS |
