Quickstepper
FSS-12-C
15609
GTIN 4052568002848
Vendor Festo
Regular price
$2,362.65
Unit price
FSS-12-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FSS-12-C
Regular price
$2,362.65
Unit price
FSS-12-C is backordered and will ship as soon as it is back in stock.

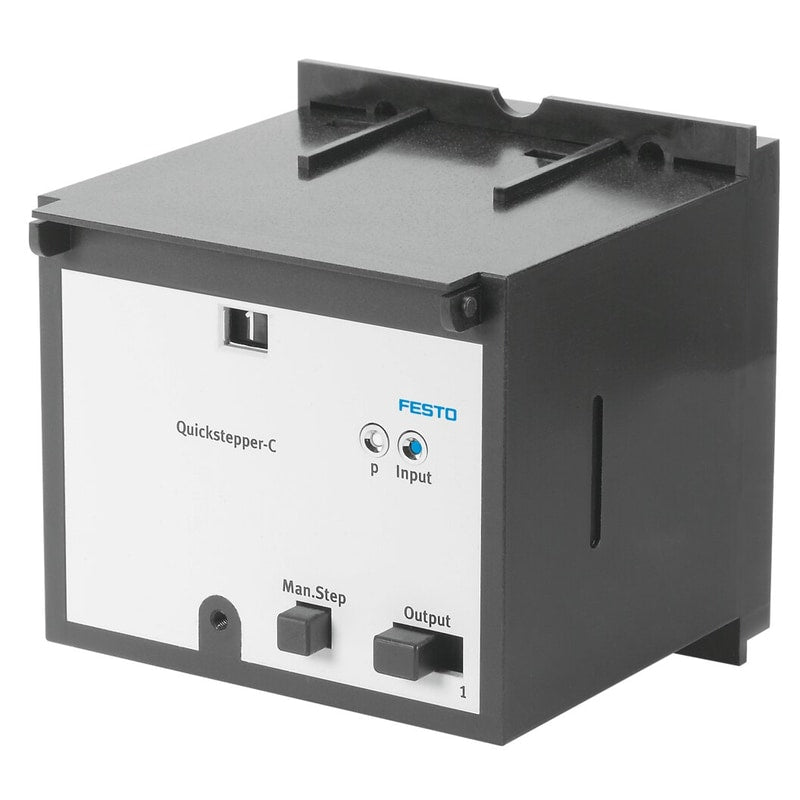

quickstepper FSS-12-C Part number: 15609 Pneumatic/mechanical sequencer with 12 steps and start logic circuits, on 2n sub-base.
| Nominal size | 2.5 mm |
|---|---|
| Design structure | Combinable sequencer |
| Acknowledgement drop-off pressure | <= 0.5 bar |
| Acknowledgement response pressure | >= 1.5 bar |
| Operating pressure | 2.5 ... 6 bar |
| Standard nominal flow rate | 60 l/min |
| Min. acknowledgement pulse length | 50 ms |
| ATEX category Gas | II 2G |
| Explosion ignition protection type Gas | Ex h IIC T4 Gb |
| ATEX category Dust | II 3D |
| Explosion ignition protection type Dust | Ex h IIIC T125°C Dc |
| Explosion-proof ambient temperature | '+5°C <= Ta <= +40°C |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:4:4] |
