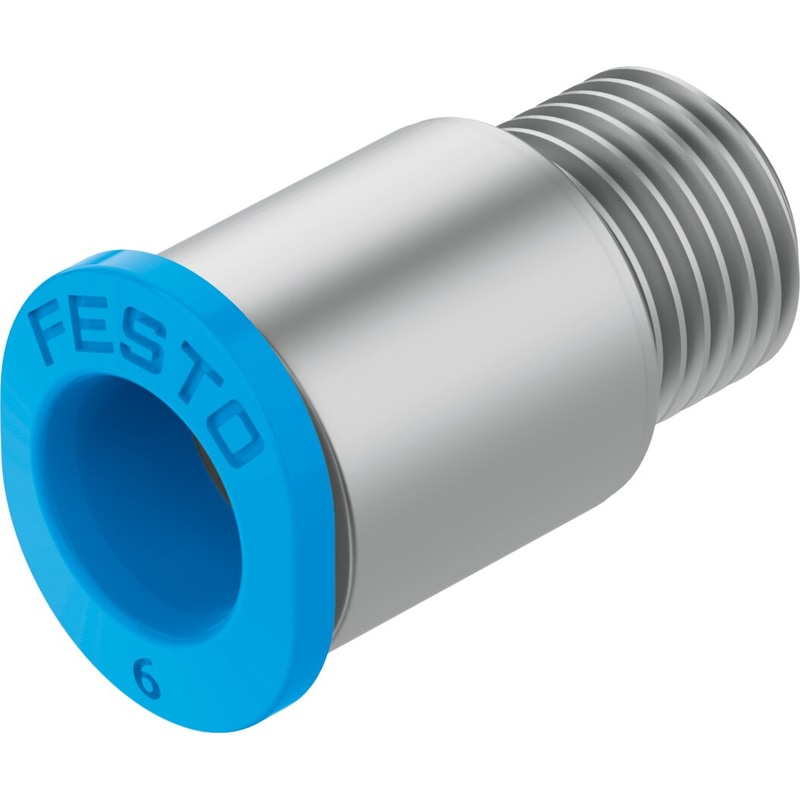

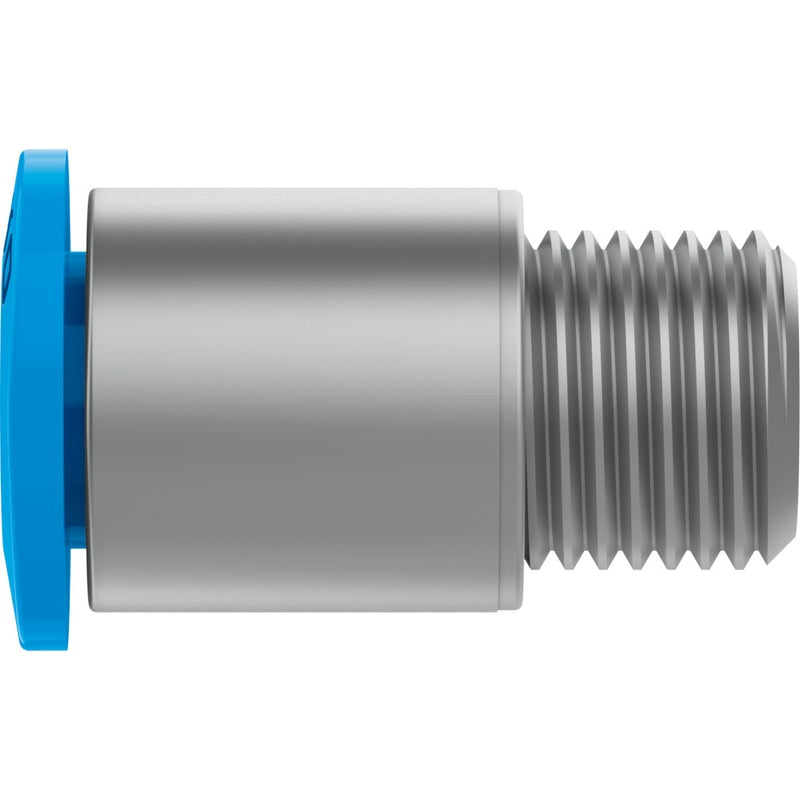

Push-in fitting
QSMP-M8X1.25-6
154434
GTIN 4052568259402
Vendor Festo
- Pneumatic connection 1
- External thread M8x1.25
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 4 mm
Regular price
$2.94
Unit price
QSMP-M8X1.25-6 Push-in fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSMP-M8X1.25-6
Regular price
$2.94
Unit price
QSMP-M8X1.25-6 Push-in fitting is backordered and will ship as soon as it is back in stock.

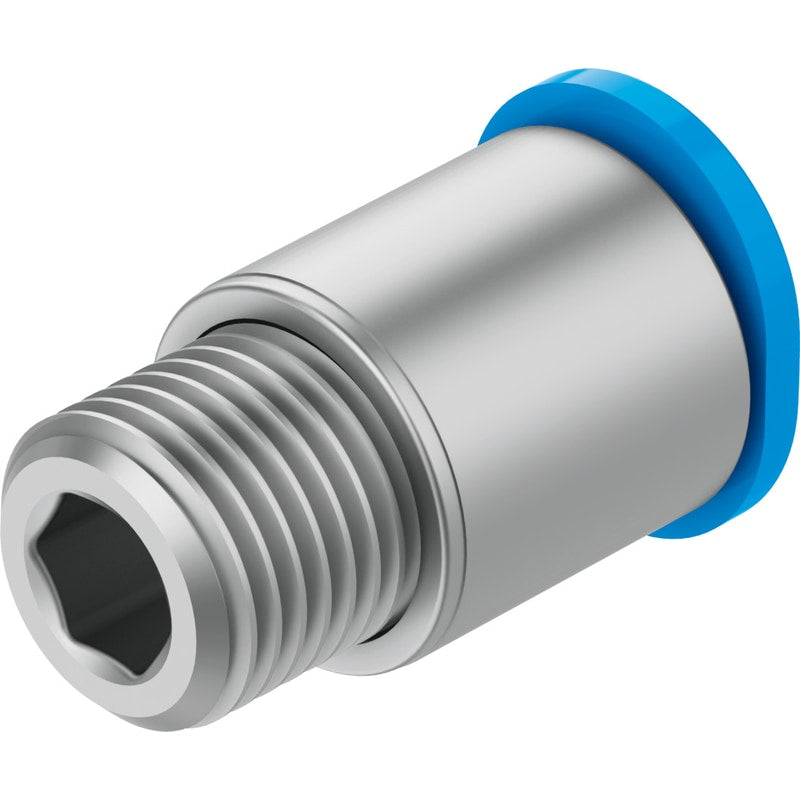

push-in fitting QSMP-M8X1.25-6 male thread with internal hexagon socket. Size=Mini, Nominal size=4 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=10
| Fitting Type | Male Straight |
|---|---|
| Size | Mini |
| Nominal size | 4 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 4.7 g |
| Number of outputs | 1 |
| Number of supply lines | 1 |
| connection 1 | Male thread M8x1.25 |
| connection 2 | For tubing outside diameter 6 mm |
| Colour of release ring | blue |
