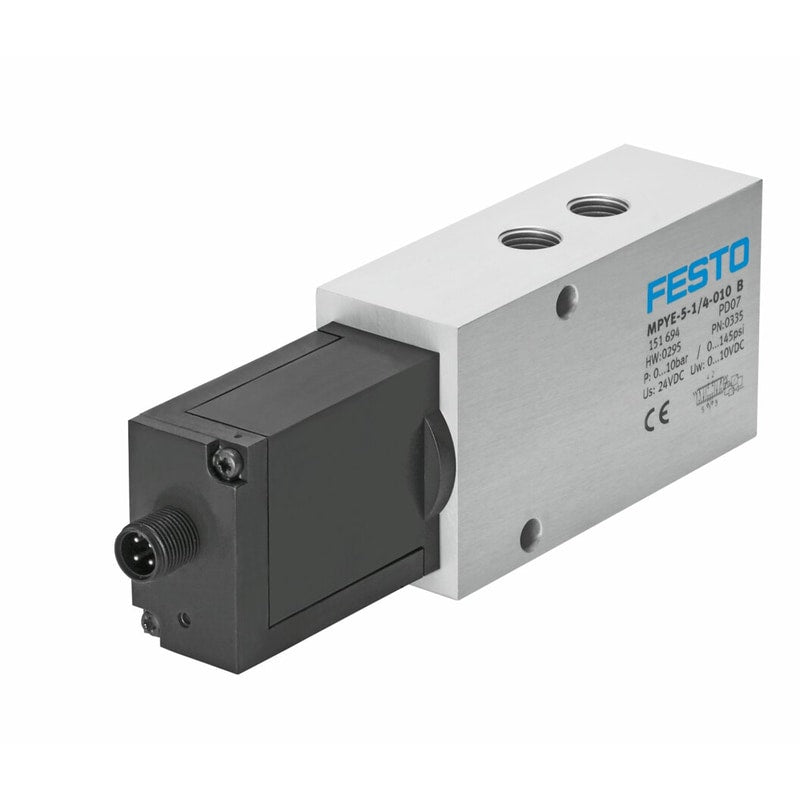

Proportional directional control valve
MPYE-5-M5-010-B
154200
GTIN 4052568117740
Vendor Festo
- Valve function
- 5/3, closed
- Pneumatic connection 1
- M5
- Normal nominal flow rate (normalized to DIN 1343)
- 100 l/min
- DC operating voltage range
- 17 V - 30 V
Regular price
$1,300.08
Unit price
MPYE-5-M5-010-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MPYE-5-M5-010-B
Regular price
$1,300.08
Unit price
MPYE-5-M5-010-B is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Nominal width | 2 mm |
| Type code | MPYE |
| Actuation type | Electrical |
| Sealing principle | Hard |
| Mounting position | Any |
| Design | Piston gate valve |
| Reset method | Magnetic spring |
| Safety instructions | MPYE safety position: if the power supply cable breaks, the blocked mid-position is approached. |
| Type of control | Direct |
| Flow direction | Non-reversible |

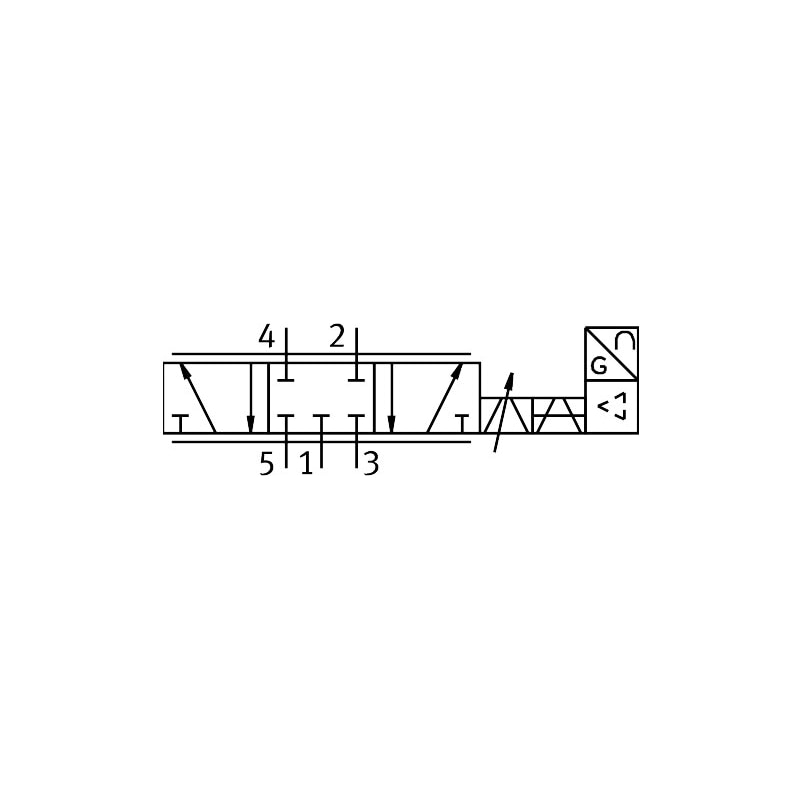

| Symbol | 995308 |
| Valve function | 5/3, closed |
| Reverse polarity protection | for all electrical connections |
| Operating pressure | 0 bar ... 10 bar |
| b-value | 0.21 |
| C value | 0.45 l/sbar |
| Standard nominal flow rate | 100 l/min |
| Cut-off frequency | 115 Hz |
| Max. hysteresis | 0.004 |
| DC operating voltage range | 17 V ... 30 V |
| Residual ripple | 0.05 |
| Setpoint/actual values | Voltage type 0 - 10 V |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 5 °C ... 40 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 255 g |
| Electrical connection | PlugRound designM12x14-pin |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | M5 |
| Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | M5 |
| Note on materials | RoHS-compliant |
| Cover material | CoatedABS |
| Seals material | NBR |
| Housing material | AnodizedAluminum |
