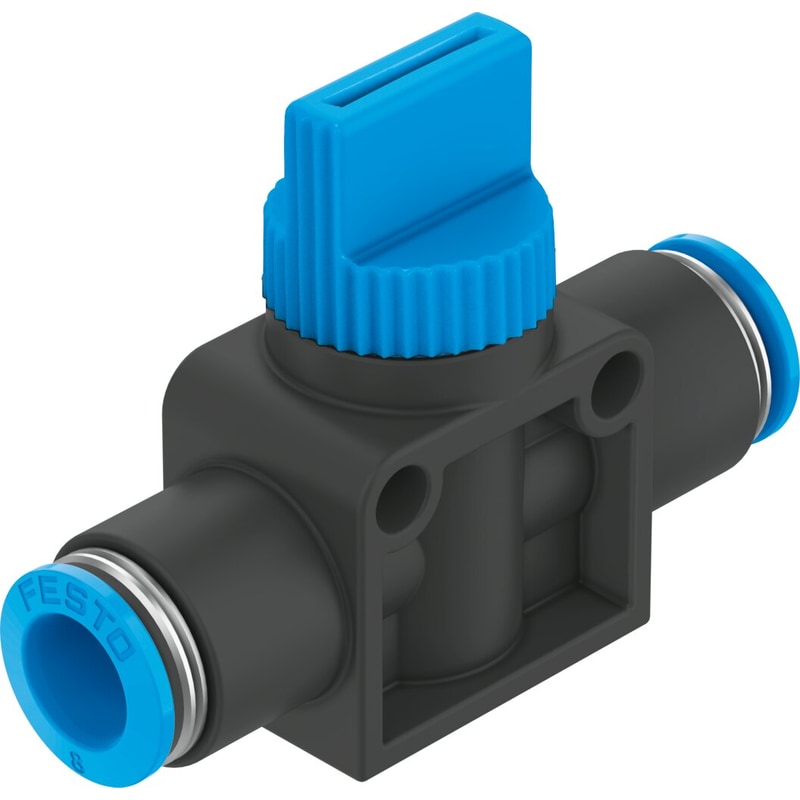

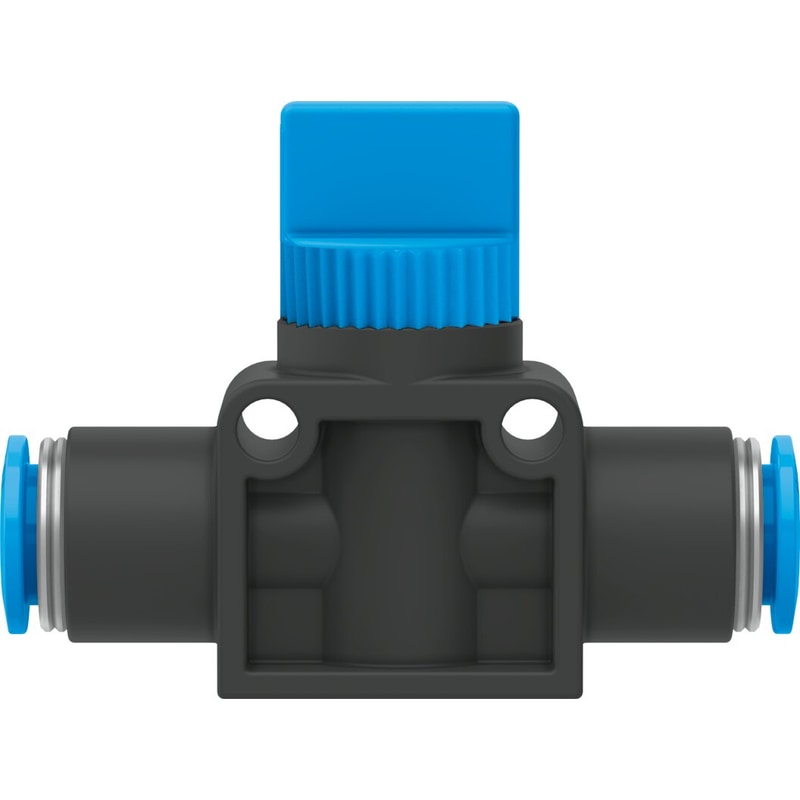

Shut-off valve
HE-3-QS-3/16-U
153975
GTIN 4052568311308
Vendor Festo
- Valve function
- 3/2, bistable
- Pneumatic connection 1
- QS-3/16
- Normal nominal flow rate (normalized to DIN 1343)
- 155.7 l/min
- Operating pressure
- -0.95 bar - 10 bar
- Actuation type
- Manual
Regular price
$32.53
Unit price
HE-3-QS-3/16-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HE-3-QS-3/16-U
Regular price
$32.53
Unit price
HE-3-QS-3/16-U is backordered and will ship as soon as it is back in stock.
| Type code | HE |
|---|---|
| Operating pressure | -0.095 MPa ... 1 MPa |
| Valve function | 3/2, bistable |
| Selection of additional function | With exhaust function |
| Pneumatic connection 1 | QS-3/16 |
| Pneumatic connection 2 | QS-3/16 |
| Actuation type | Manual |
| Type of mounting | Direct mounting via through-holeLine installationOptionally: |
| Standard nominal flow rate | 155.7 l/min |
| Nominal width | 3.2 mm |
| Operating pressure | -0.95 bar ... 10 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Housing material | PBT-reinforced |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Exhaust air function | Without flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Piston gate valve |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 00997329 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 0 °C ... 60 °C |
| Product weight | 23 g |
| Pneumatic connection 3 | Not ducted |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
