Push-in L-fitting

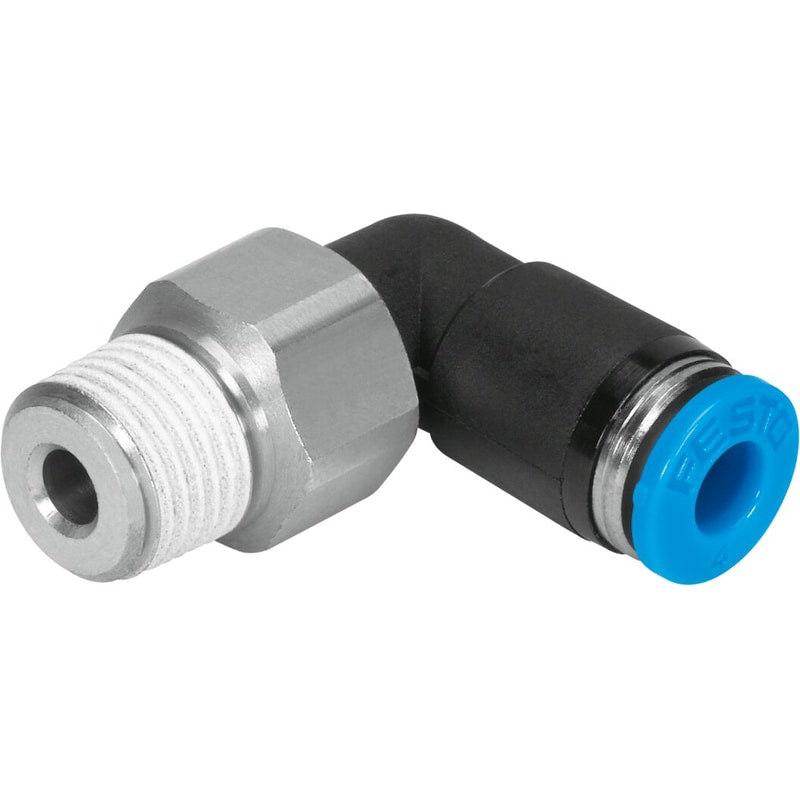

QSRL-1/8-1/4-U push-in L-fitting
153966
GTIN 4052568311216
Vendor Festo
- Pneumatic connection 1
- external thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
Regular price
$19.36
Unit price
QSRL-1/8-1/4-U push-in L-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSRL-1/8-1/4-U push-in L-fitting
Regular price
$19.36
Unit price
QSRL-1/8-1/4-U push-in L-fitting is backordered and will ship as soon as it is back in stock.
push-in L-fitting QSRL-1/8-1/4-U 360° rotatable, with ball bearing, male thread with external hexagon. Size=Standard, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Male Elbow |
|---|---|
| Size | Standard |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 8 Nm |
| connection 1 | Male thread NPT1/8-27 |
| connection 2 | 1/4" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
