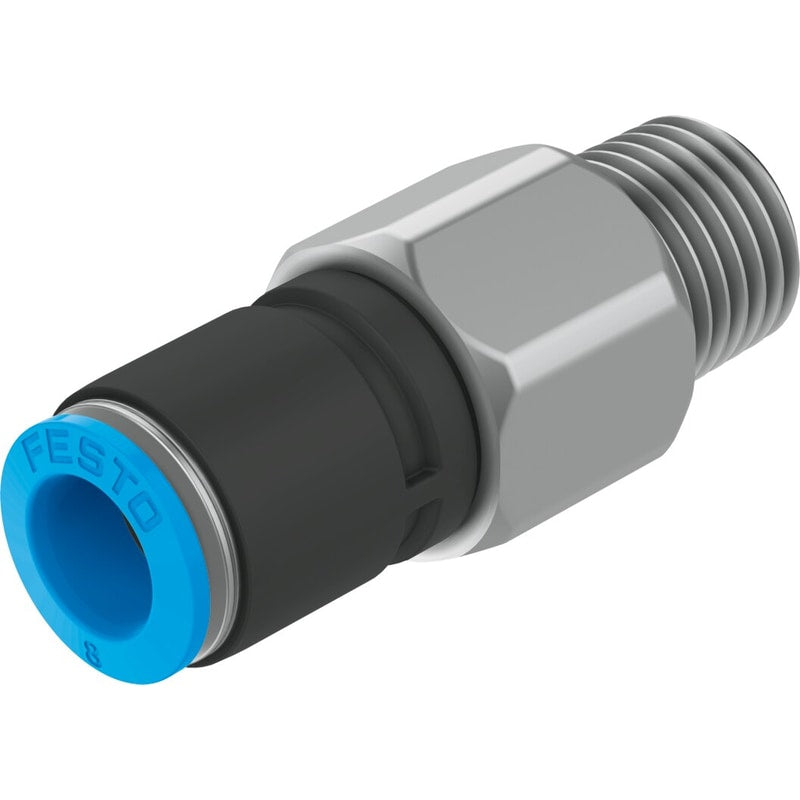

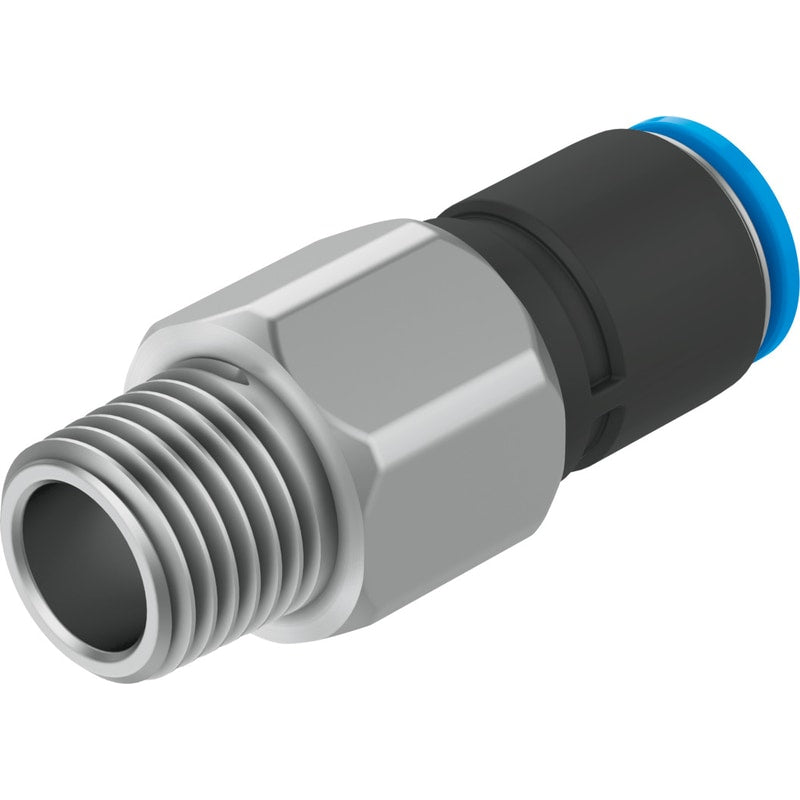

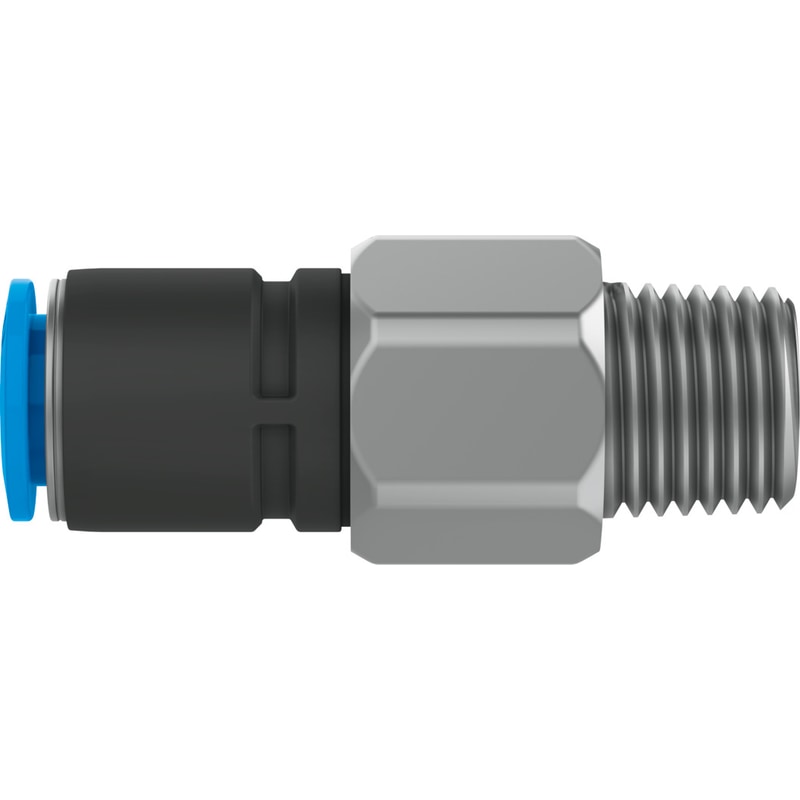

Push-in fitting, rotatable
QSR-1/8-1/4-U
153954
GTIN 4052568311094
Vendor Festo
- Pneumatic connection 1
- external thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
- Nominal width
- 3.4 mm
Regular price
$19.36
Unit price
QSR-1/8-1/4-U Push-in fitting, rotatable is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSR-1/8-1/4-U
Regular price
$19.36
Unit price
QSR-1/8-1/4-U Push-in fitting, rotatable is backordered and will ship as soon as it is back in stock.
rotary push-in fitting QSR-1/8-1/4-U 360° rotatable, with ball bearing, male thread with external hexagon. Size=Standard, Nominal size=3,4 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=1
| Fitting Type | Rotary Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 3.4 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 8 Nm |
| Product weight | 18 g |
| connection 1 | Male thread NPT1/8-27 |
| connection 2 | 1/4" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
