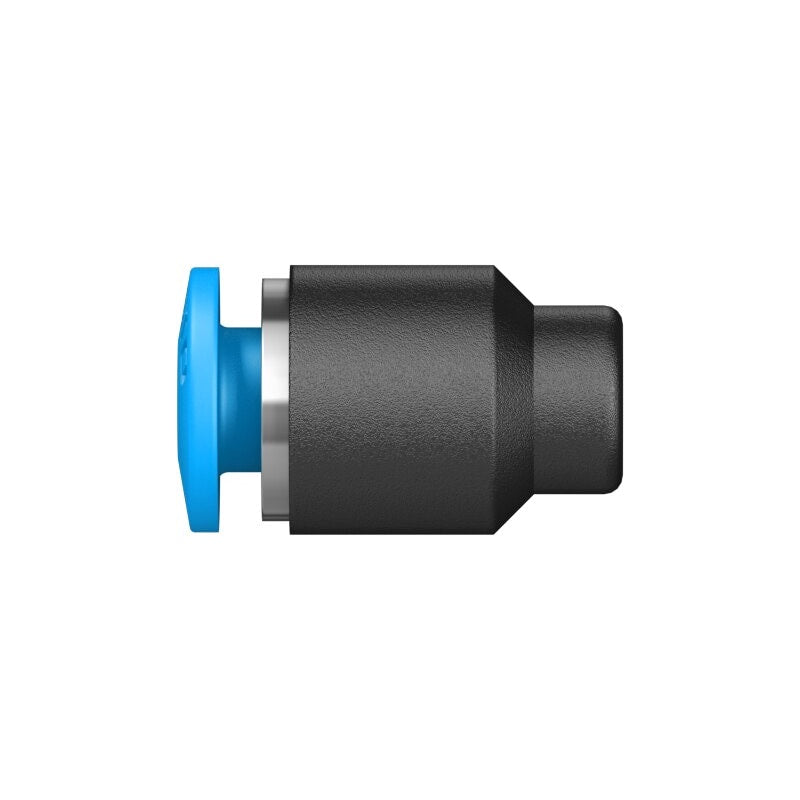

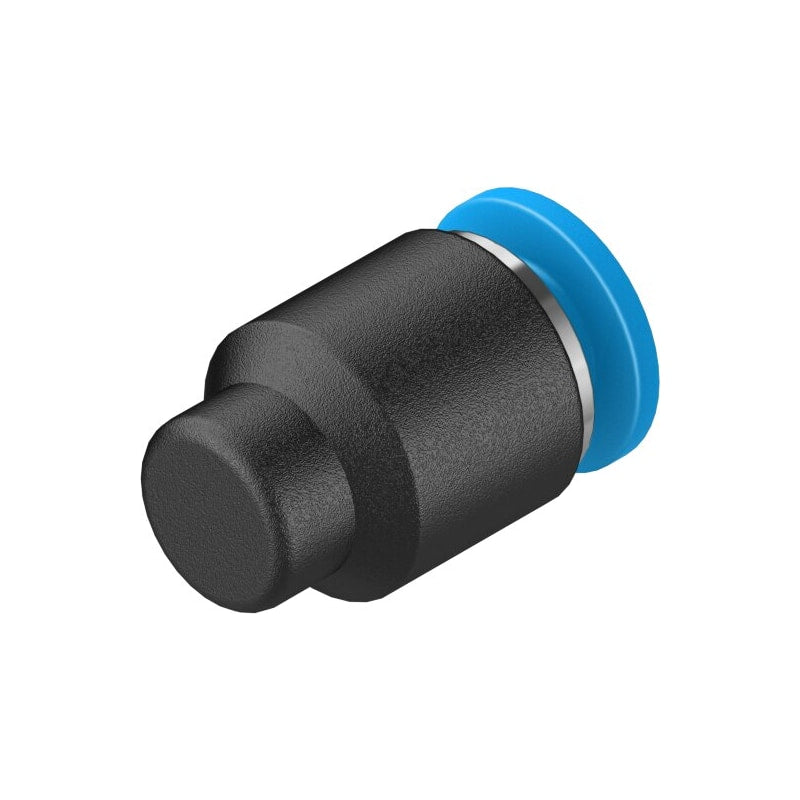

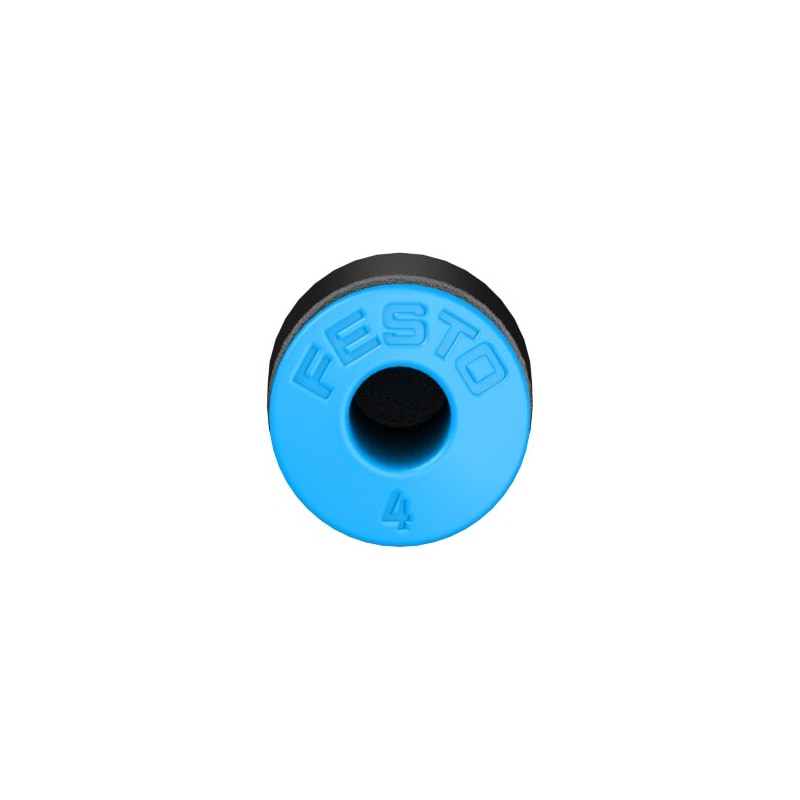

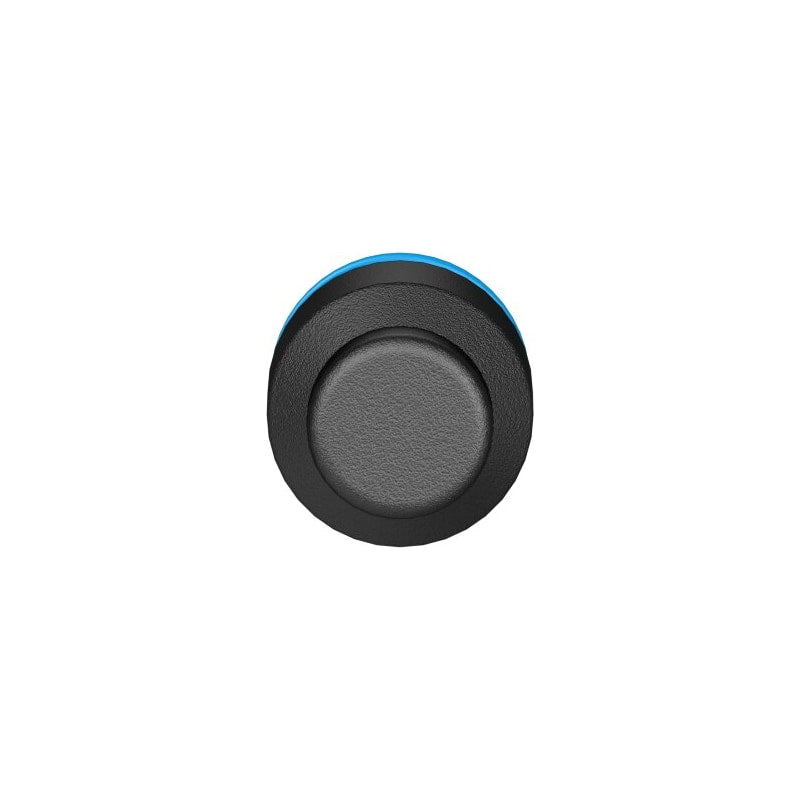

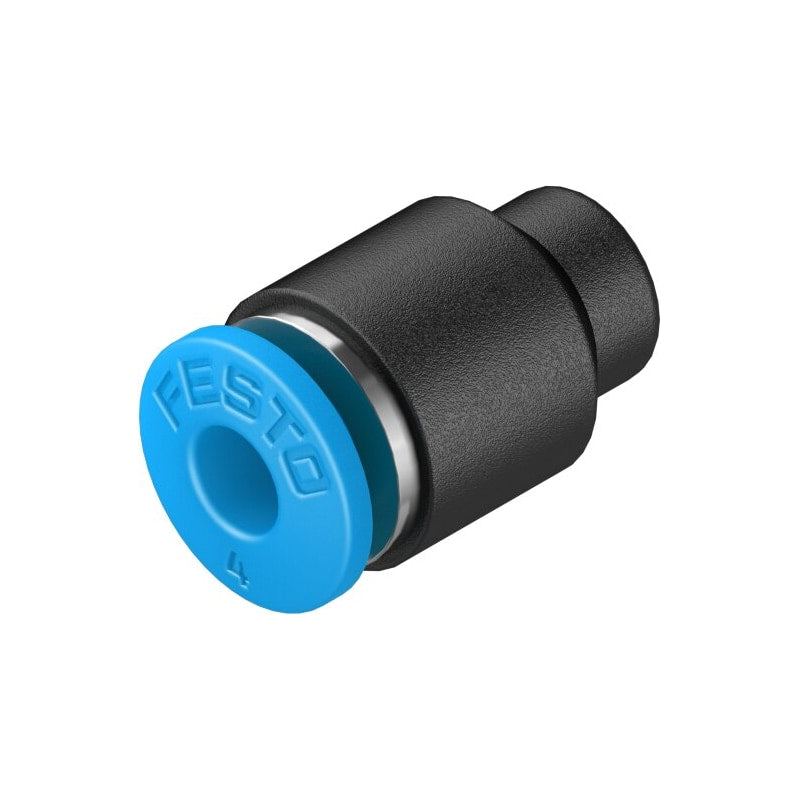

Push-in cap
QSC-3/16-U push-in cap
153829
GTIN 4052568311001
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 3/16"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
Regular price
$1.62
Unit price
QSC-3/16-U push-in cap is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSC-3/16-U push-in cap
Regular price
$1.62
Unit price
QSC-3/16-U push-in cap is backordered and will ship as soon as it is back in stock.
push-in cap QSC-3/16-U Size=Standard, Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 10 bar
| Fitting Type | Push-in Plug |
|---|---|
| Size | Standard |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| connection 1 | 3/16" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High alloy steel, non-corrosive |
