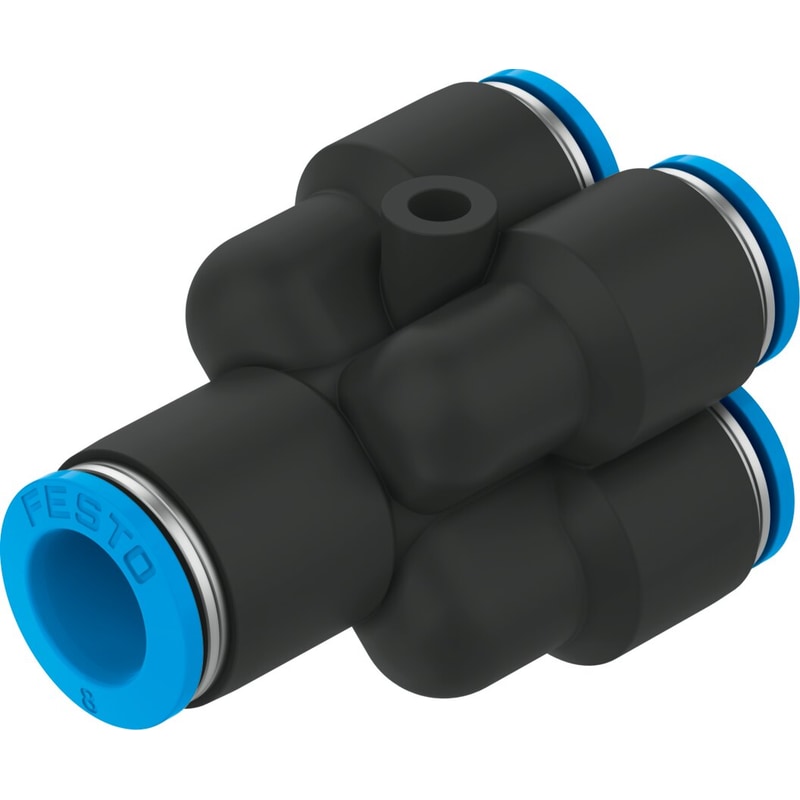

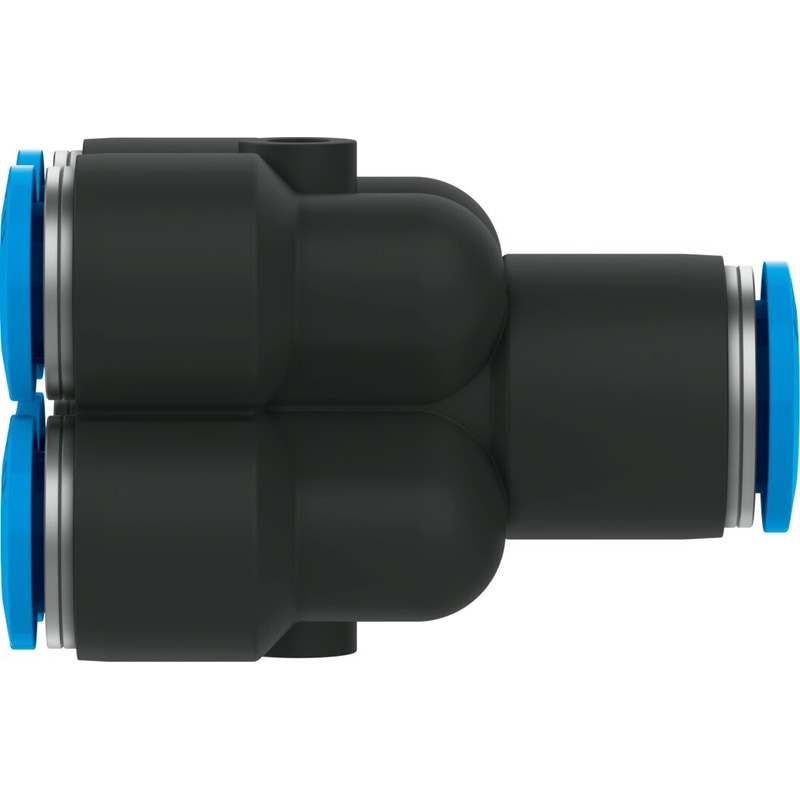

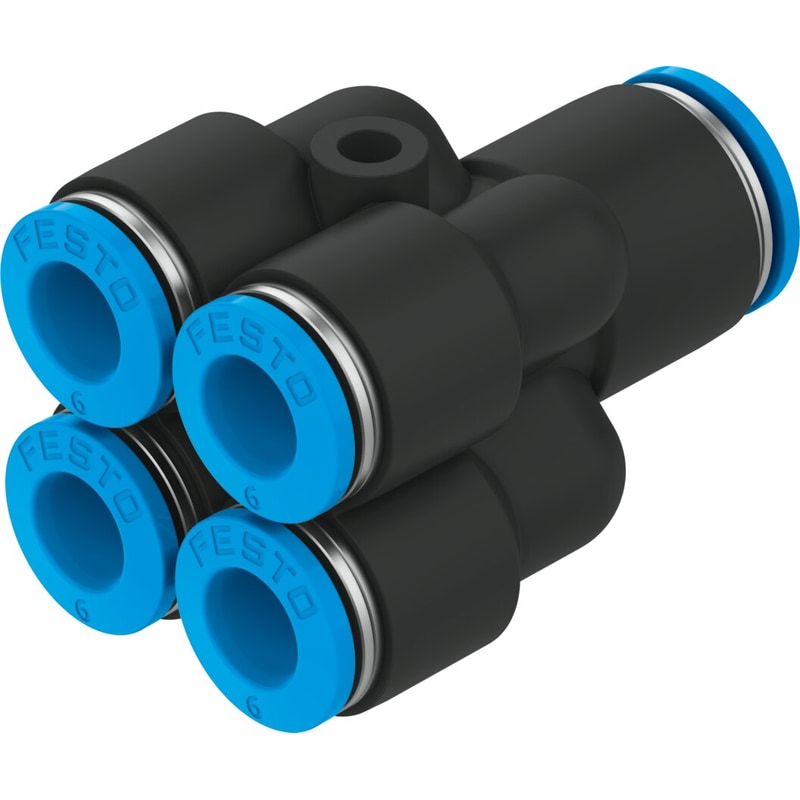

Multiple distributor
QSQ-5/16T-1/4-U
153816
GTIN 4052568310929
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 5/16"
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- No. of supply lines
- 1
- No. of outlets
- 4
Regular price
$10.79
Unit price
QSQ-5/16T-1/4-U Multiple distributor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSQ-5/16T-1/4-U
Regular price
$10.79
Unit price
QSQ-5/16T-1/4-U Multiple distributor is backordered and will ship as soon as it is back in stock.
multiple distributor QSQ-5/16T-1/4-U 360° orientable, 4 outlets. Size=Standard, Nominal size=3,2 mm, Assembly position=Any, Design structure=Push/pull principle, Container size=1
| Fitting Type | Multiple Distributor |
|---|---|
| Size | Standard |
| Nominal size | 3.2 mm |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Product weight | 10 g |
| Number of outputs | 4 |
| Number of supply lines | 1 |
| connection 1 | 5/16" outside diameter, for tubing |
| connection 2 | 1/4" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
