Multiple distributor

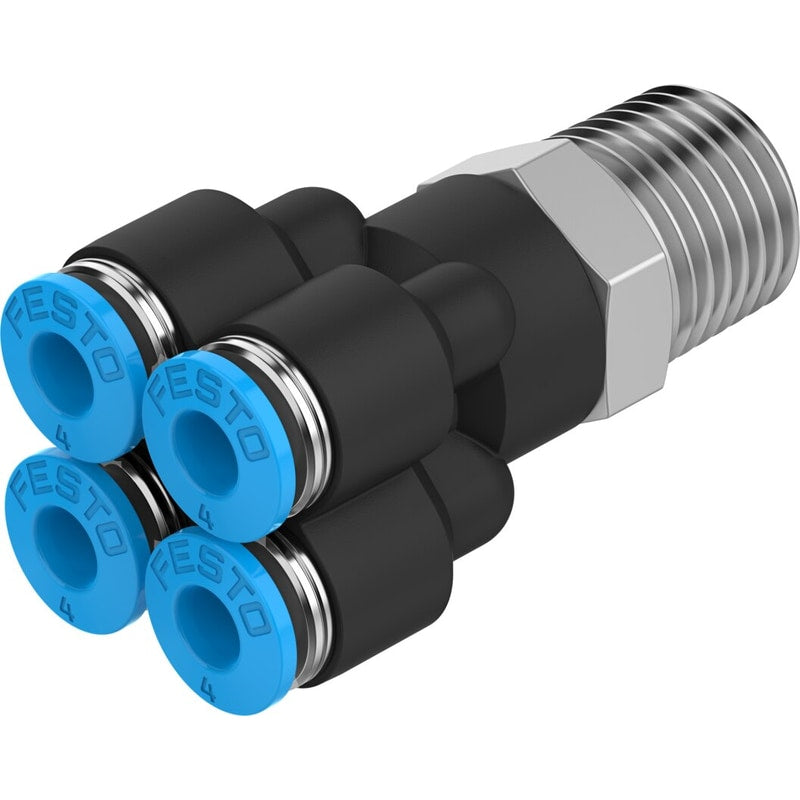

QSQ-1/8-1/4-U multiple distributor
153813
GTIN 4052568310899
Vendor Festo
- Pneumatic connection 1
- external thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- No. of supply lines
- 1
- No. of outlets
- 4
Regular price
$11.21
Unit price
QSQ-1/8-1/4-U multiple distributor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSQ-1/8-1/4-U multiple distributor
Regular price
$11.21
Unit price
QSQ-1/8-1/4-U multiple distributor is backordered and will ship as soon as it is back in stock.
multiple distributor QSQ-1/8-1/4-U 360° orientable, 4 outlets. Size=Standard, Nominal size=5,2 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | Multiple Distributor |
|---|---|
| Size | Standard |
| Nominal size | 5.2 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 8 Nm |
| Product weight | 25 g |
| Number of outputs | 4 |
| Number of supply lines | 1 |
| connection 1 | Male thread NPT1/8-27 |
| connection 2 | 1/4" outside diameter, for tubing |
| Colour of release ring | Grey |
