Push-in L-connector

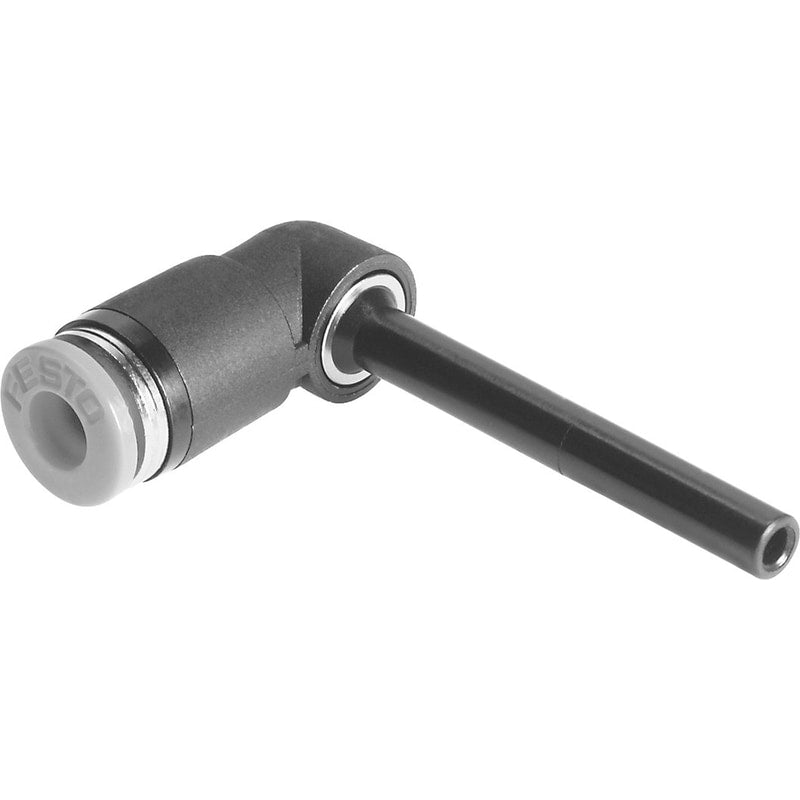

QSL-3/8H-5/16-U push-in L-connector
153658
GTIN 4052568310455
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 3/8"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/16"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
- Nominal width
- 4.9 mm
Regular price
$6.26
Unit price
QSL-3/8H-5/16-U push-in L-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSL-3/8H-5/16-U push-in L-connector
Regular price
$6.26
Unit price
QSL-3/8H-5/16-U push-in L-connector is backordered and will ship as soon as it is back in stock.
push-in L-connector QSL-3/8H-5/16-U with push-in sleeve. Size=Standard, Nominal size=4,9 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Plug-in Elbow |
|---|---|
| Size | Standard |
| Nominal size | 4.9 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Product weight | 7.8 g |
| connection 1 | Push-in sleeve QS-3/8" |
| connection 2 | 5/16" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
