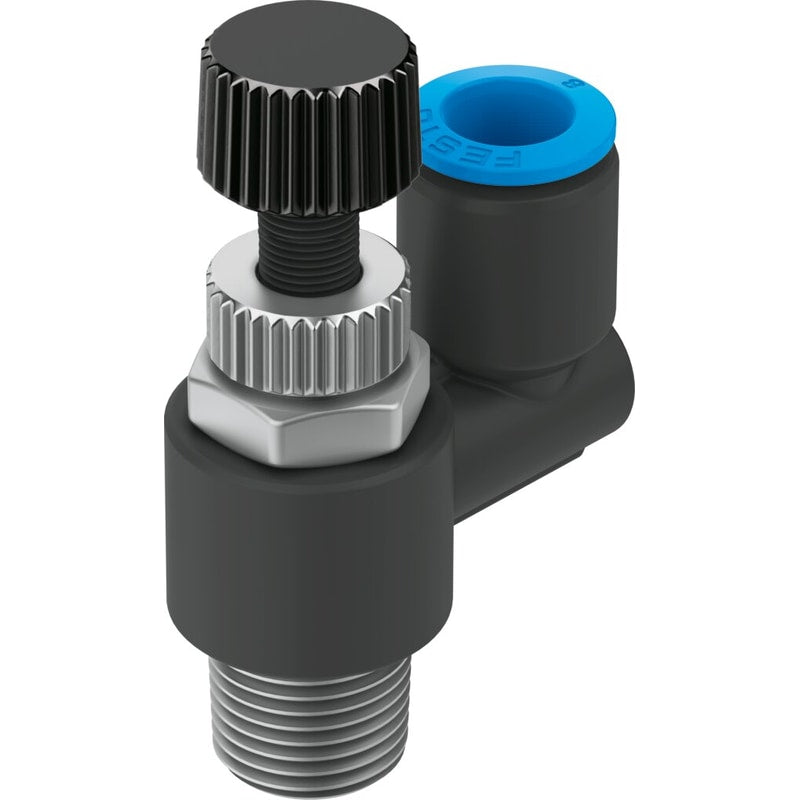

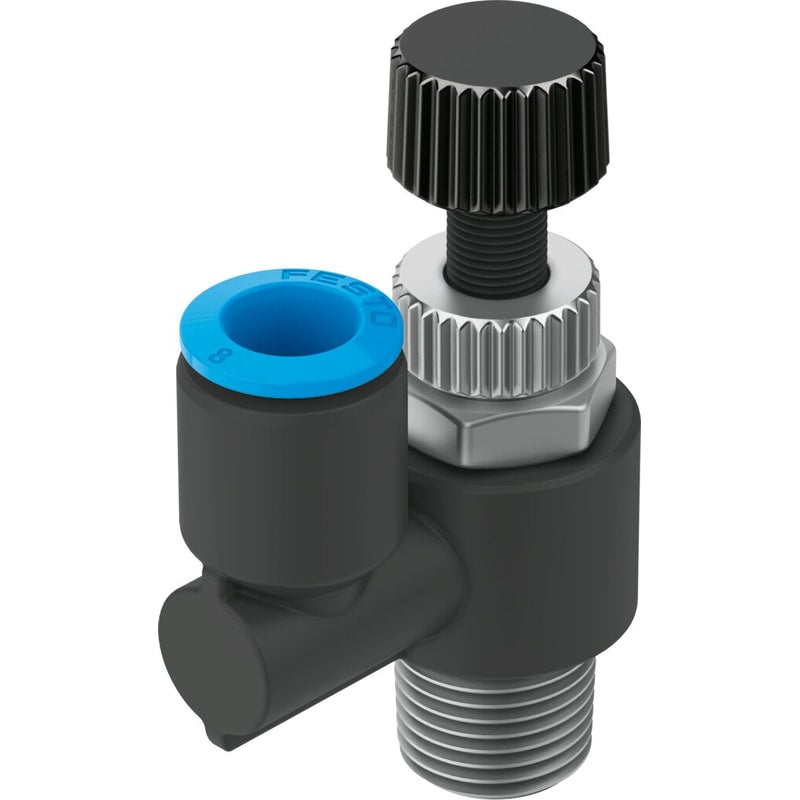

Differential pressure regulator
LRL-M5-QS-6
153512
GTIN 4052568070878
Vendor Festo
- Pressure regulation range
- 2 bar - 6 bar
- Nominal flow rate, closed
- 30 l/min
- Nominal flow rate, open
- 30 l/min
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- QS-6
Regular price
$57.26
Unit price
LRL-M5-QS-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LRL-M5-QS-6
Regular price
$57.26
Unit price
LRL-M5-QS-6 is backordered and will ship as soon as it is back in stock.
| Type code | LRL |
|---|---|
| Controller function | With return flow functionDifferential pressure constant |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | QS-6 |
| Type of mounting | Screw-in |
| Nominal flow rate, open | 30 l/min |
| Pressure regulation range | 2 bar ... 6 bar |
| Inlet pressure 1 | 0 bar ... 9 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Housing material | PBT-reinforced |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Actuator lock | Counter-locking |
| Mounting position | Any |
| Design | with continuous compressed air supplyDirectly controlled piston regulator |
| Symbol | 991535 |
| Nominal flow rate, closed | 30 l/min |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 11 g |
| Material of screwed trunnion | Nickel-platedBrass |
| Note on materials | RoHS-compliant |
| Material of threaded seal | PTFE |
