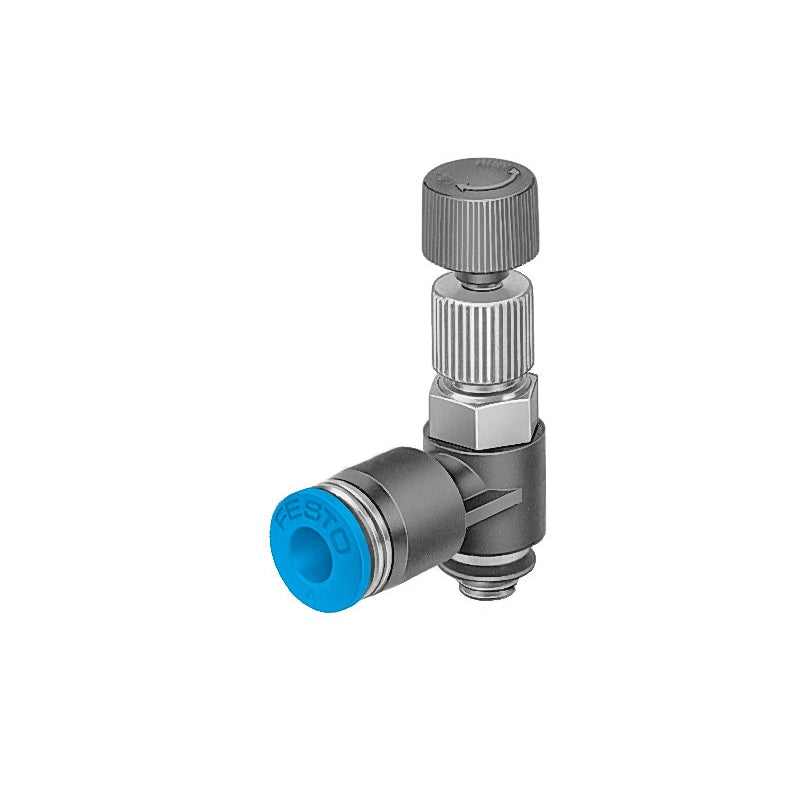

LRLL-1/4-QS-6
153502
Vendor Festo
Regular price
$71.62
Unit price
LRLL-1/4-QS-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LRLL-1/4-QS-6
Regular price
$71.62
Unit price
LRLL-1/4-QS-6 is backordered and will ship as soon as it is back in stock.
| Type code | LRLL |
|---|---|
| Controller function | Differential pressure constantWith return flow function |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | QS-6 |
| Type of mounting | Screw-in |
| Nominal flow rate, open | 267 l/min |
| Pressure regulation range | 2 bar ... 6 bar |
| Inlet pressure 1 | 0 bar ... 9 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Housing material | PBT-reinforced |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Actuator lock | Counter-locking |
| Mounting position | Any |
| Design | Directly controlled piston regulatorwith continuous compressed air supply |
| Symbol | 991535 |
| Nominal flow rate, closed | 266 l/min |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 37 g |
| Material of screwed trunnion | Nickel-platedBrass |
| Note on materials | RoHS-compliant |
| Material of threaded seal | PTFE |
