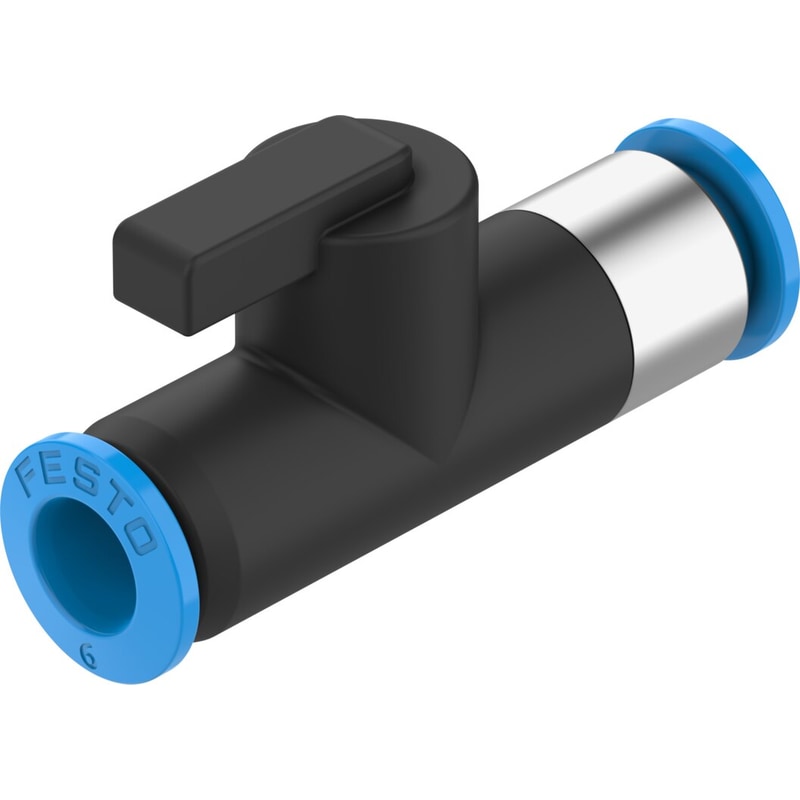

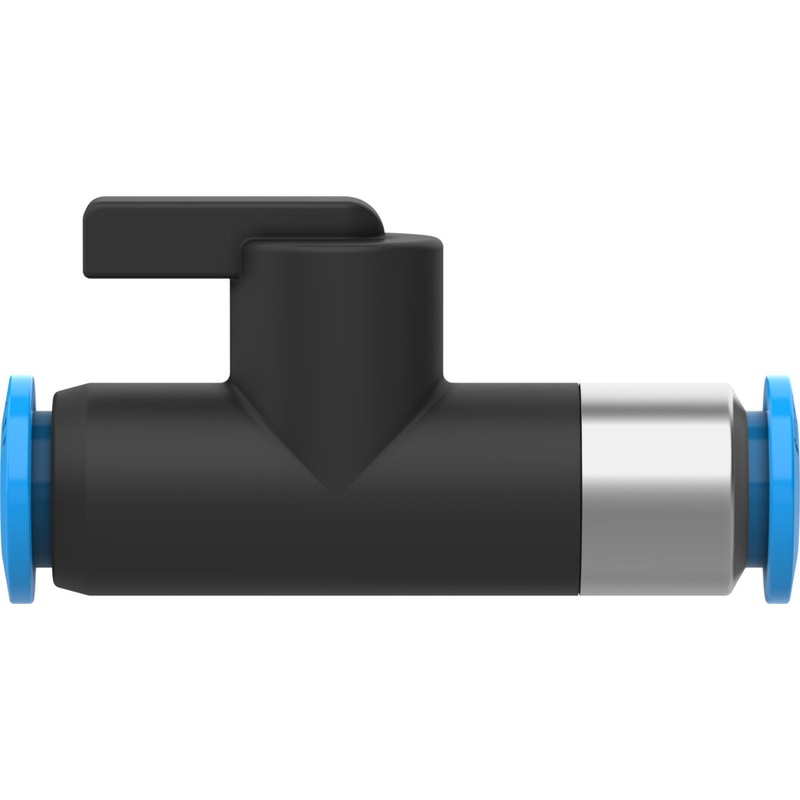

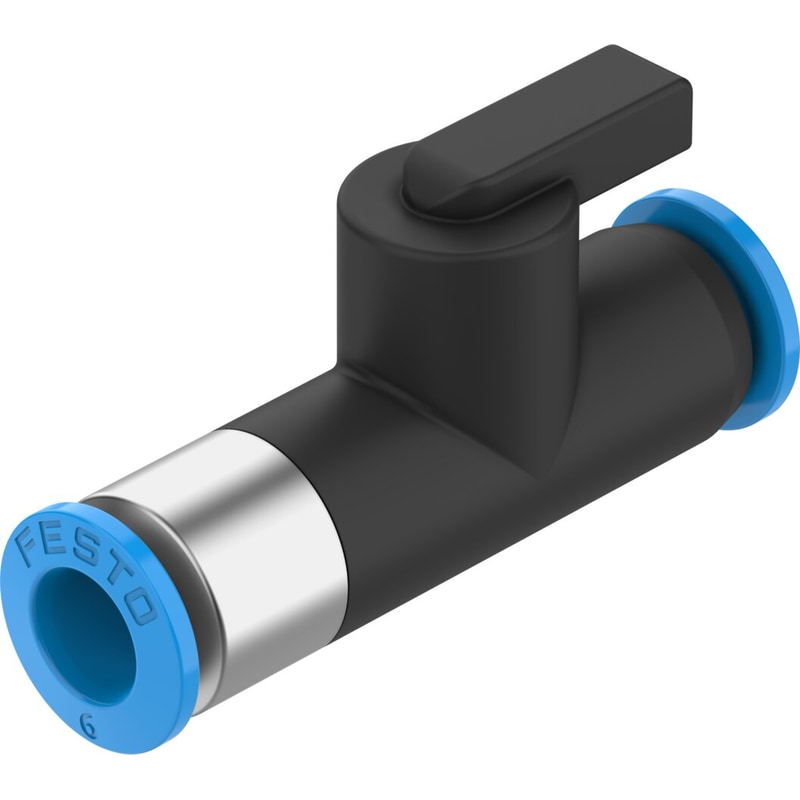

Ball valve
QH-QS-4
153483
GTIN 4052568034993
Vendor Festo
- Valve function
- 2/2 bistable
- Pneumatic connection 1
- QS-4
- Pneumatic connection 2
- QS-4
- Normal nominal flow rate (normalized to DIN 1343)
- 148 l/min
- Operating pressure
- -1 bar - 10 bar
Regular price
$25.54
Unit price
QH-QS-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QH-QS-4
Regular price
$25.54
Unit price
QH-QS-4 is backordered and will ship as soon as it is back in stock.
| Type code | QH |
|---|---|
| Valve function | 2/2 bistable |
| Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | QS-4 |
| Actuation type | Manual |
| Type of mounting | Line installation |
| Standard nominal flow rate | 148 l/min |
| Nominal width | 2.5 mm |
| Operating pressure | -1 bar ... 10 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Sealing principle | Soft |
| Design | Ball valve |
| Symbol | 991458 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 12 g |
| Note on materials | RoHS-compliant |
