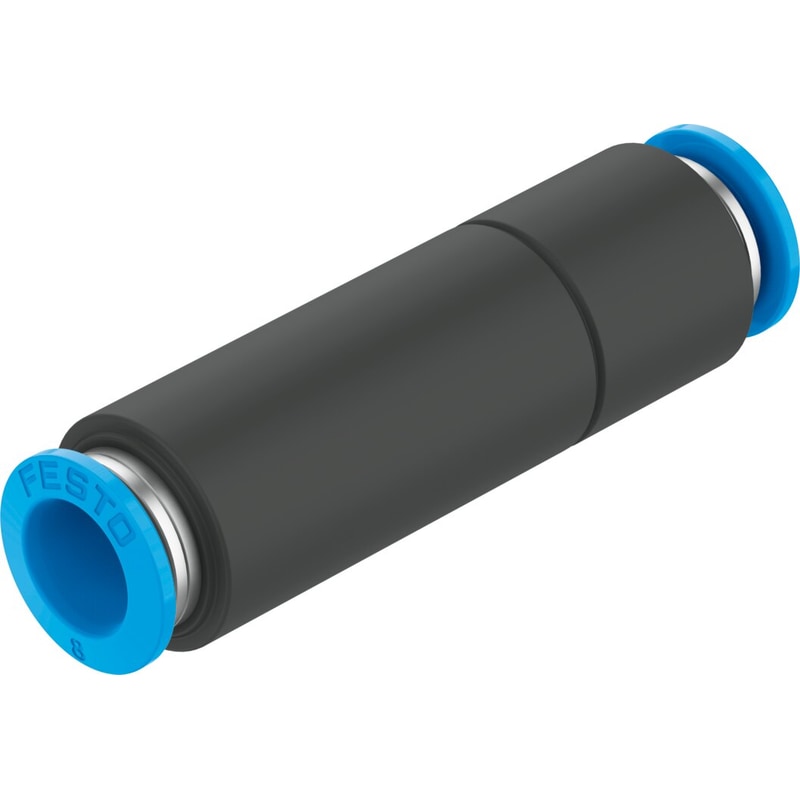

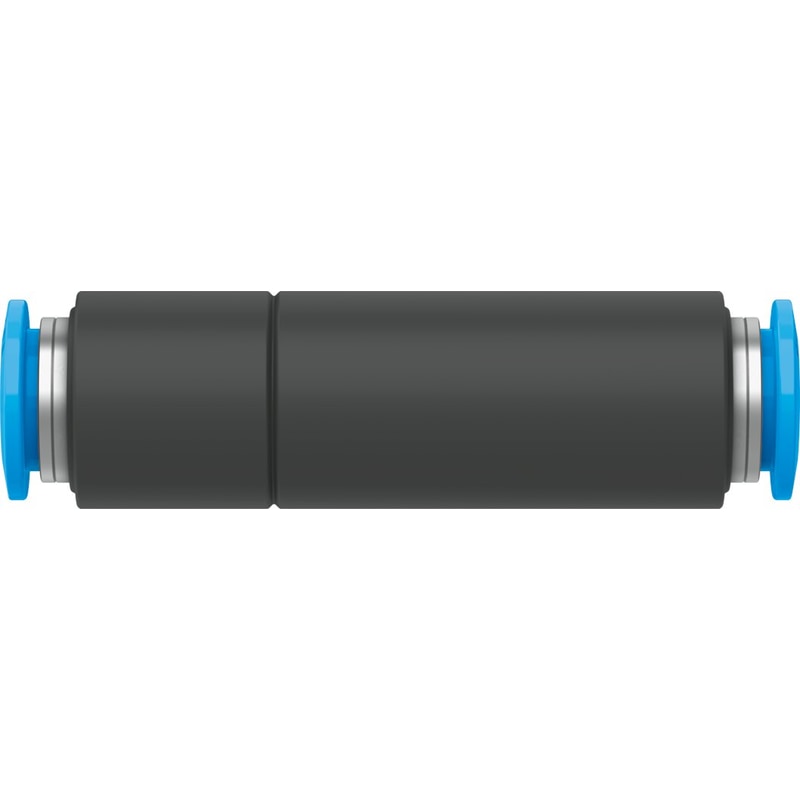

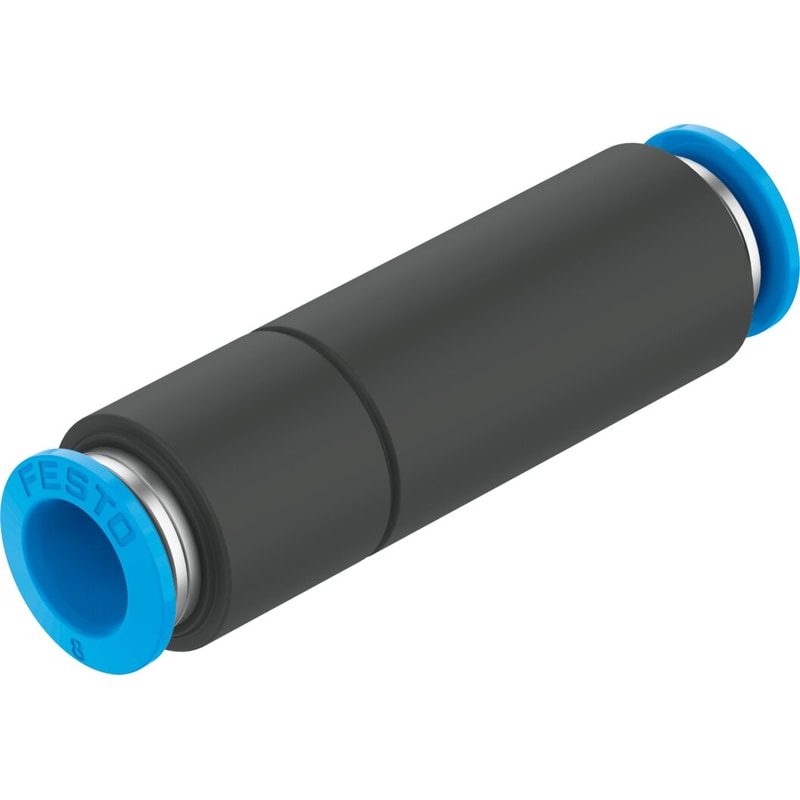

Non return valve
H-QS-8
153464
GTIN 4052568011413
Vendor Festo
- Valve function
- Non-return function
- Pneumatic connection 1
- QS-8
- Pneumatic connection 2
- QS-8
- Operating pressure
- -1 bar - 10 bar
- Housing material
- Aluminum, anodized
Regular price
$51.48
Unit price
H-QS-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
H-QS-8
Regular price
$51.48
Unit price
H-QS-8 is backordered and will ship as soon as it is back in stock.
| Type code | H |
|---|---|
| Housing colour | Black |
| Valve function | Non-return function |
| Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | QS-8 |
| Type of mounting | Line installation |
| Standard nominal flow rate | 681 l/min |
| Operating pressure | -1 bar ... 10 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Housing material | Aluminum, anodized |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Symbol | 991455 |
| Min. differential pressure, opening | 0.1 bar |
| Min. differential pressure, closing | 0.2 bar |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 21 g |
| Note on materials | RoHS-compliantFree of copper and PTFE |
