Air solenoid valve
MVH-5/3G-3/8-S-B
15346
GTIN 4052568112776
Vendor Festo
- Valve function
- 5/3, closed
- Normal nominal flow rate (normalized to DIN 1343)
- 2200 l/min
- Pneumatic connection 1
- G3/8
- Actuation type
- Electrical
Regular price
$784.37
Unit price
MVH-5/3G-3/8-S-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MVH-5/3G-3/8-S-B
Regular price
$784.37
Unit price
MVH-5/3G-3/8-S-B is backordered and will ship as soon as it is back in stock.

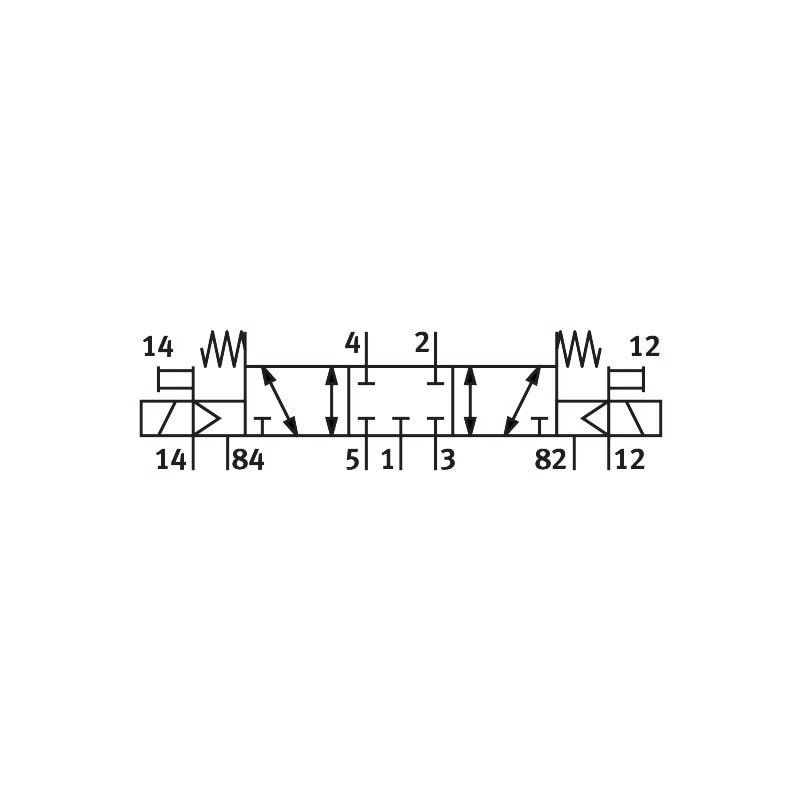

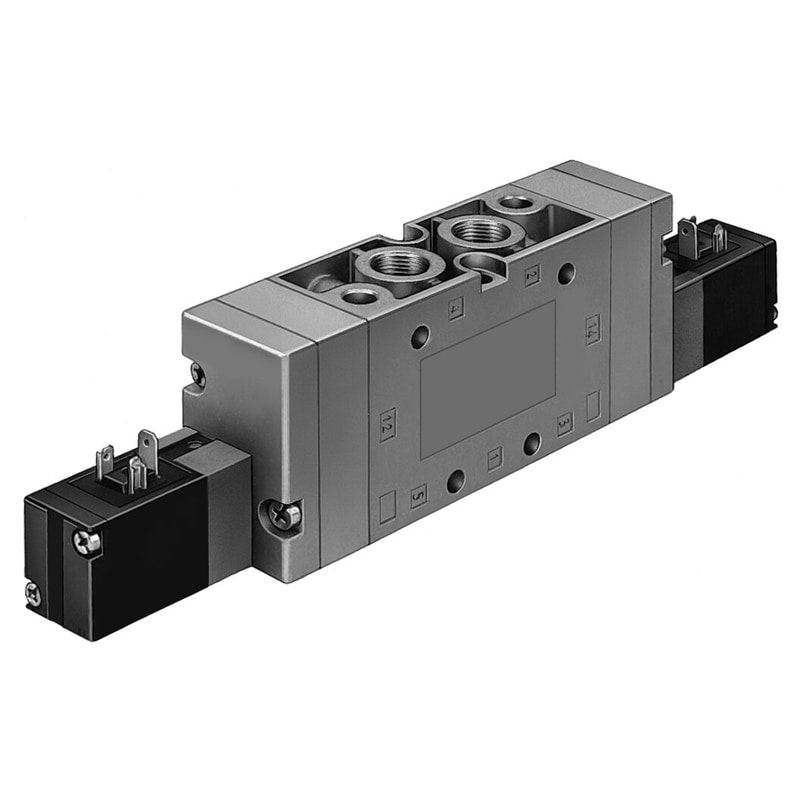

solenoid valve MVH-5/3G-3/8-S-B With solenoid coil and manual override, without plug socket. Valve function=5/3 closed, Type of actuation=electrical, Width=40 mm, Standard nominal flow rate=2200 l/min, Operating pressure=-0,9 - 10 bar
| Valve function | 5/3 closed |
|---|---|
| Type of actuation | electrical |
| Width | 40 mm |
| Standard nominal flow rate | 2,200 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Nominal size | 12 mm |
| Grid dimension | 41 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | Pushing |
