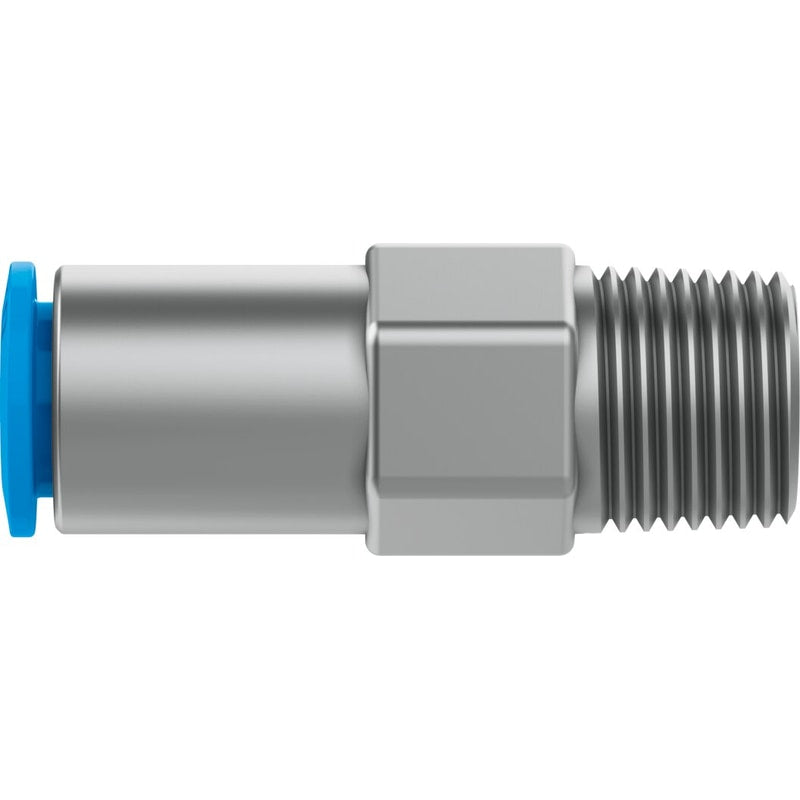

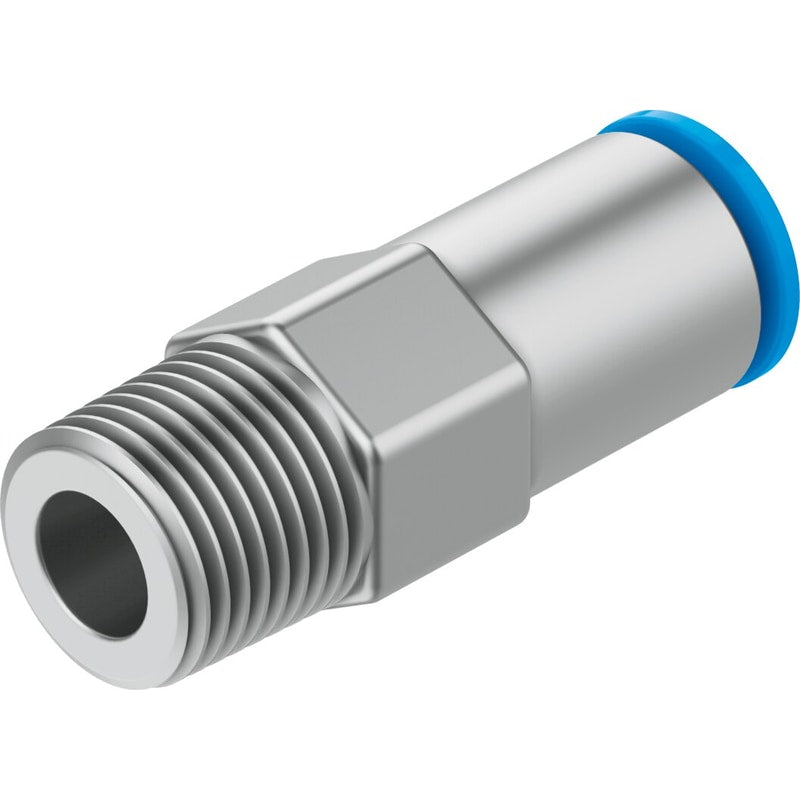

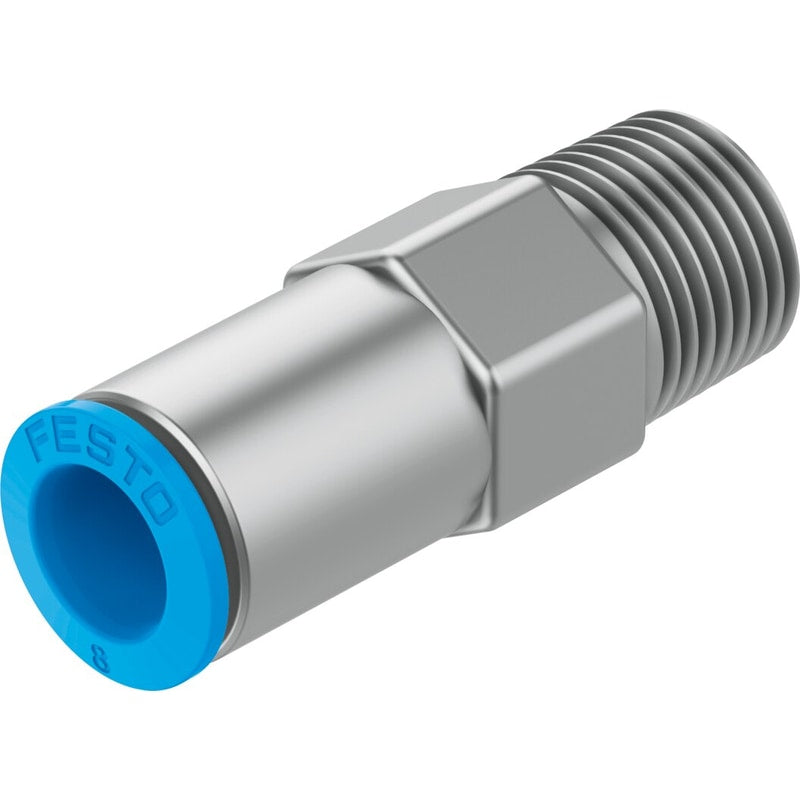

Non return valve
HA-1/8-QS-8
153452
GTIN 4052568034832
Vendor Festo
- Valve function
- Non-return function
- Pneumatic connection 1
- R1/8
- Pneumatic connection 2
- QS-8
- Operating pressure
- -1 bar - 10 bar
- Housing material
- Brass, nickel-plated
Regular price
$43.62
Unit price
HA-1/8-QS-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HA-1/8-QS-8
Regular price
$43.62
Unit price
HA-1/8-QS-8 is backordered and will ship as soon as it is back in stock.
| Type code | HA |
|---|---|
| Valve function | Non-return function |
| Pneumatic connection 1 | R1/8 |
| Pneumatic connection 2 | QS-8 |
| Type of mounting | Screw-in |
| Standard nominal flow rate | 331 l/min |
| Operating pressure | -1 bar ... 10 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Housing material | Brass, nickel-plated |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Symbol | 991455 |
| Min. differential pressure, opening | 0.1 bar |
| Min. differential pressure, closing | 0.2 bar |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 22 g |
| Note on materials | RoHS-compliant |
