Push-in connector, self-sealing

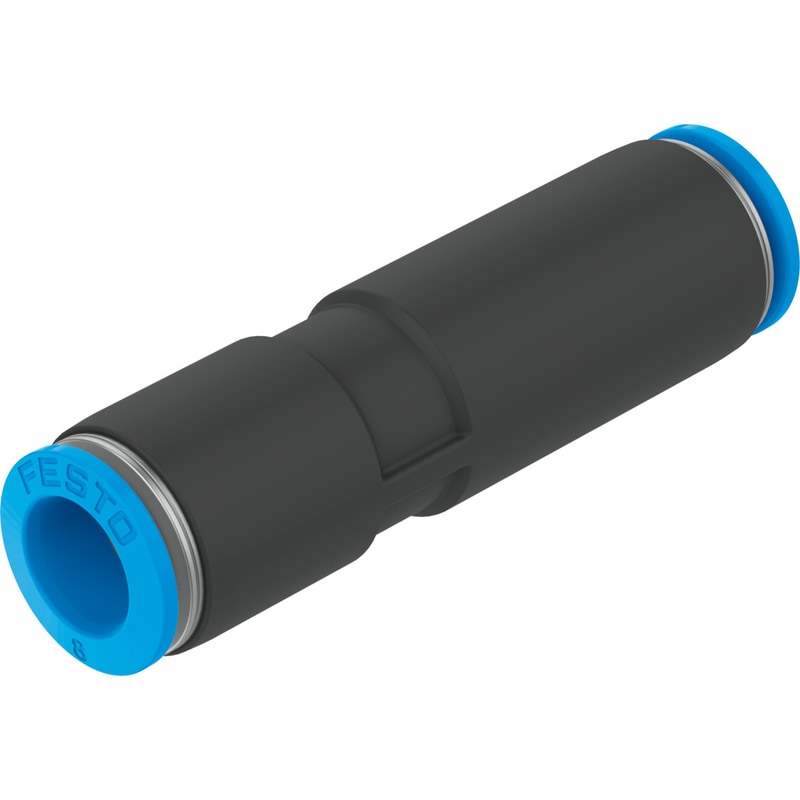

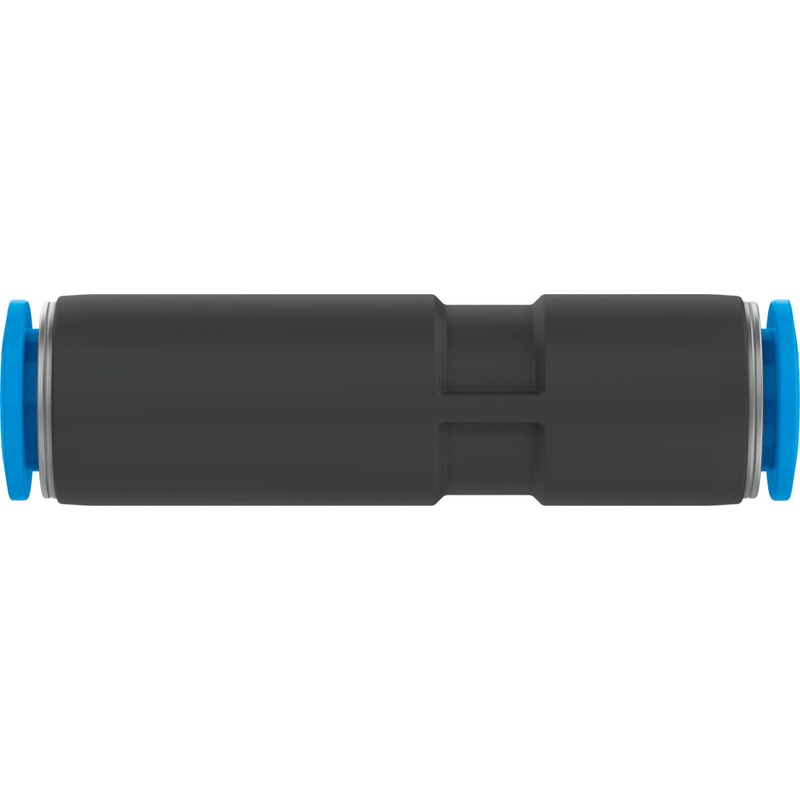

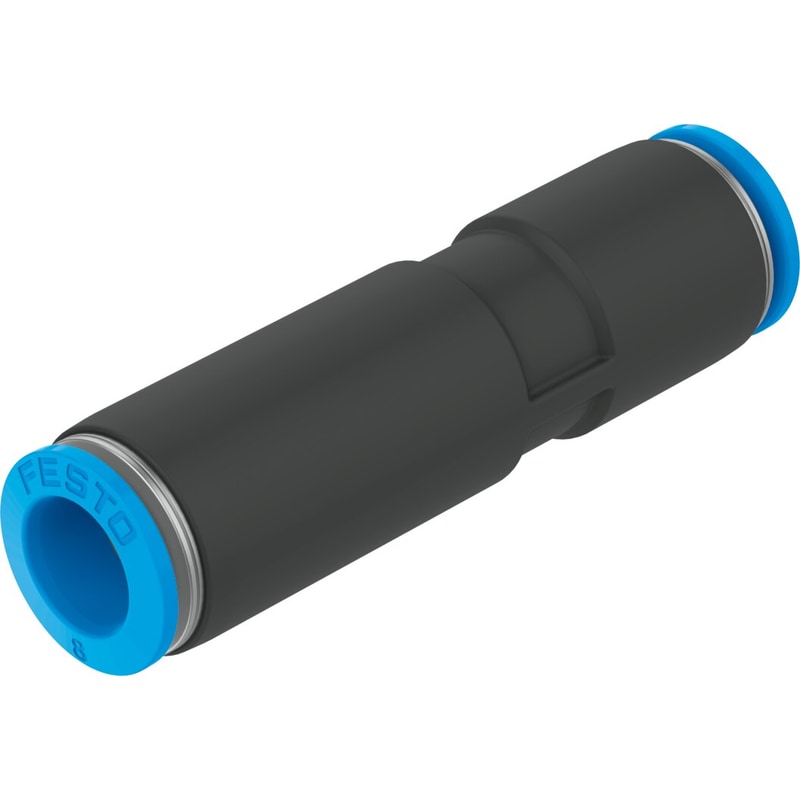

QSK-8 push-in connector, self-sealing
153441
GTIN 4052568034740
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 4.4 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
Regular price
$8.94
Unit price
QSK-8 push-in connector, self-sealing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSK-8 push-in connector, self-sealing
Regular price
$8.94
Unit price
QSK-8 push-in connector, self-sealing is backordered and will ship as soon as it is back in stock.
push-in connector, self-sealing QSK-8 Size=Standard, Nominal size=4,4 mm, Approved tubing type=(* PAN-, * PAN-MF-, * PAN-R-, * PAN-V0-, * PEN-, * PFAN-, * PLN-, * PTFEN-, * PUN-, * PUN-CM-, * PUN-DUO-, * PUN-H-, * PUN-H-DUO-, * PUN-S-, * PUN-S-DUO-, * PUN-V0-), Tubing insertion depth=18,5 mm, Assembly position=Any
| Fitting Type | Self-Closing Union |
|---|---|
| Size | Standard |
| Nominal size | 4.4 mm |
| Approved tubing type | PAN-PAN-MF-PAN-R-PAN-V0-PEN-PFAN-PLN-PTFEN-PUN-PUN-CM-PUN-DUO-PUN-H-PUN-H-DUO-PUN-S-PUN-S-DUO-PUN-V0- |
| Tubing insertion depth | 18.5 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 16 g |
| connection 1 | 8mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 8 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
