Push-in fitting, self-sealing

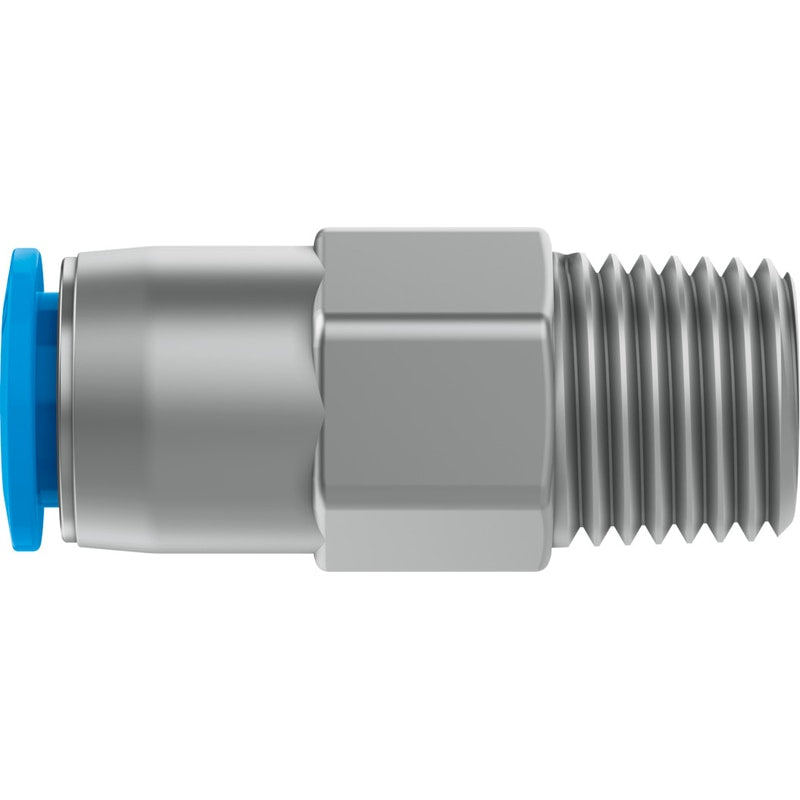

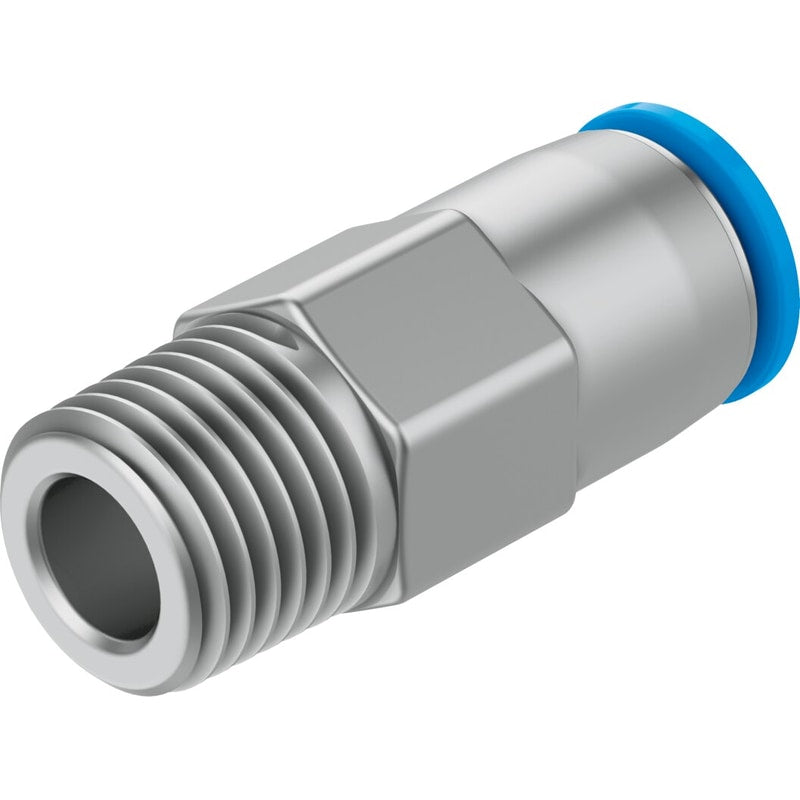

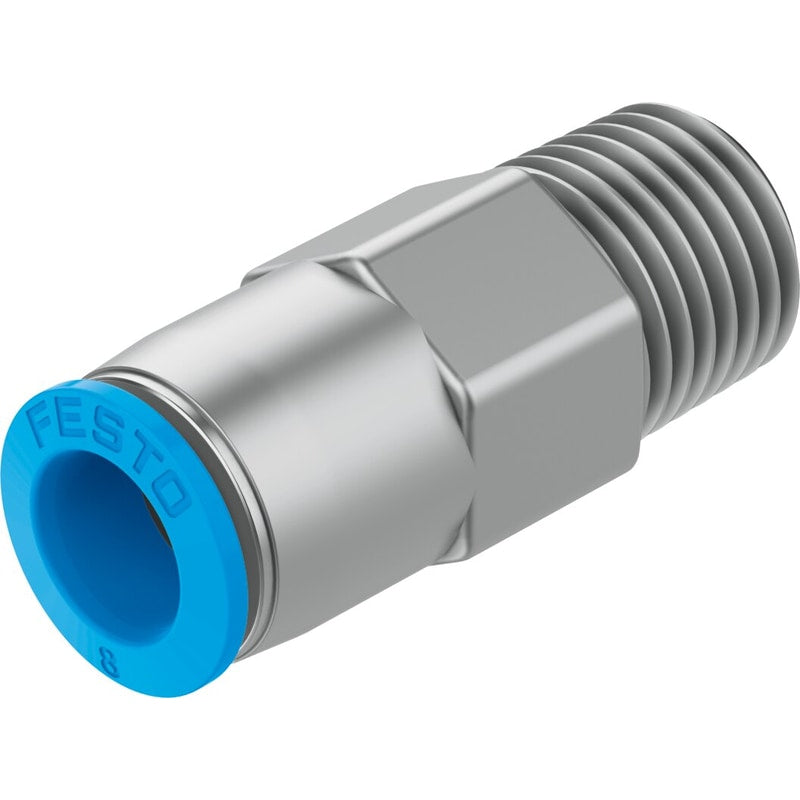

QSK-1/4-8 push-in fitting, self-sealing
153423
GTIN 4052568034566
Vendor Festo
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 4.3 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
Regular price
$7.15
Unit price
QSK-1/4-8 push-in fitting, self-sealing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSK-1/4-8 push-in fitting, self-sealing
Regular price
$7.15
Unit price
QSK-1/4-8 push-in fitting, self-sealing is backordered and will ship as soon as it is back in stock.
push-in fitting, self-sealing QSK-1/4-8 male thread with external hexagon. Size=Standard, Nominal size=4,3 mm, Approved tubing type=(* PAN-, * PAN-MF-, * PAN-R-, * PAN-V0-, * PEN-, * PFAN-, * PLN-, * PTFEN-, * PUN-, * PUN-CM-, * PUN-DUO-, * PUN-H-, * PUN-H-DUO-, * PUN-S-, * PUN-S-DUO-, * PUN-V0-), Tubing insertion depth=18,5 mm, Type of seal on screw-in stud=coating
| Fitting Type | Male Straight w/ Shut-Off |
|---|---|
| Size | Standard |
| Nominal size | 4.3 mm |
| Approved tubing type | PAN-PAN-MF-PAN-R-PAN-V0-PEN-PFAN-PLN-PTFEN-PUN-PUN-CM-PUN-DUO-PUN-H-PUN-H-DUO-PUN-S-PUN-S-DUO-PUN-V0- |
| Tubing insertion depth | 18.5 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 12 Nm |
| Product weight | 22.5 g |
| connection 1 | Male thread R1/4 |
| connection 2 | For tubing outside diameter 8 mm |
