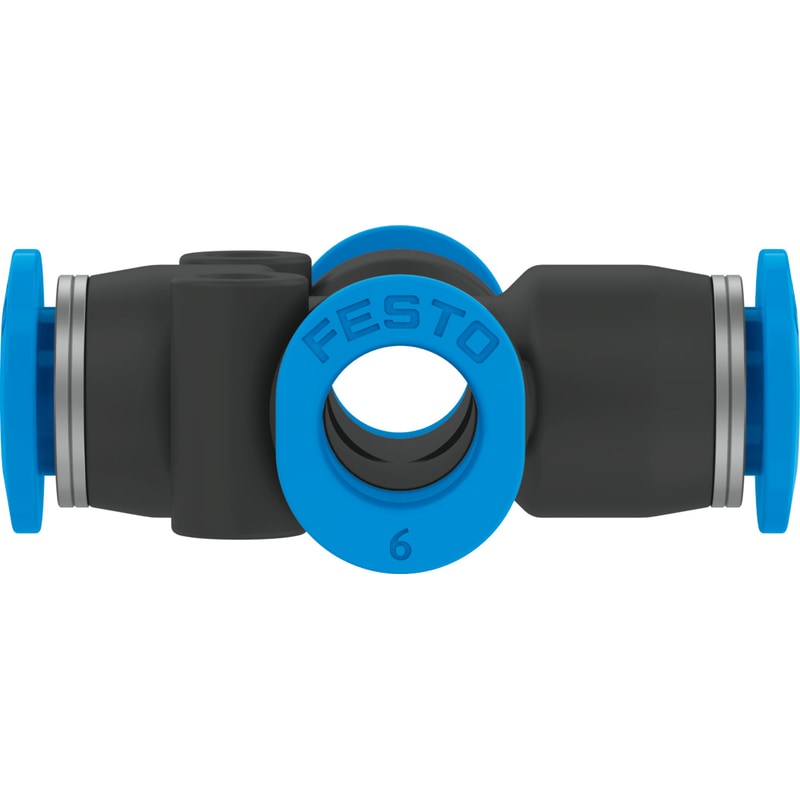

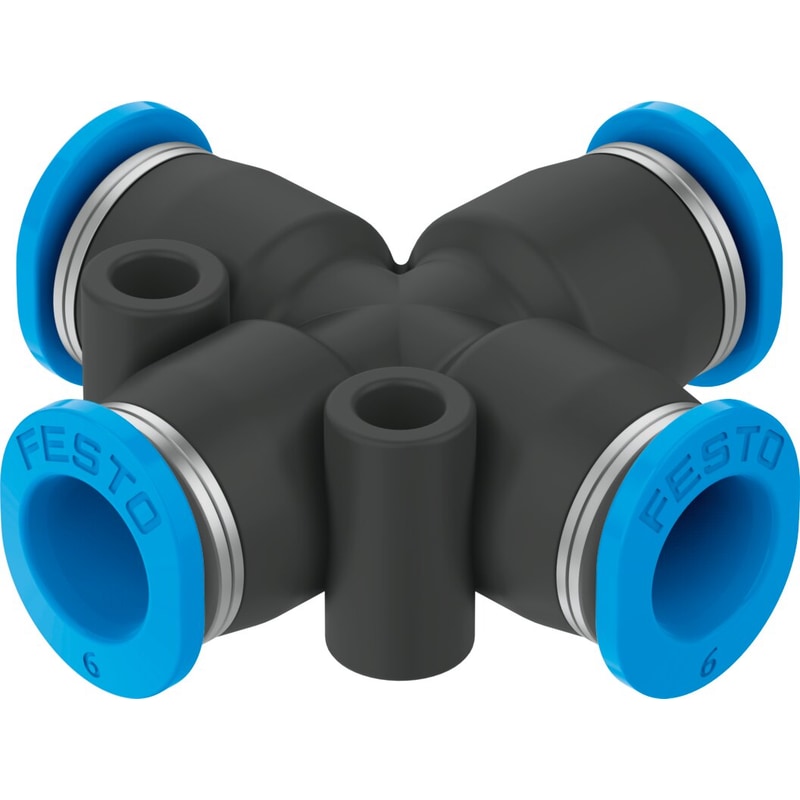

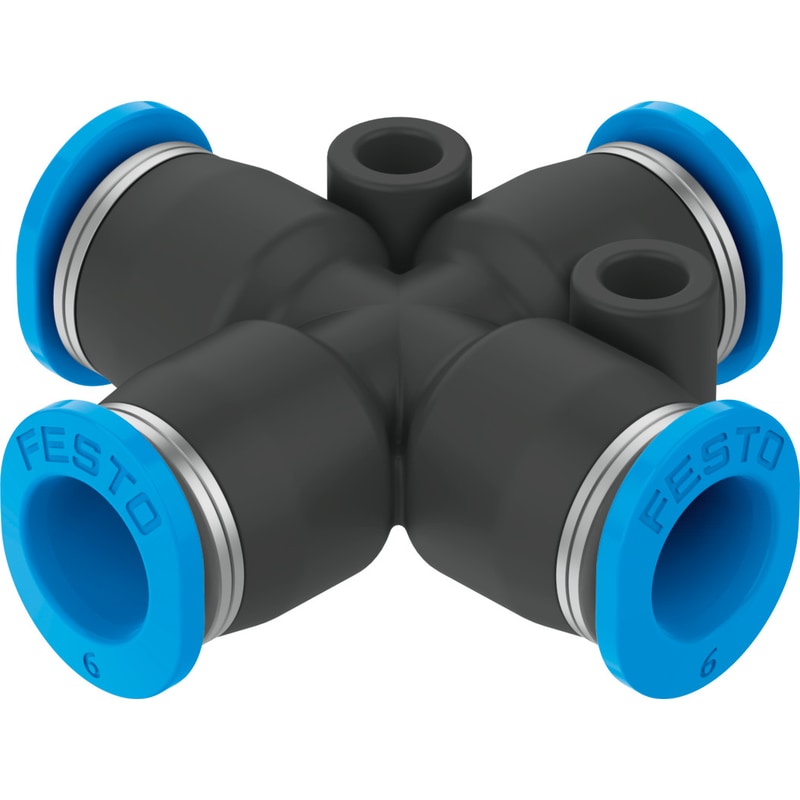

Push-in X connector
QSMX-6
153380
GTIN 4052568034382
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 3.3 mm
Regular price
$8.14
Unit price
QSMX-6 Push-in X connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSMX-6
Regular price
$8.14
Unit price
QSMX-6 Push-in X connector is backordered and will ship as soon as it is back in stock.
push-in X-connector QSMX-6 Size=Mini, Nominal size=3,3 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
| Fitting Type | Union Cross |
|---|---|
| Size | Mini |
| Nominal size | 3.3 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 5 g |
| Number of outputs | 3 |
| Number of supply lines | 1 |
| connection 1 | 6mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 6 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
