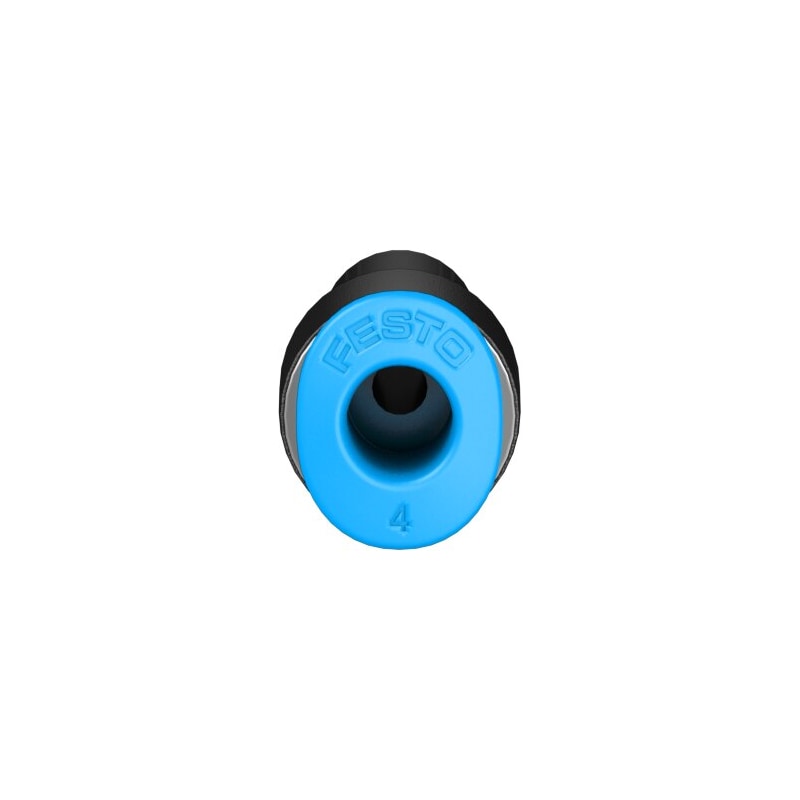

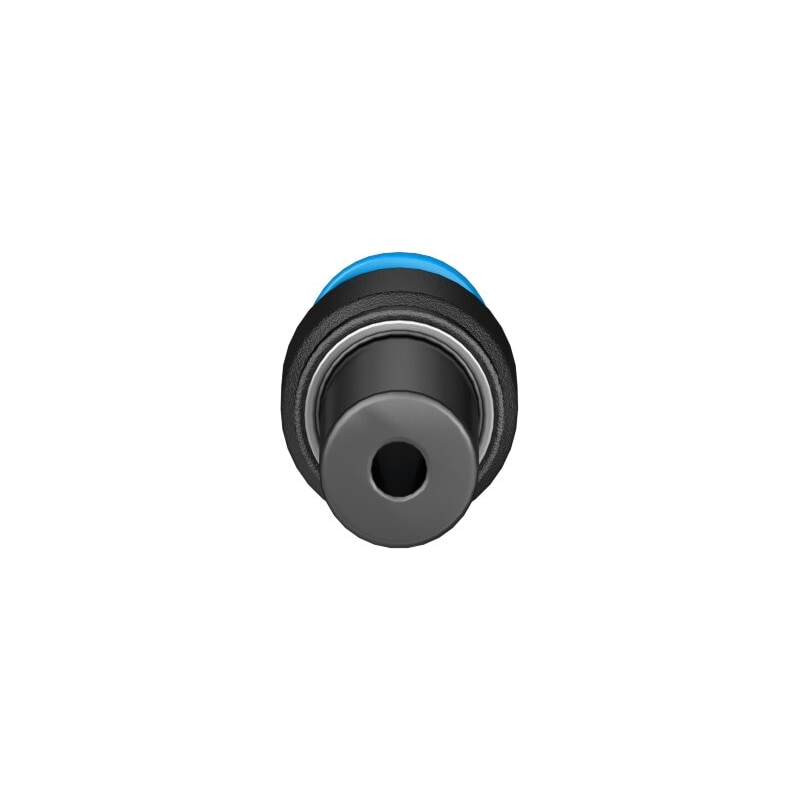

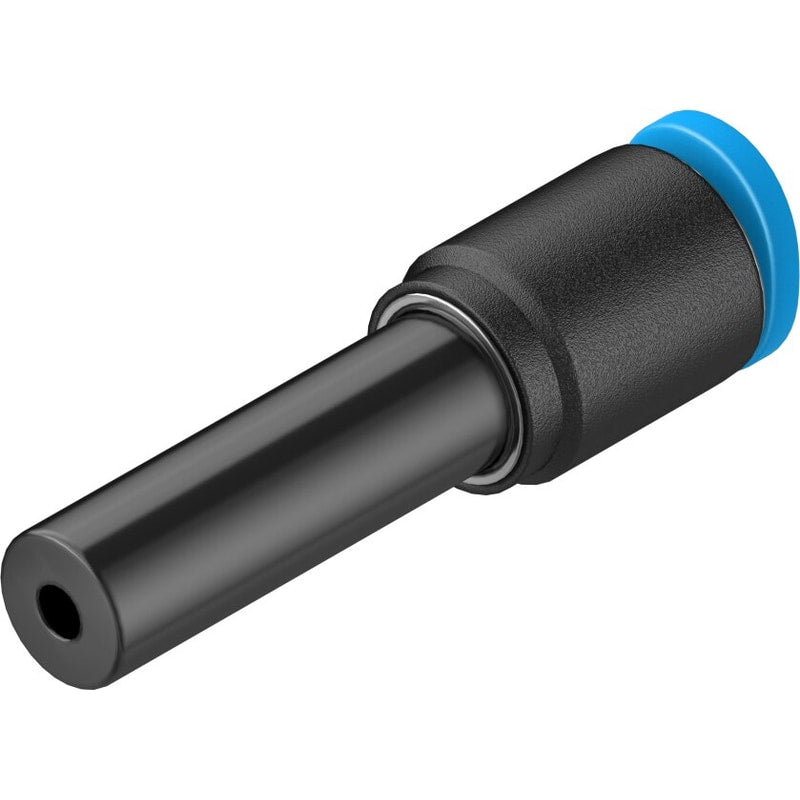

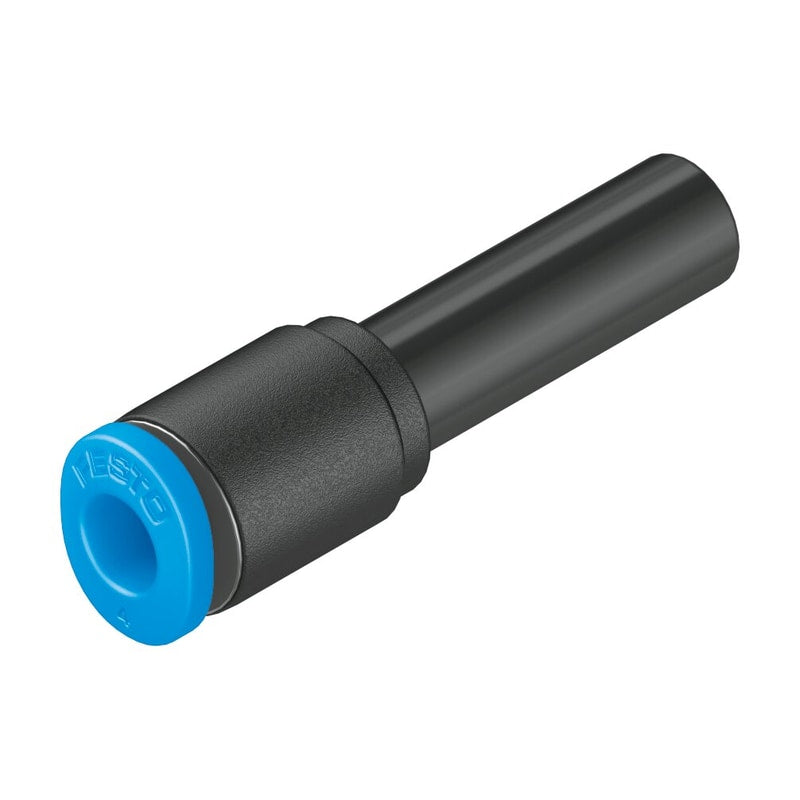

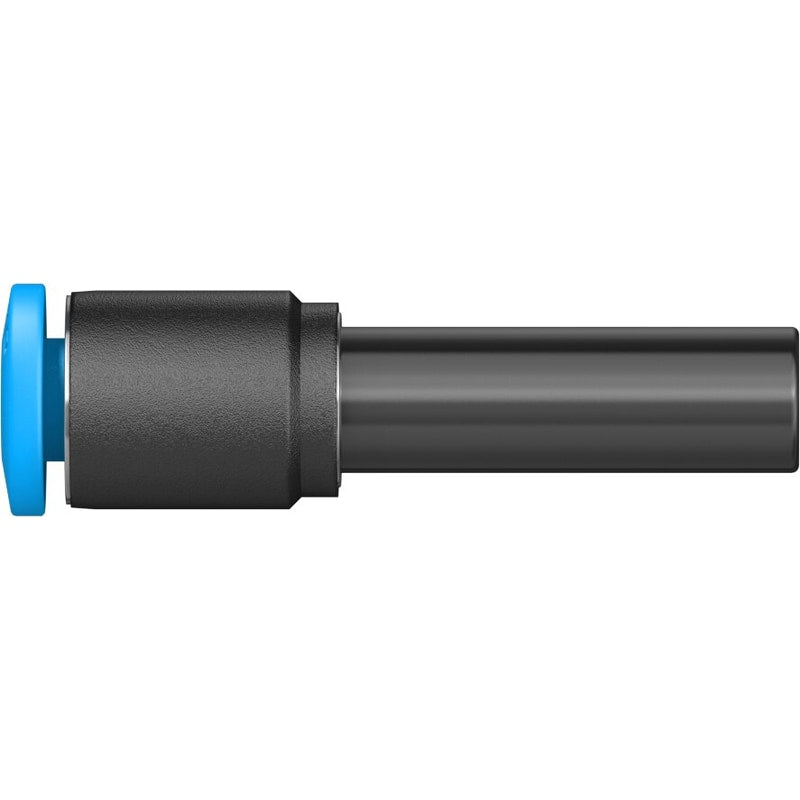

Push-in connector
QSM-6H-4
153329
GTIN 4052568033927
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 2.6 mm
Regular price
$3.56
Unit price
QSM-6H-4 Push-in connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSM-6H-4
Regular price
$3.56
Unit price
QSM-6H-4 Push-in connector is backordered and will ship as soon as it is back in stock.
push-in connector QSM-6H-4 with push-in sleeve. Size=Mini, Nominal size=2,6 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
| Fitting Type | Plug-in Union Reducer |
|---|---|
| Size | Mini |
| Nominal size | 2.6 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 2.4 g |
| connection 1 | Push-in sleeve QS-6 |
| connection 2 | For tubing outside diameter 4 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
