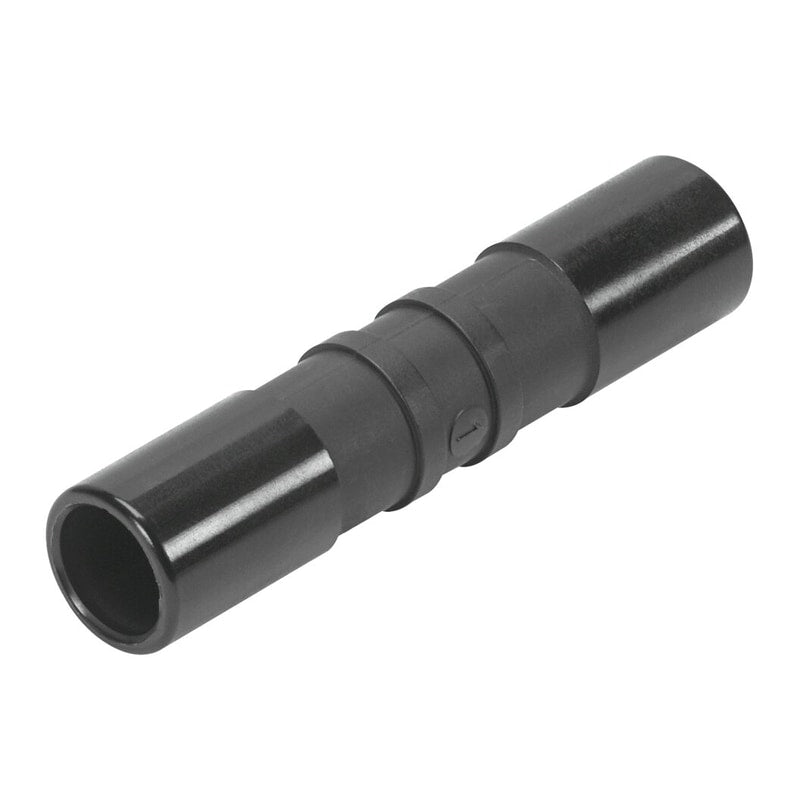

Push-in sleeve
QSH-10
153254
GTIN 4052568033316
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 10 mm
- Pneumatic connection 2
- Push-in sleeve Ø 10 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 7.5 mm
Regular price
$2.78
Unit price
QSH-10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSH-10
Regular price
$2.78
Unit price
QSH-10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
push-in sleeve QSH-10 Size=Standard, Nominal size=7,5 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
| Fitting Type | Push-in Sleeve |
|---|---|
| Size | Standard |
| Nominal size | 7.5 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 1.5 g |
| connection 1 | Push-in sleeve QS-10 |
| connection 2 | Push-in sleeve QS-10 |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
