Multiple distributor

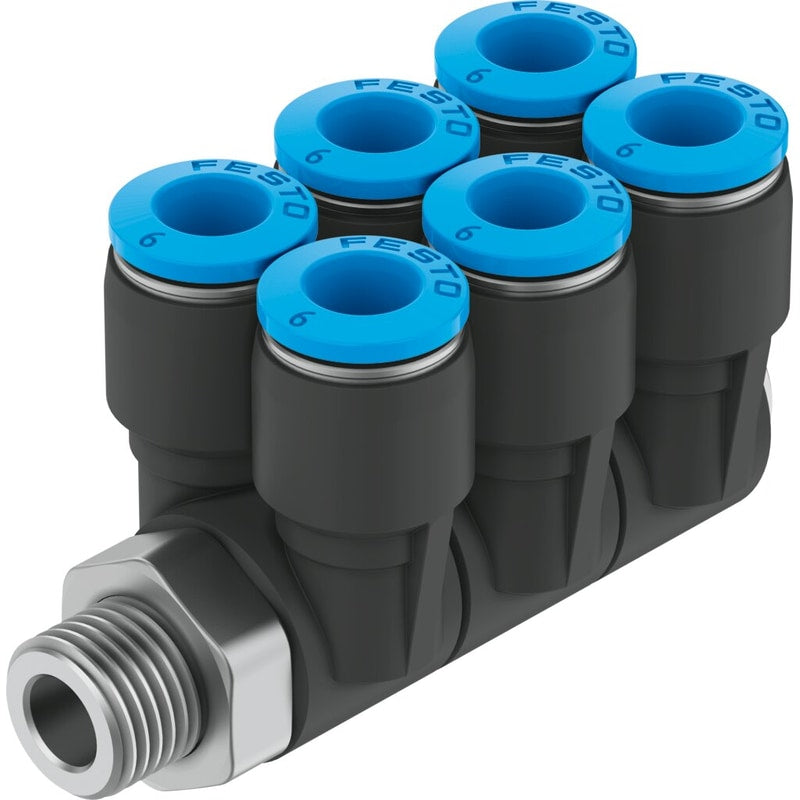

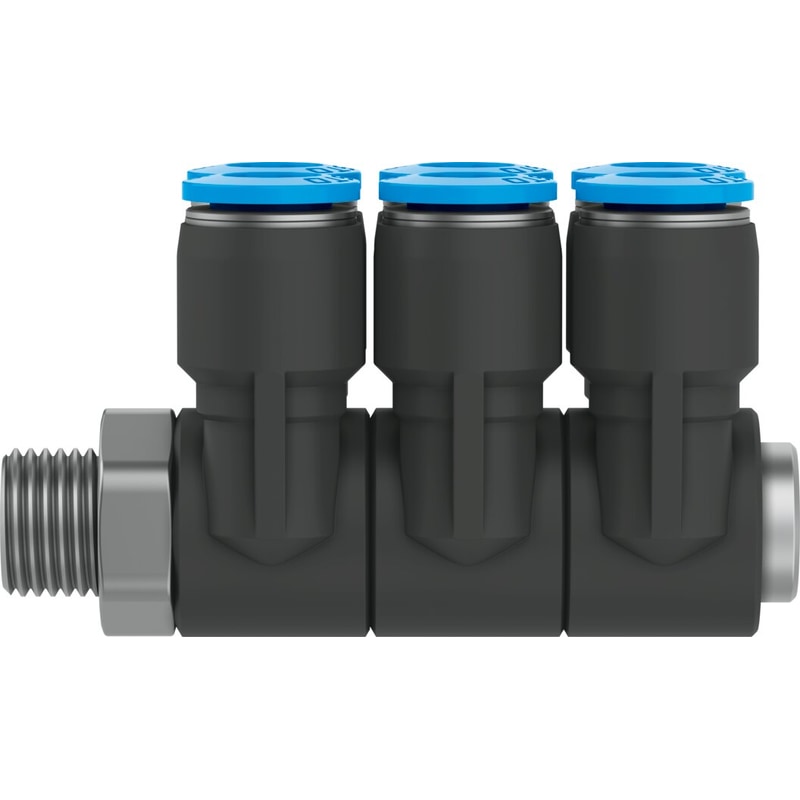

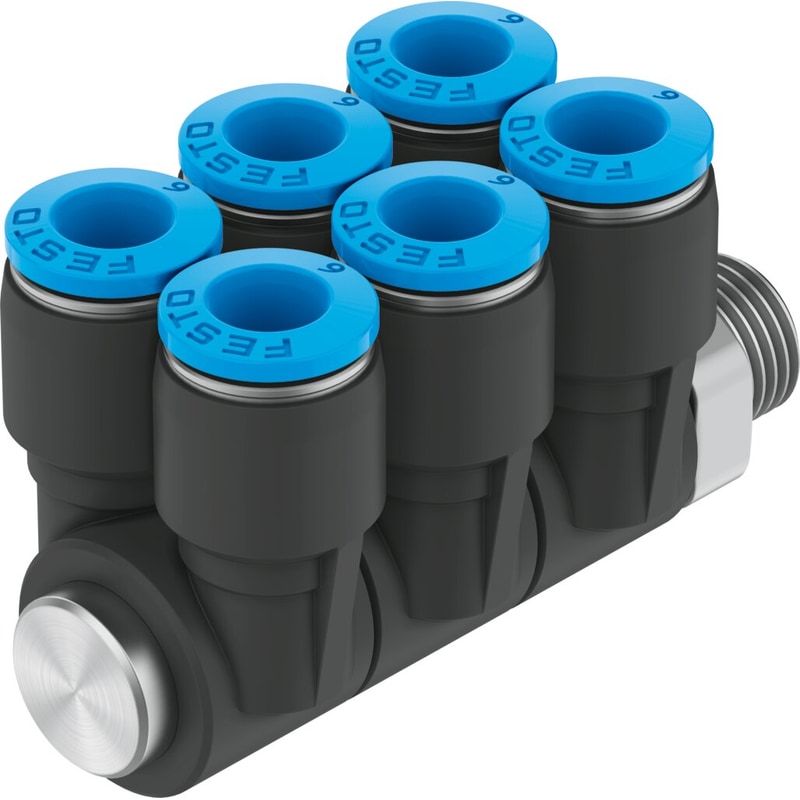

QSLV6-3/8-12 multiple distributor
153249
GTIN 4052568070526
Vendor Festo
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- No. of supply lines
- 1
- No. of outlets
- 6
Regular price
$29.92
Unit price
QSLV6-3/8-12 multiple distributor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSLV6-3/8-12 multiple distributor
Regular price
$29.92
Unit price
QSLV6-3/8-12 multiple distributor is backordered and will ship as soon as it is back in stock.
multiple distributor QSLV6-3/8-12 6-fold, 360° orientable. Size=Standard, Nominal size=6,3 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | Tripple Branch Male Banjo |
|---|---|
| Size | Standard |
| Nominal size | 6.3 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 205 g |
| Number of outputs | 6 |
| Number of supply lines | 1 |
| connection 1 | Male thread R3/8 |
| connection 2 | 12mm outside diameter, for tubing |
| Colour of release ring | blue |
